Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Battery Junction Box (BJB)
G00476648Courtesy of FORD MOTOR CO.
Fig 2: Smart Junction Box (SJB)
G00458993Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment
G00476649Courtesy of FORD MOTOR CO.

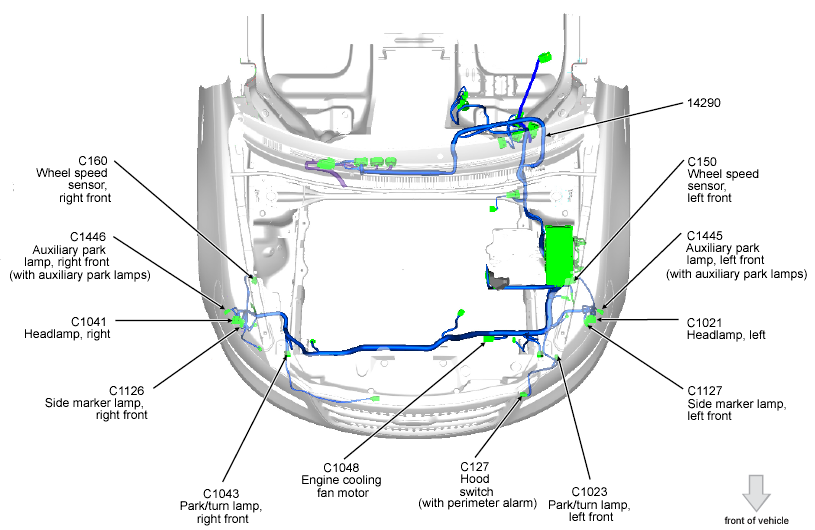

Fig 4: Engine Compartment
G00476650Courtesy of FORD MOTOR CO.
Fig 5: Engine Compartment (Non-Turbo)
G00476651Courtesy of FORD MOTOR CO.
Fig 6: Engine Compartment (Turbo)
G00476652Courtesy of FORD MOTOR CO.

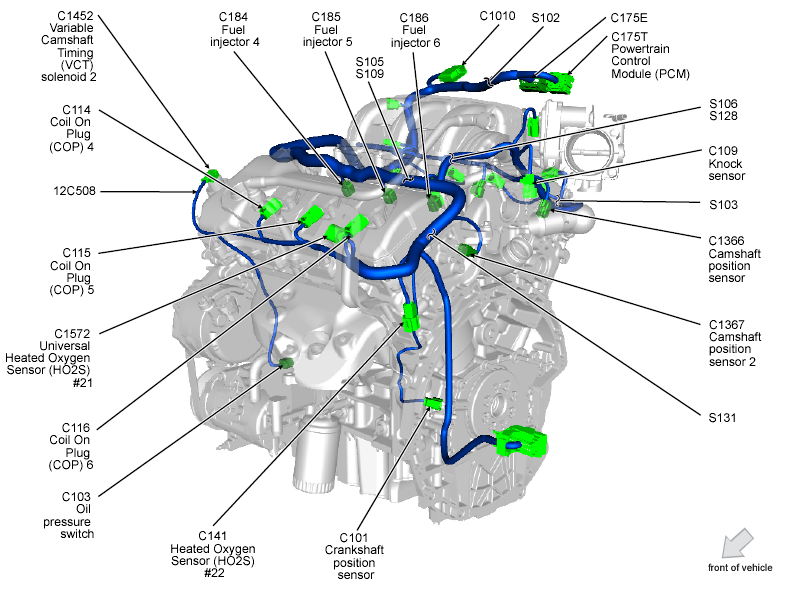

Fig 7: Left Side Of Engine (Non-Turbo)
G00476653Courtesy of FORD MOTOR CO.

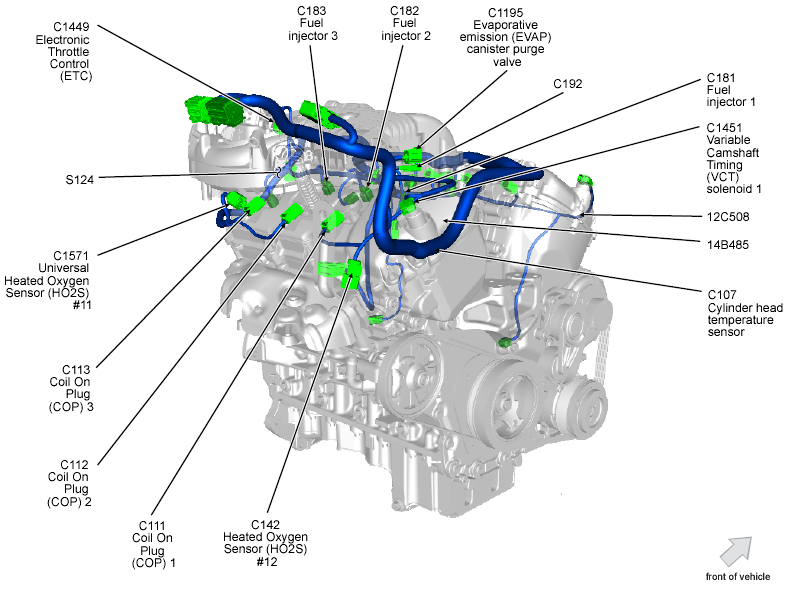

Fig 8: Right Side Of Engine (Non-Turbo)
G00476654Courtesy of FORD MOTOR CO.

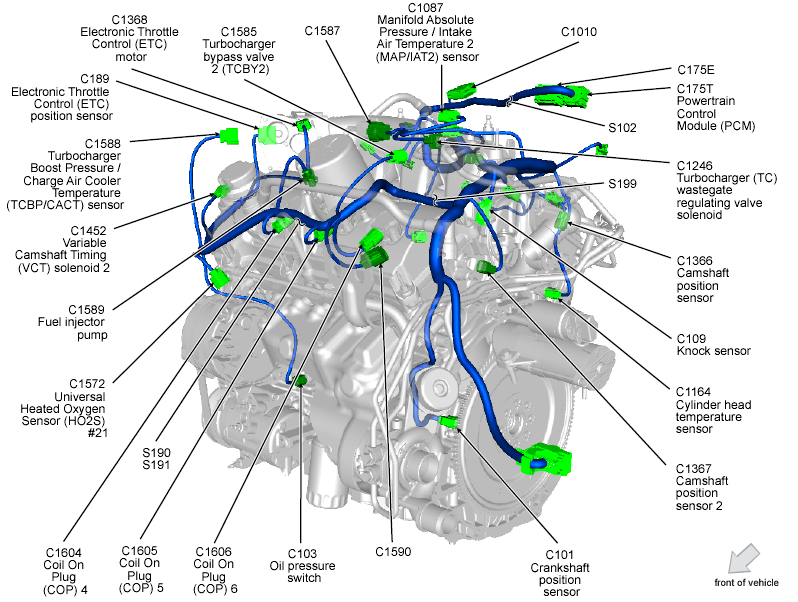

Fig 9: Left Side Of Engine (Turbo)
G00476655Courtesy of FORD MOTOR CO.

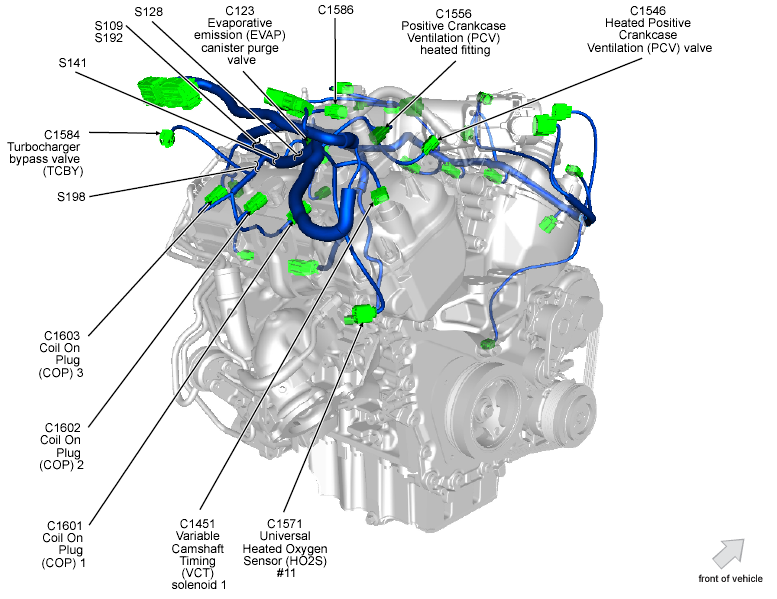

Fig 10: Right Side Of Engine (Turbo)
G00476656Courtesy of FORD MOTOR CO.

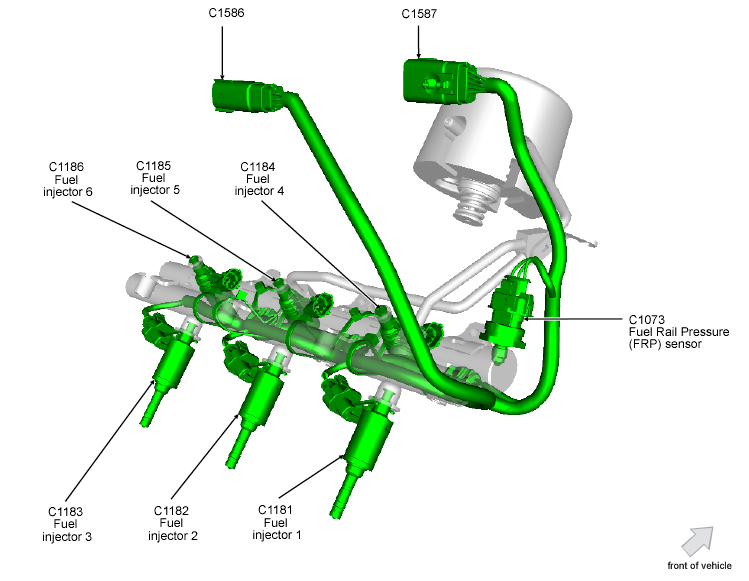

Fig 11: Fuel Injectors (Turbo)
G00476657Courtesy of FORD MOTOR CO.

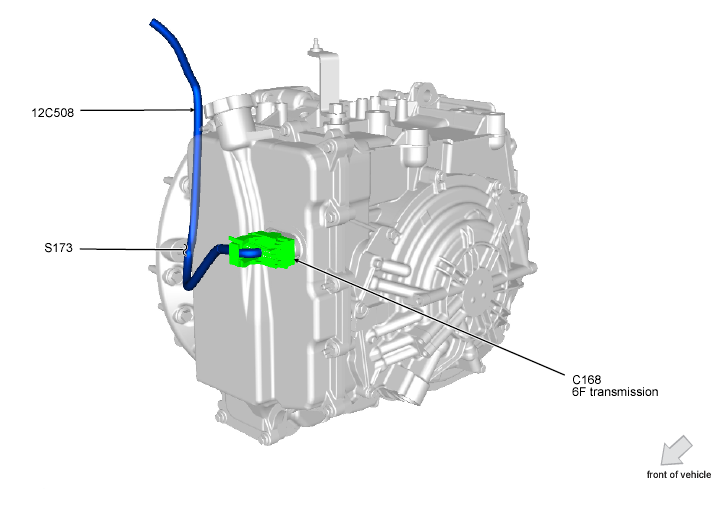

Fig 12: Automatic Transmission
G00476658Courtesy of FORD MOTOR CO.
Fig 13: Front Of Dash
G00476659Courtesy of FORD MOTOR CO.
Fig 14: Front Of Dash
G00476660Courtesy of FORD MOTOR CO.
Fig 15: Rear Of Dash
G00476661Courtesy of FORD MOTOR CO.
Fig 16: HVAC Unit
G00476662Courtesy of FORD MOTOR CO.

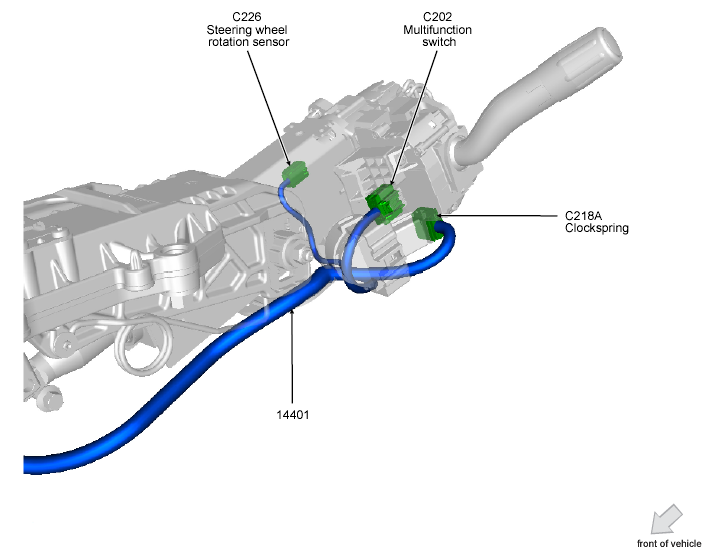

Fig 17: Steering Column
G00476663Courtesy of FORD MOTOR CO.

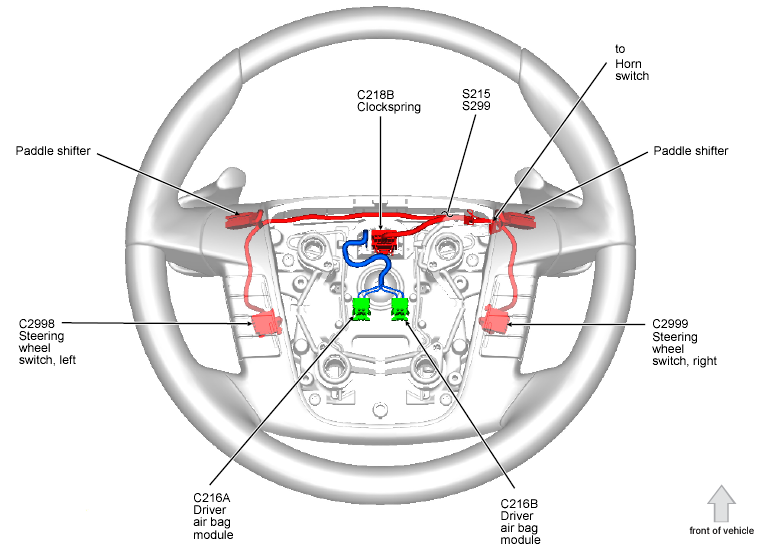

Fig 18: Steering Wheel
G00476664Courtesy of FORD MOTOR CO.
Fig 19: Center Console
G00476665Courtesy of FORD MOTOR CO.
Fig 20: Left End Of Dash & Left Kick Panel
G00476666Courtesy of FORD MOTOR CO.

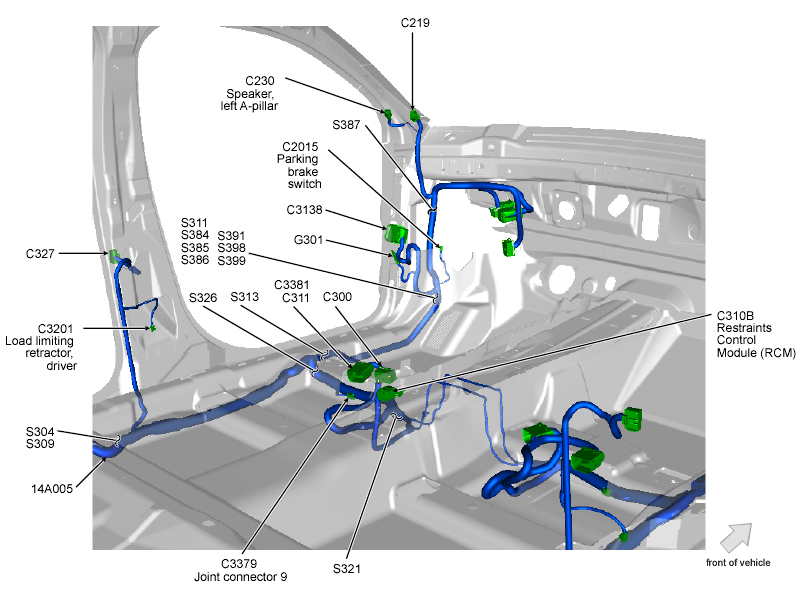

Fig 21: Left Front Of Vehicle Interior
G00476667Courtesy of FORD MOTOR CO.
Fig 22: Right Front Of Vehicle Interior
G00476668Courtesy of FORD MOTOR CO.
Fig 23: Left Rear Of Vehicle Interior
G00476669Courtesy of FORD MOTOR CO.
Fig 24: Left Rear Of Vehicle Interior
G00476670Courtesy of FORD MOTOR CO.
Fig 25: Right Rear Of Vehicle Interior
G00476671Courtesy of FORD MOTOR CO.
Fig 26: Rear Of Vehicle
G00476672Courtesy of FORD MOTOR CO.

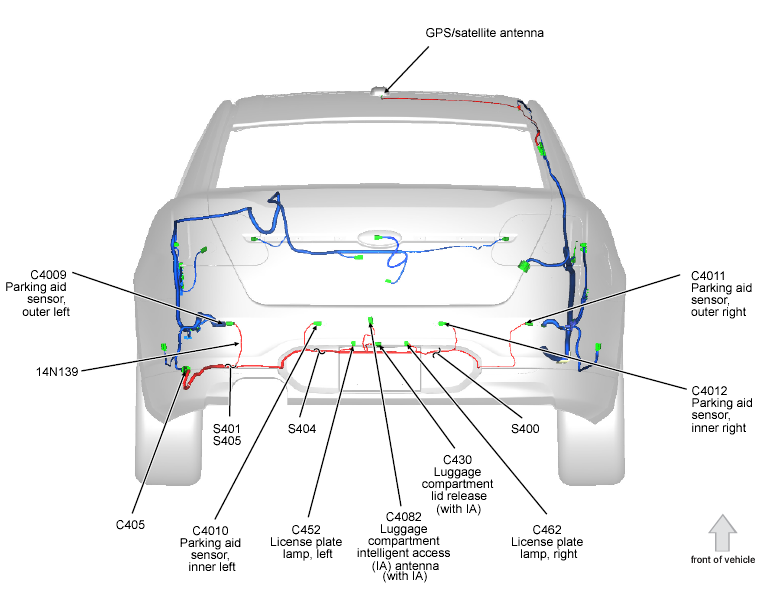

Fig 27: Rear Of Vehicle
G00476673Courtesy of FORD MOTOR CO.

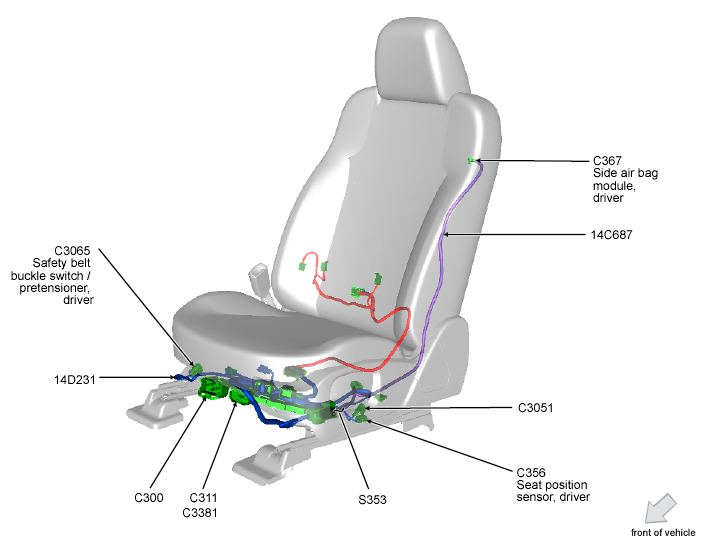

Fig 28: Driver's Seat
G00476674Courtesy of FORD MOTOR CO.
Fig 29: Driver's Seat
G00476675Courtesy of FORD MOTOR CO.
Fig 30: Front Passenger's Seat
G00476676Courtesy of FORD MOTOR CO.
Fig 31: Front Passenger's Seat
G00476677Courtesy of FORD MOTOR CO.
Fig 32: Rear Seats
G00476678Courtesy of FORD MOTOR CO.
Fig 33: Driver's Door
G00476679Courtesy of FORD MOTOR CO.

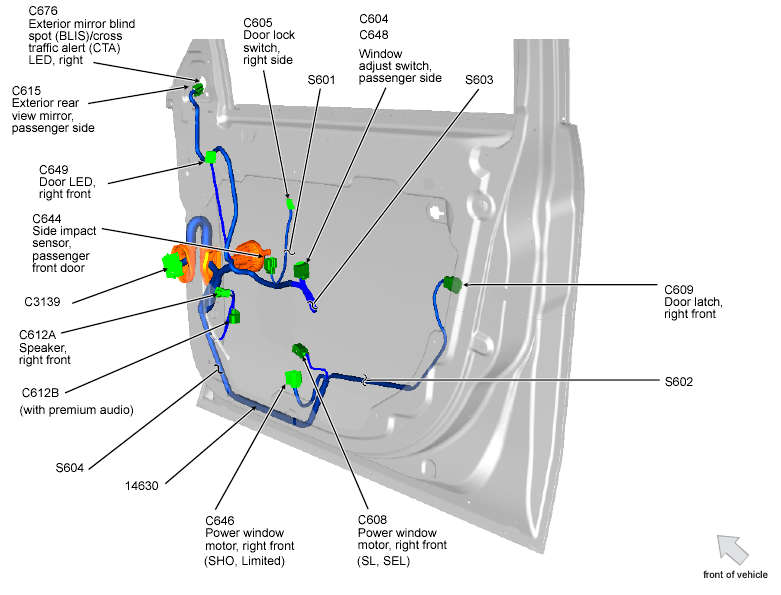

Fig 34: Front Passenger's Door
G00476680Courtesy of FORD MOTOR CO.

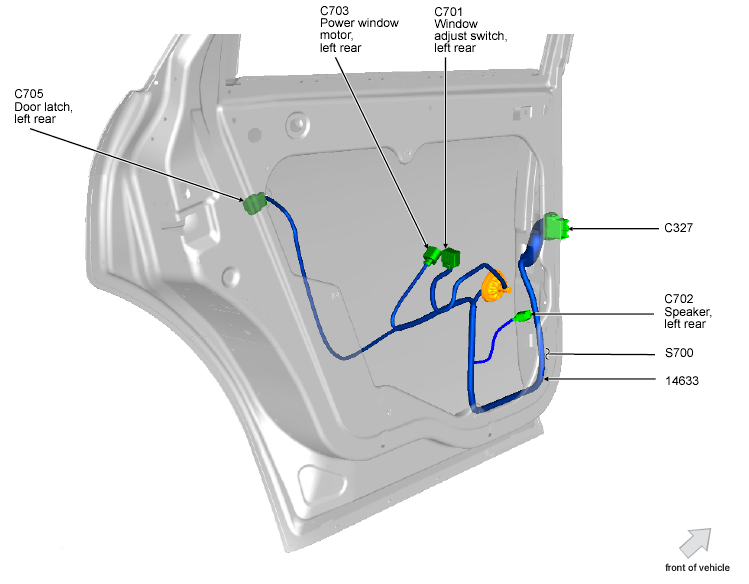

Fig 35: Left Rear Door
G00476681Courtesy of FORD MOTOR CO.

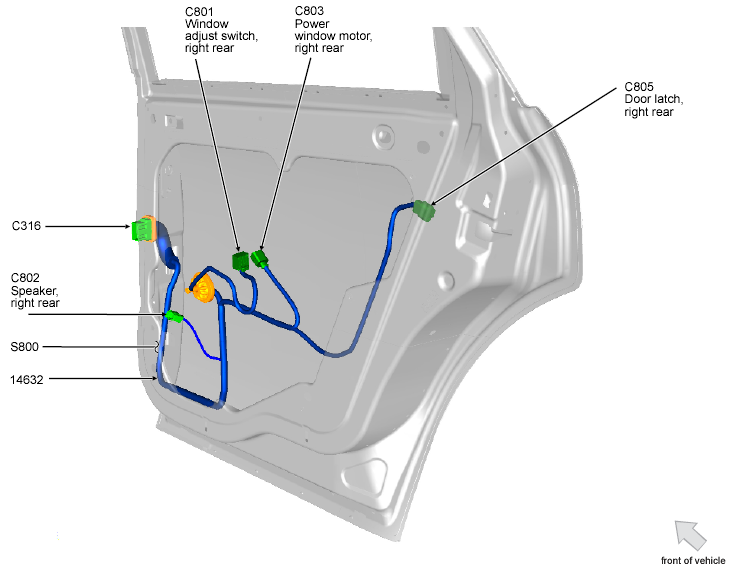

Fig 36: Right Rear Door
G00476682Courtesy of FORD MOTOR CO.
Fig 37: Roof
G00476683Courtesy of FORD MOTOR CO.
