3.5L RH Side

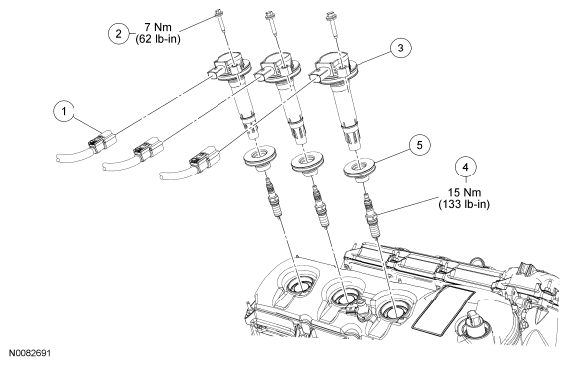

Fig 1: Engine Ignition Replacement Components (3.5L RH Side) With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
2	W714507	Ignition coil-on-plug bolt (3 required)
3	12A375	Ignition coil-on-plug (3 required)
4	12405	Spark plug (3 required)
5	12A384	Coil seal (3 required)
