C205 Front Lighting Control Module (FLM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

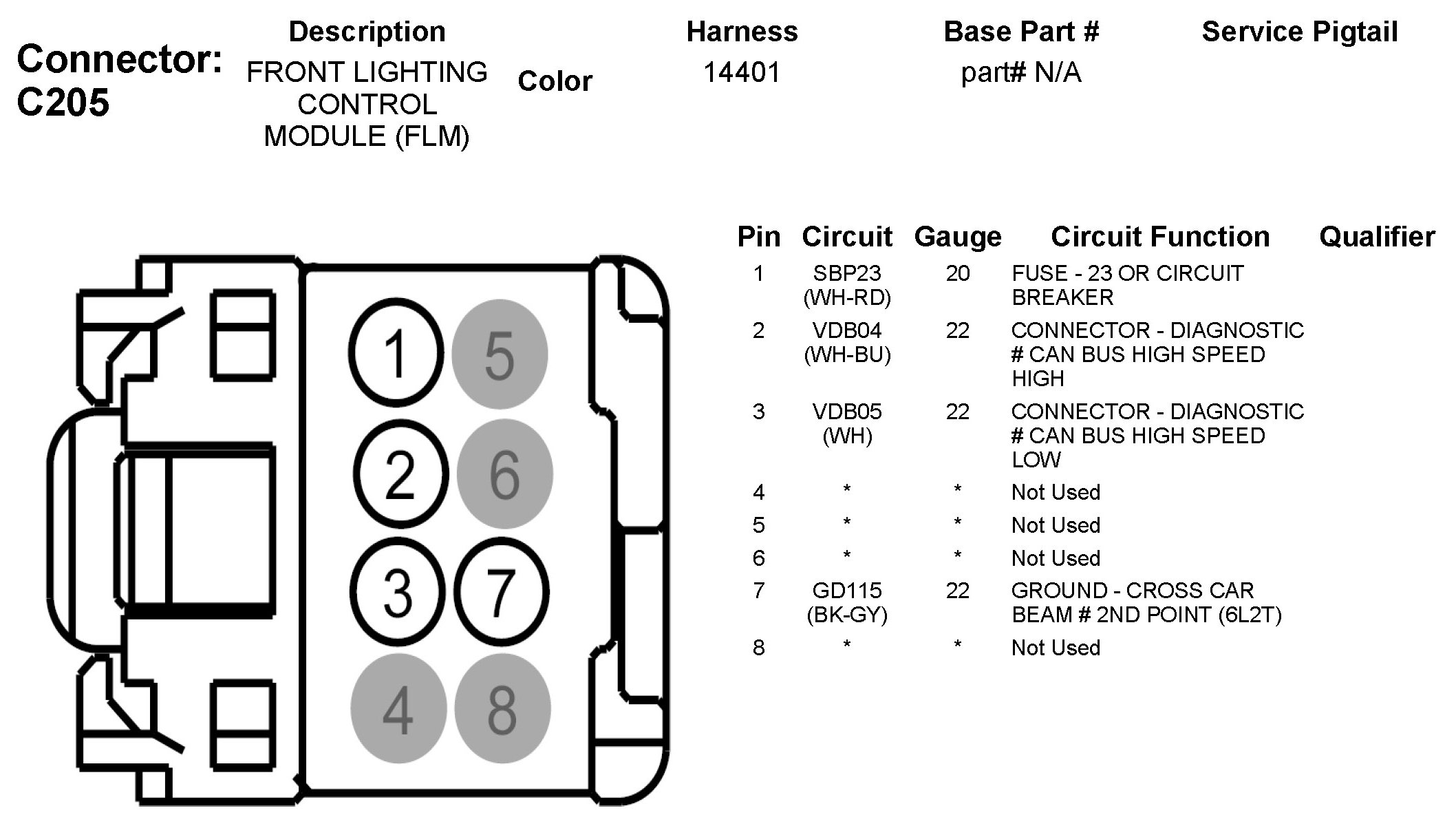

C205 Front Lighting Control Module (FLM)
