Keyless Entry Key-Pad: Service and Repair

Keyless Entry Keypad









Removal and Installation

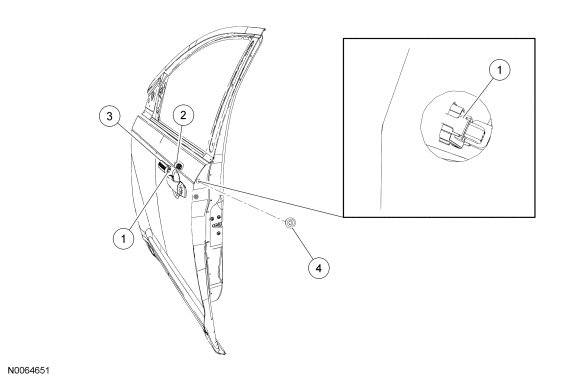

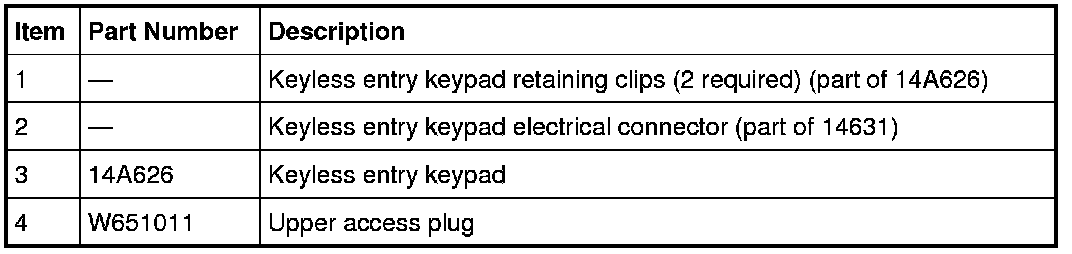

1. Remove the upper access plug.

2. Using a suitable tool (such as a long, flat-blade screwdriver), through the upper access hole, release the rear keyless entry keypad retaining clip and position the keyless entry keypad aside.

3. Remove the keyless entry keypad.
- Disconnect the electrical connector.


4. To install, reverse the removal procedure.
