Engine Temperature Sensor

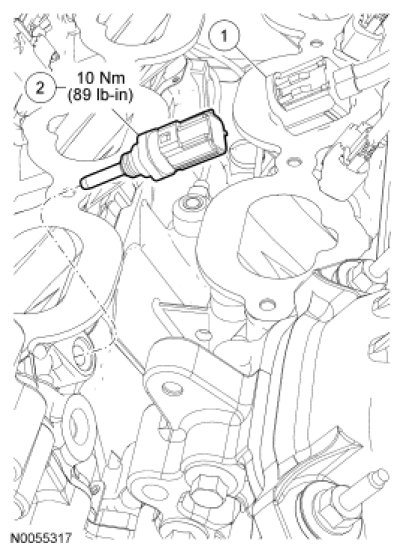

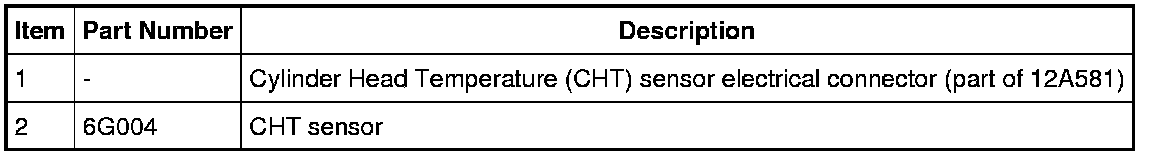

Engine Control Components - Exploded View











Cylinder Head Temperature (CHT) Sensor

NOTE: The lower intake manifold must be removed to service the Cylinder Head Temperature (CHT) sensor. For additional information, refer to Engine Service and Repair.











Removal and Installation

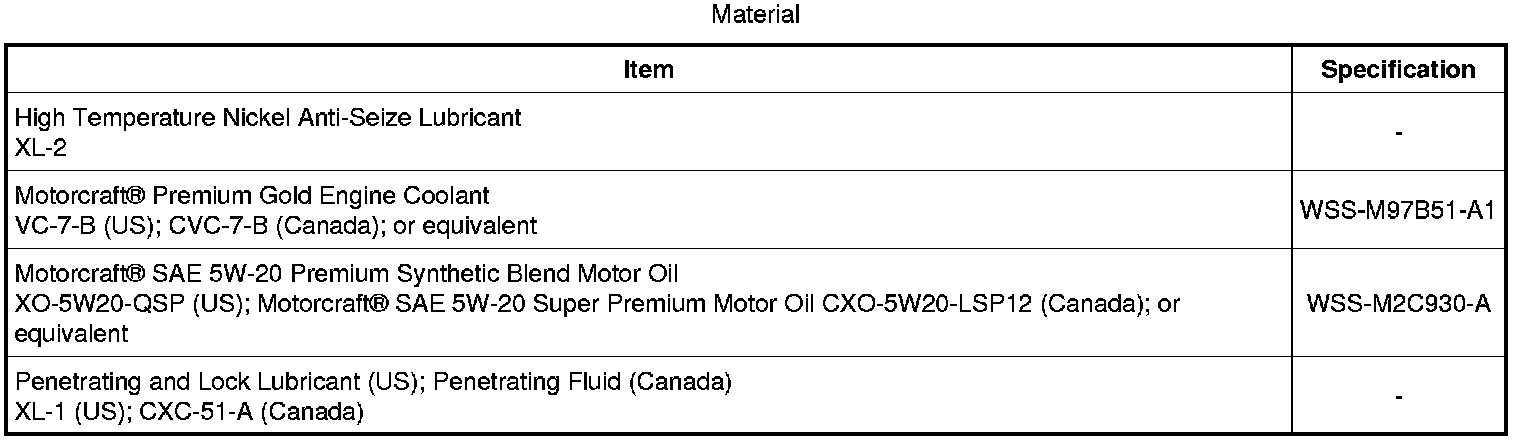

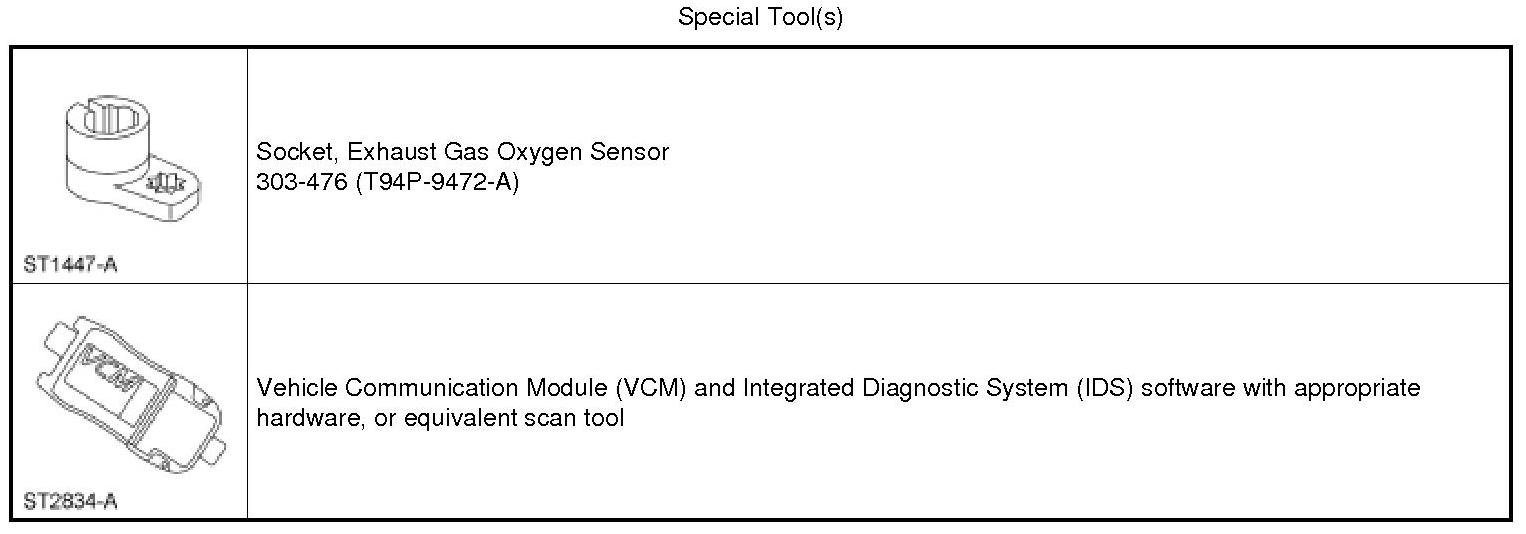

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
