Utility Storage Compartment




Instrument Panel - Exploded View

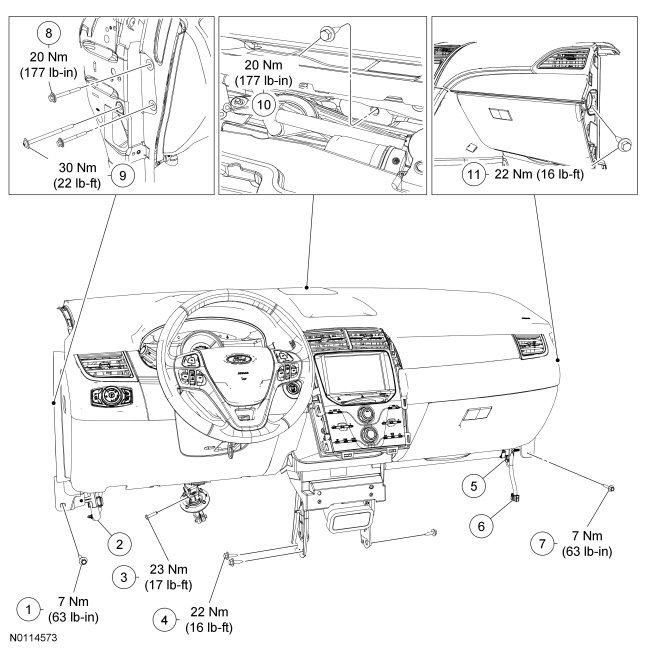

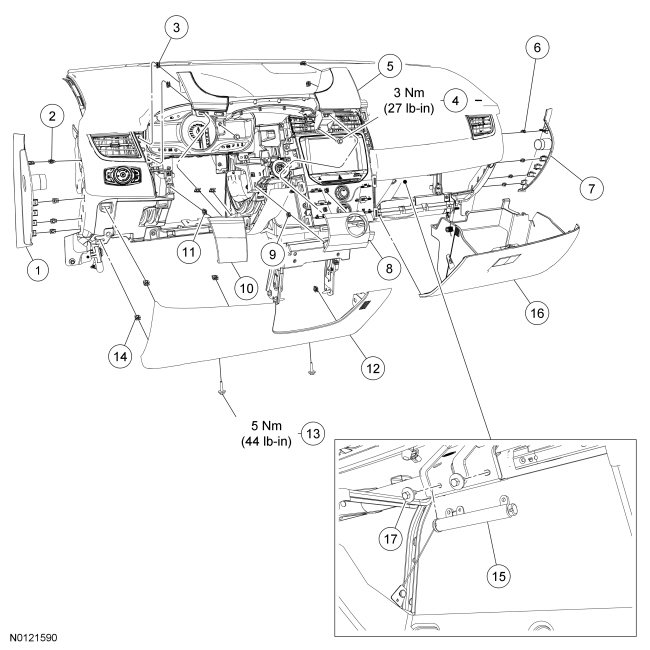

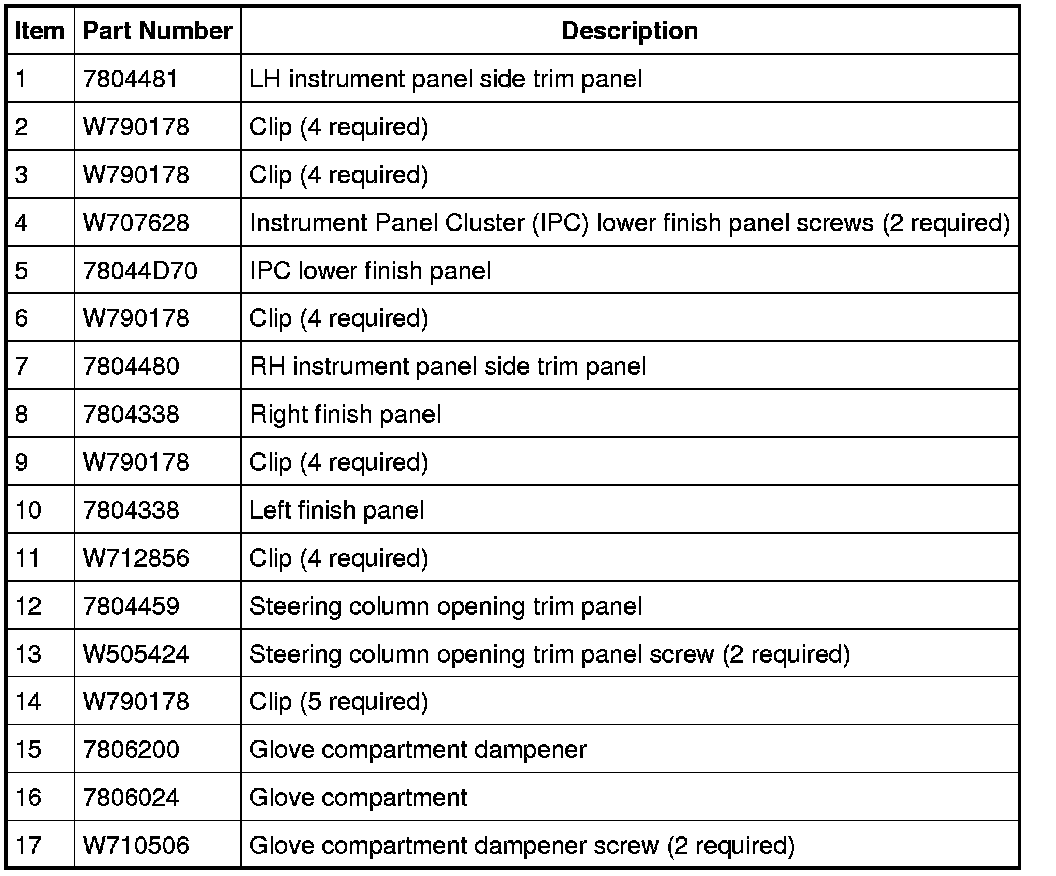

Edge Instrument Panel

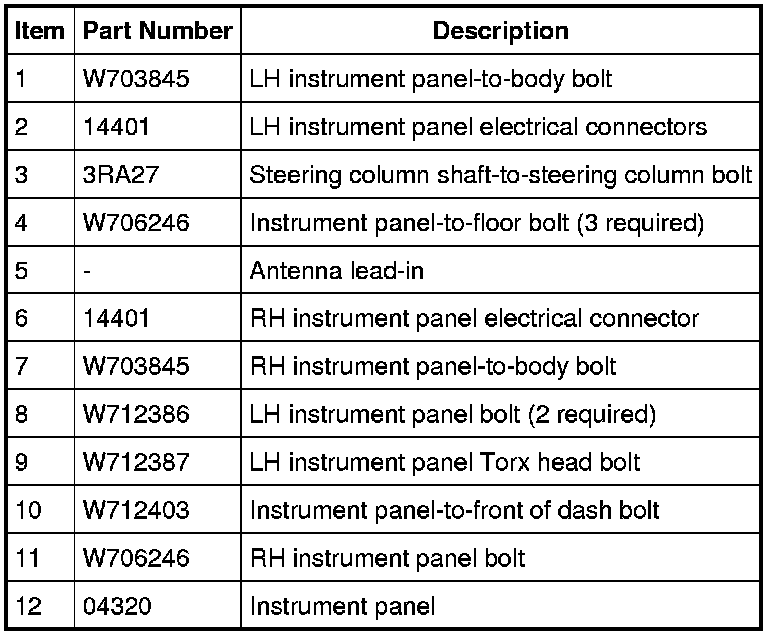

Edge Instrument Panel Fasteners

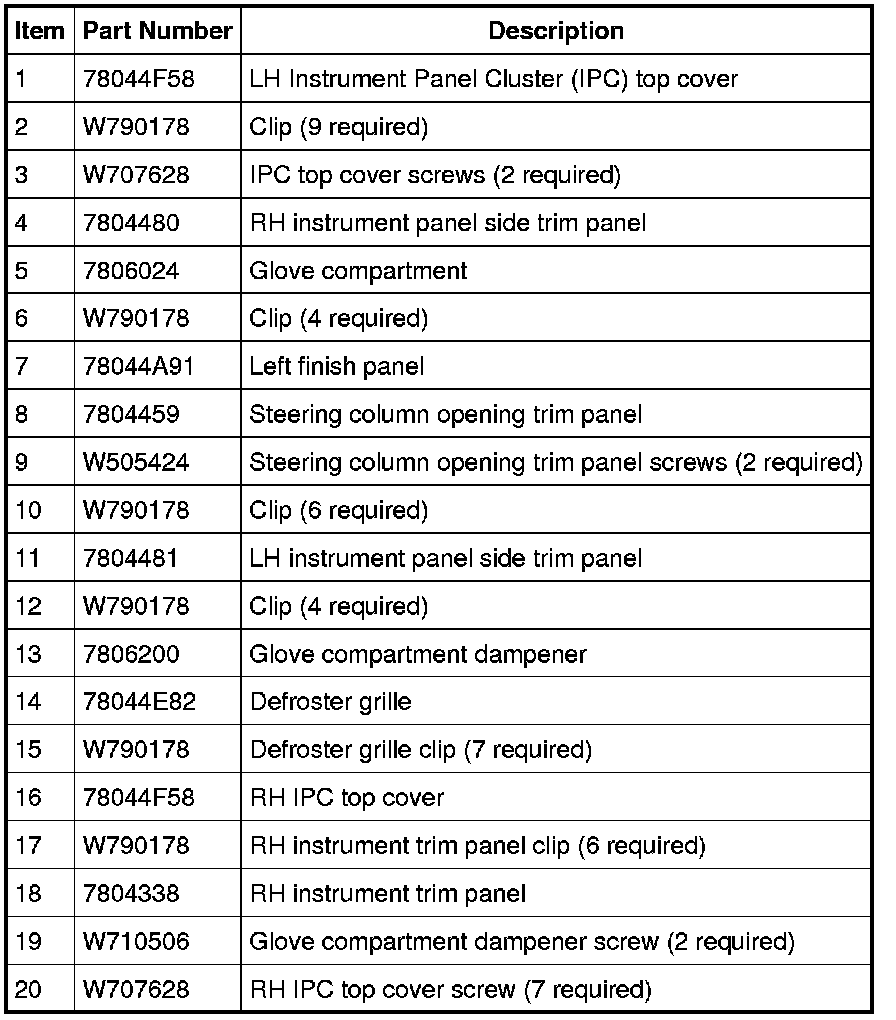

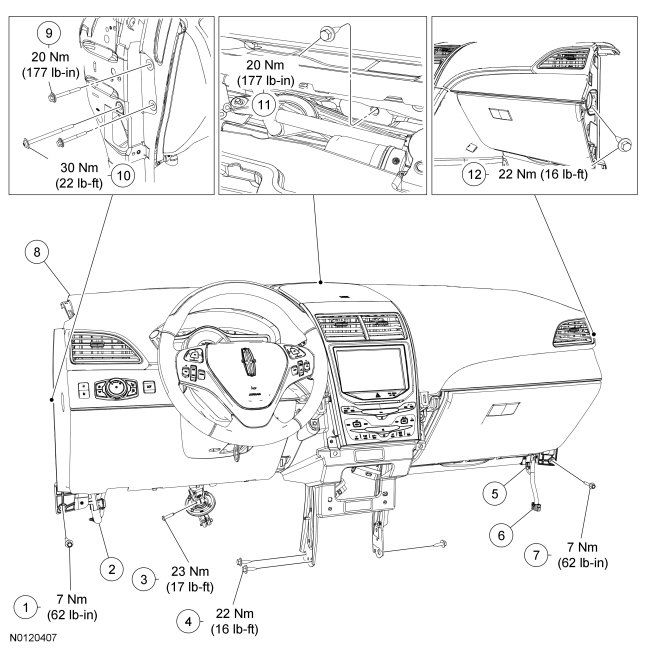

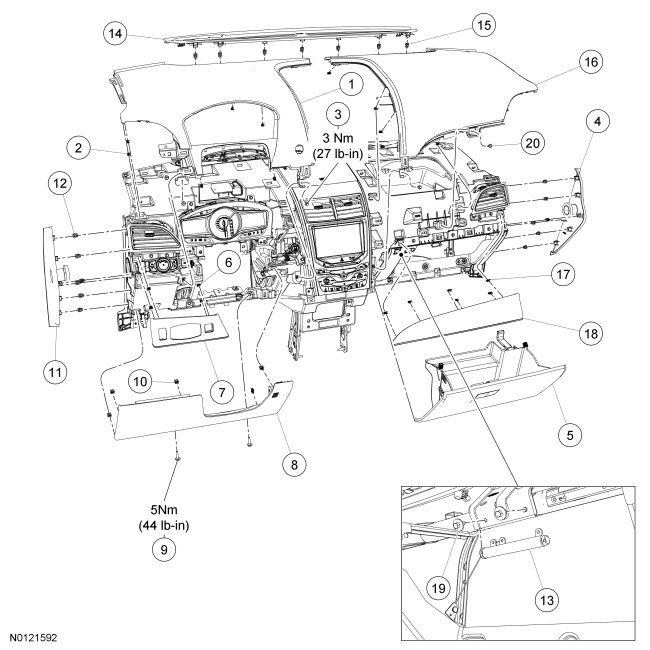

MKX Instrument Panel

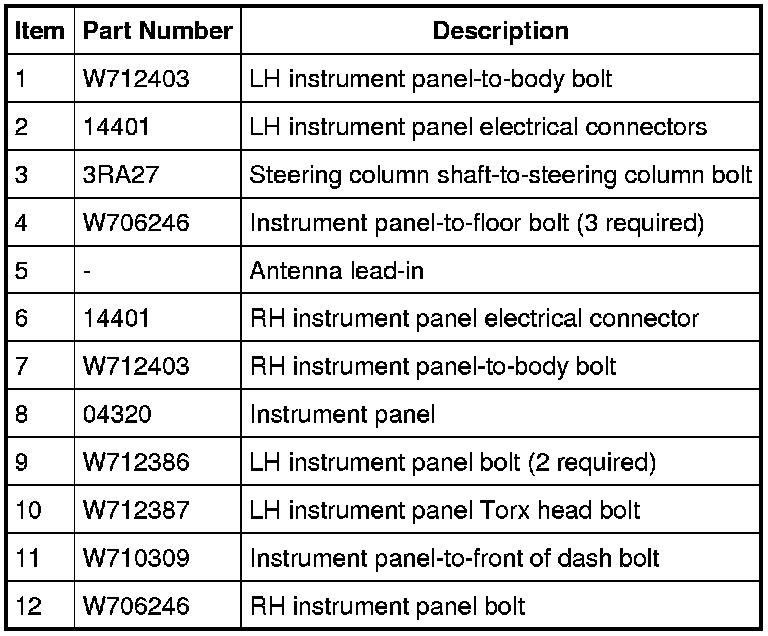

MKX Instrument Panel Fasteners
