Test KC: Fuel Pump Control Module

Fuel Pump Control Module Connector:

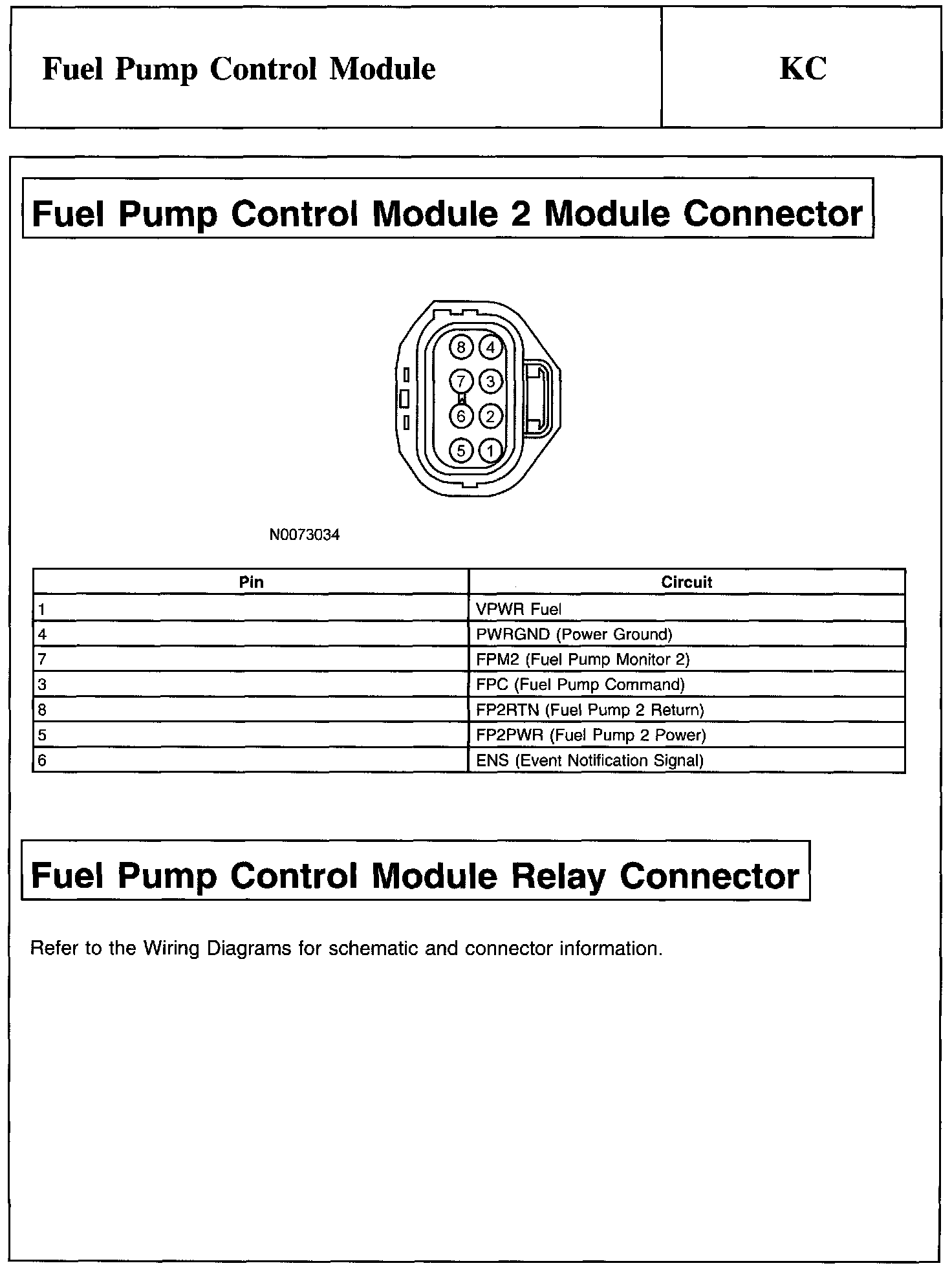

Fuel Pump Control Module 2 Module Connector And Fuel Pump Control Module Relay Connector:

Fuel Pump Control Module Relay Connector:

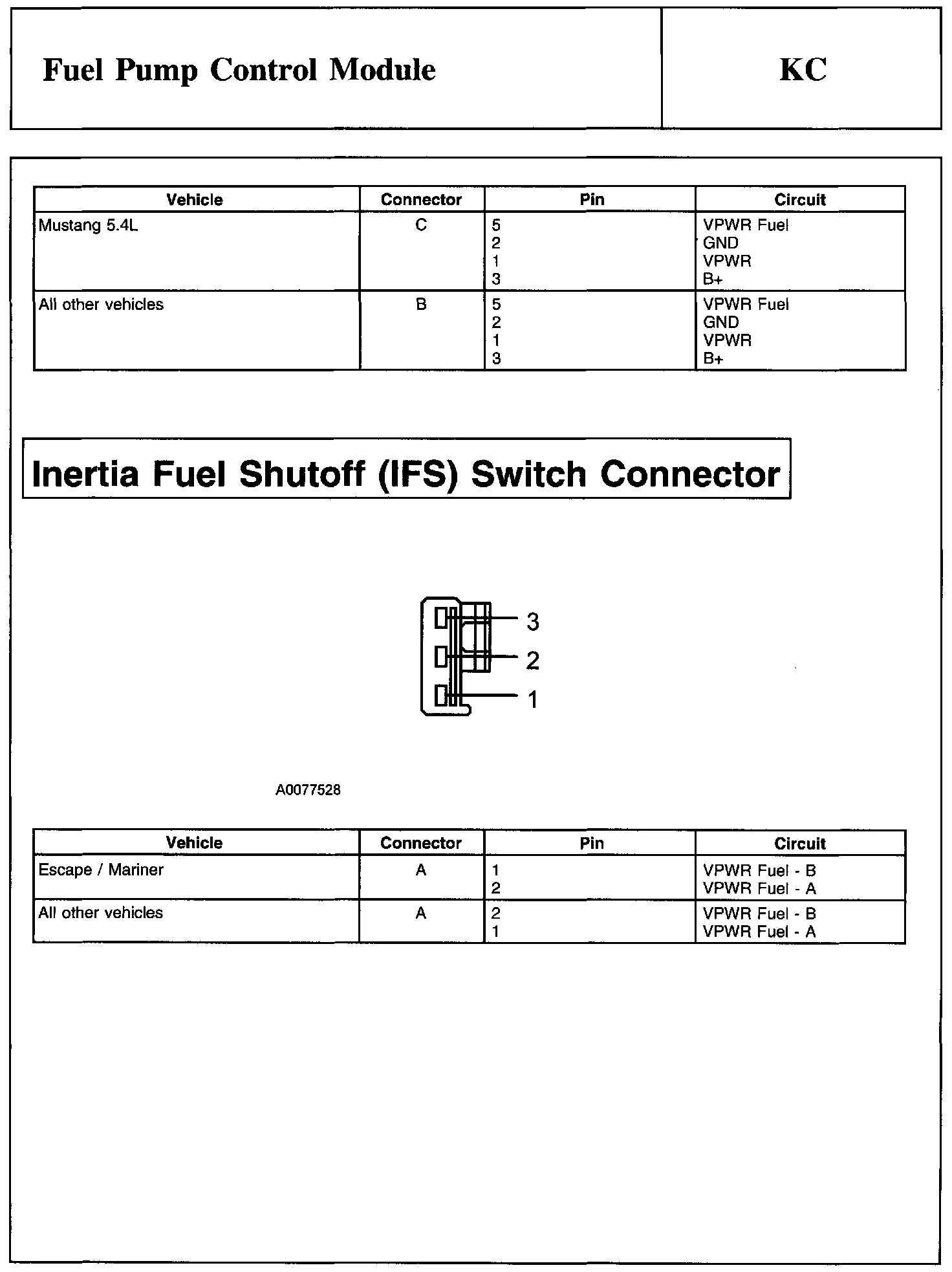

Fuel Pump Control Module Relay Connector And Inertia Fuel Shutoff (IFS) Switch Connector:

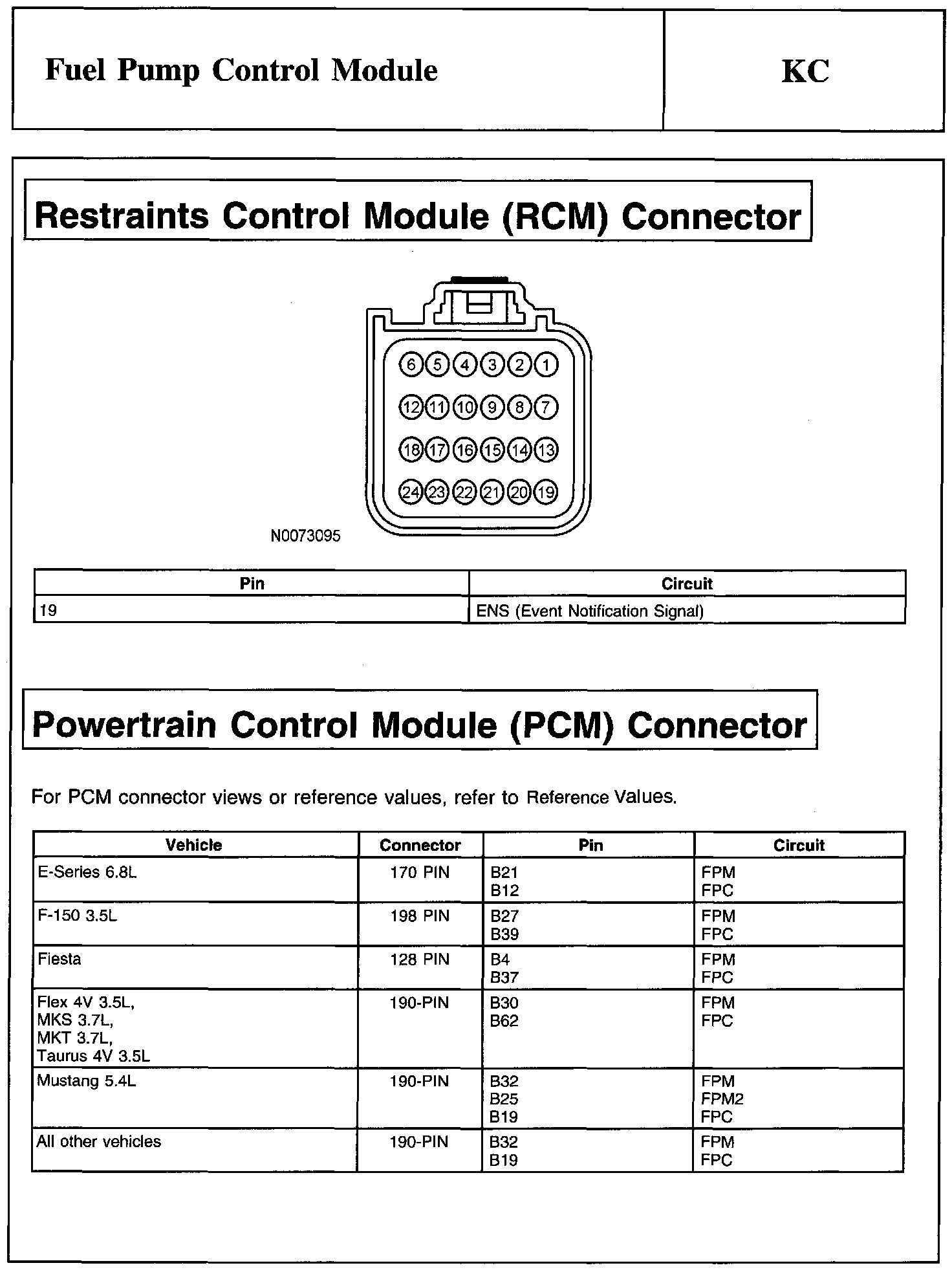

Restraints Control Module (RCM) Connector And Powertrain Control Module (PCM) Connector:

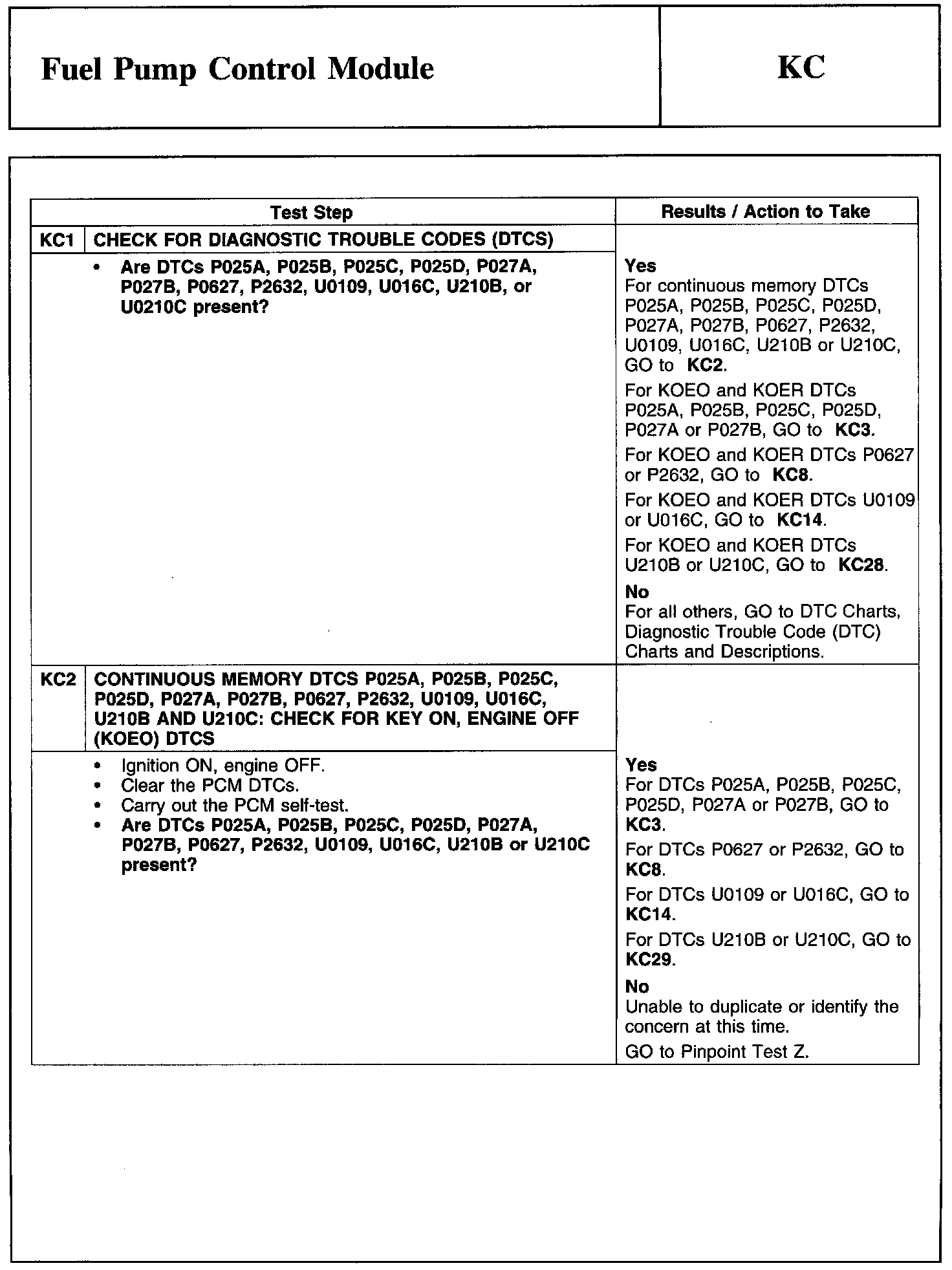

KC1-KC2:

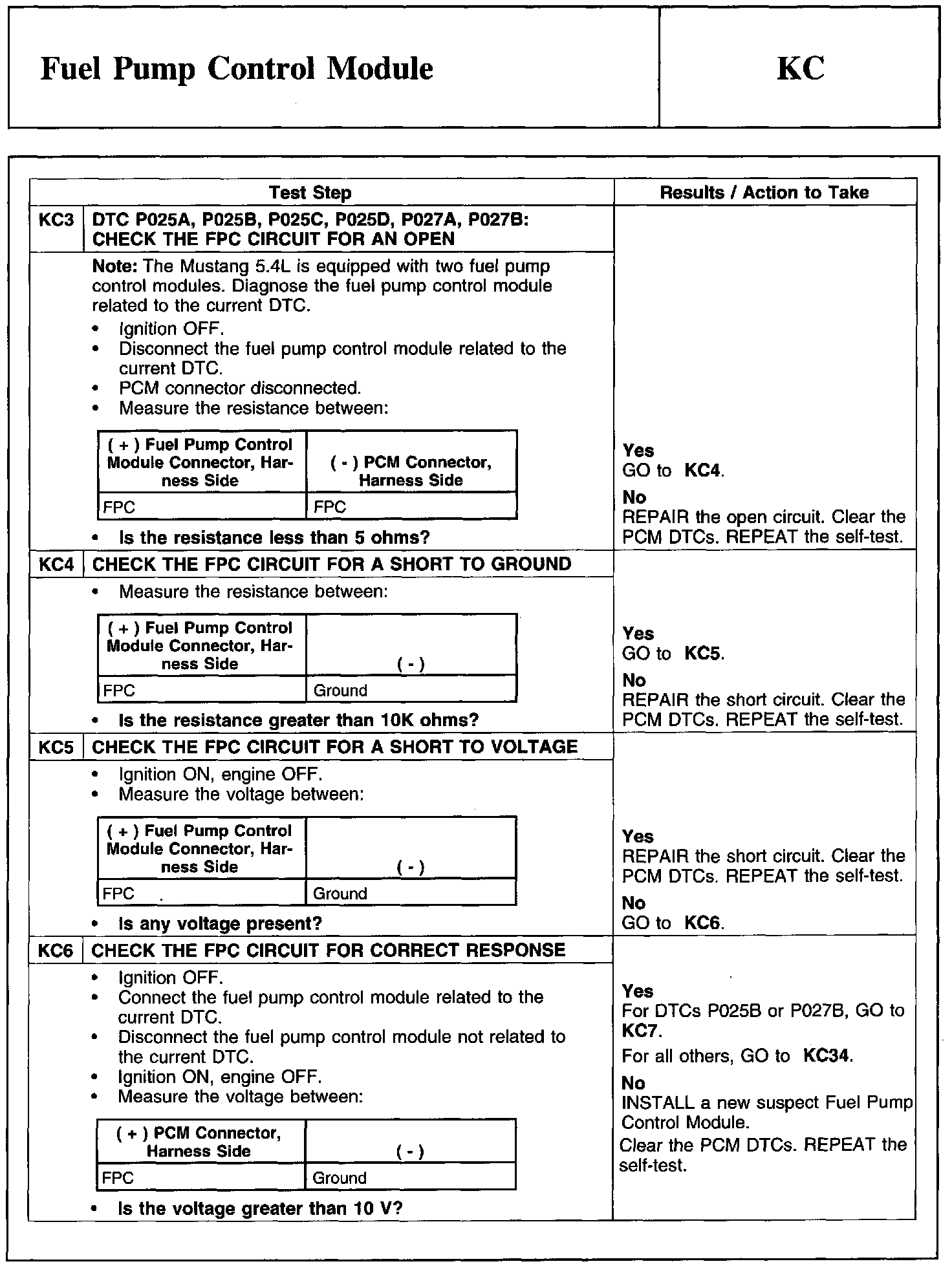

KC3-KC6:

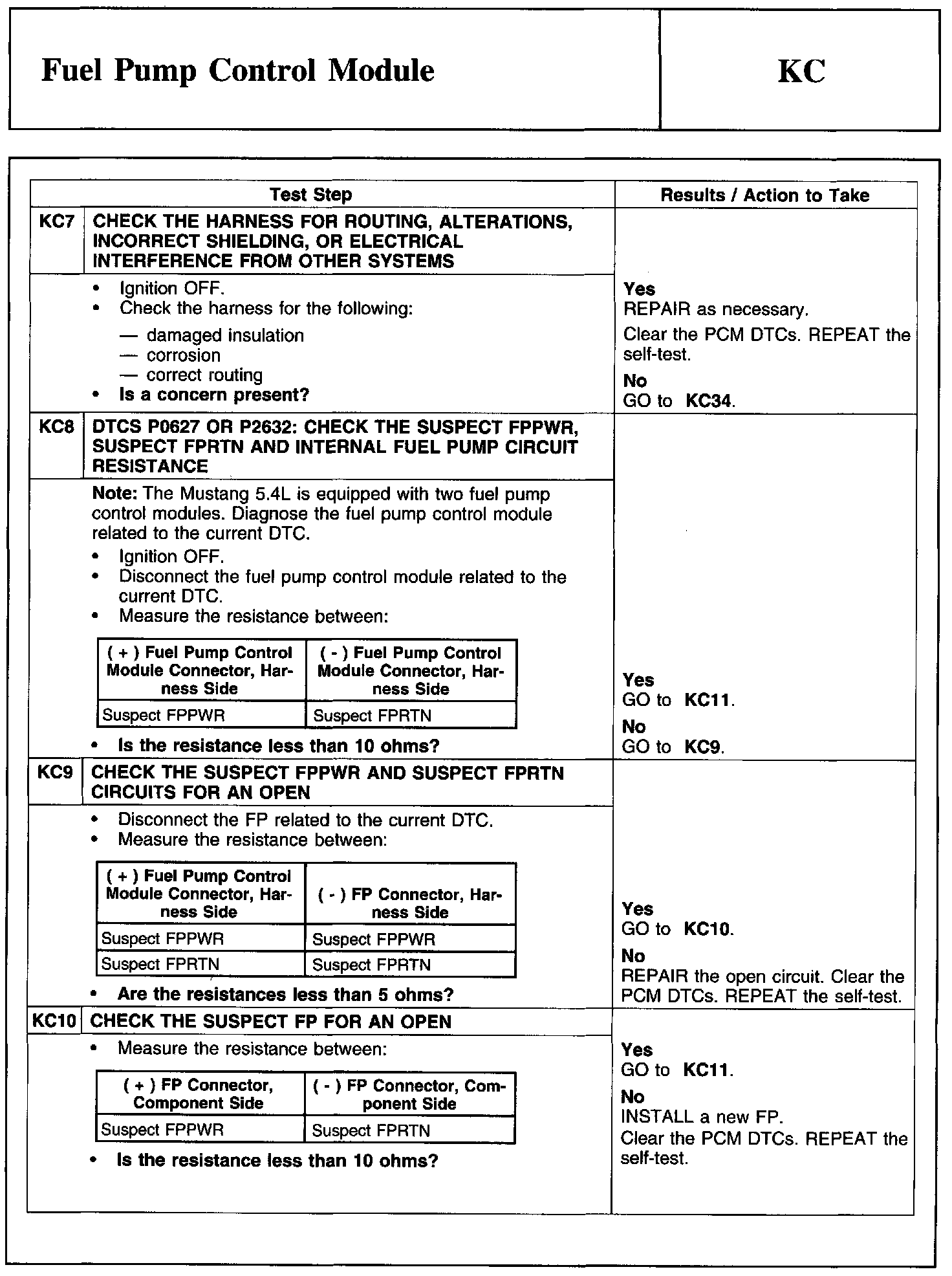

KC7-KC10:

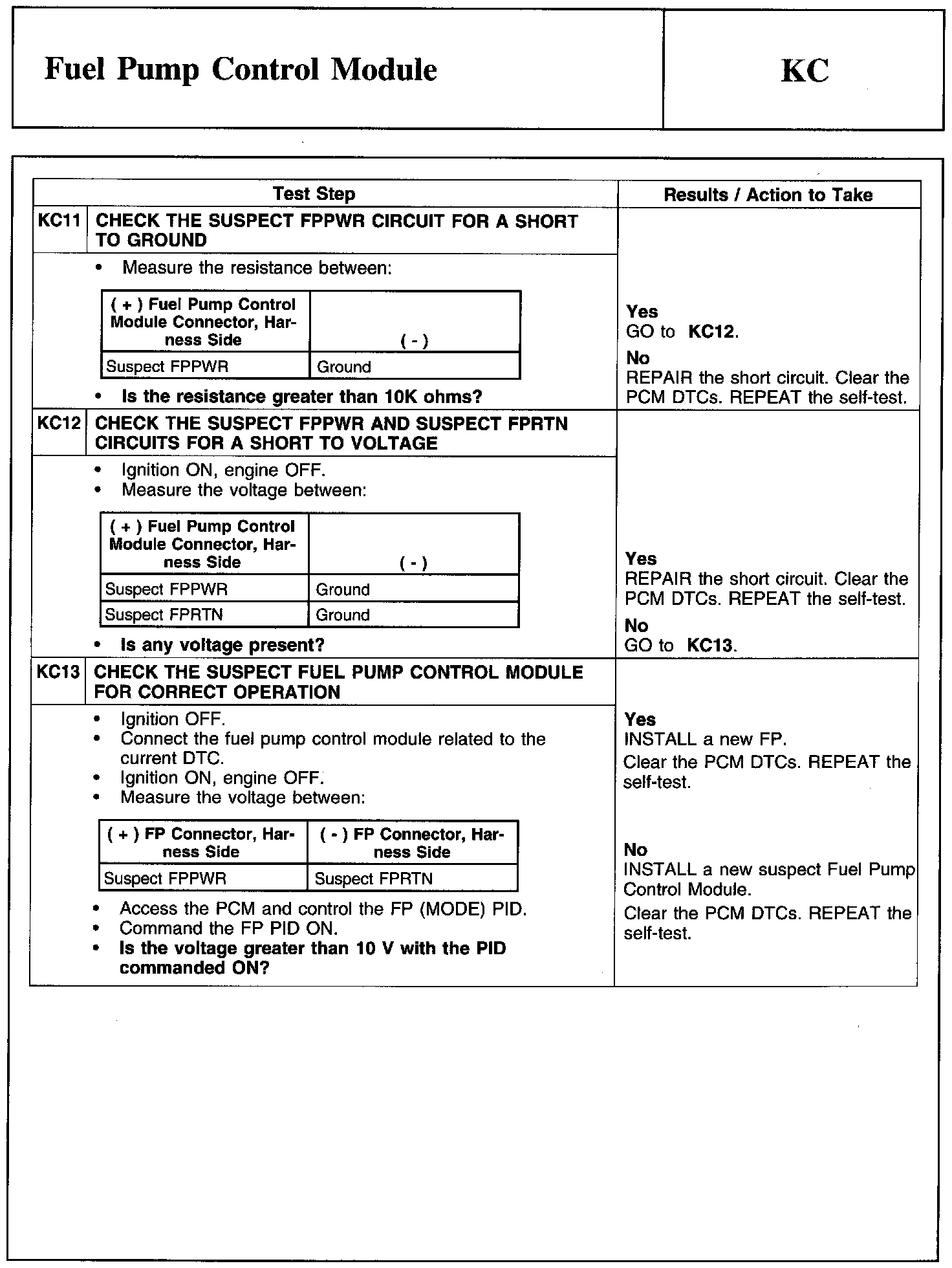

KC11-KC13:

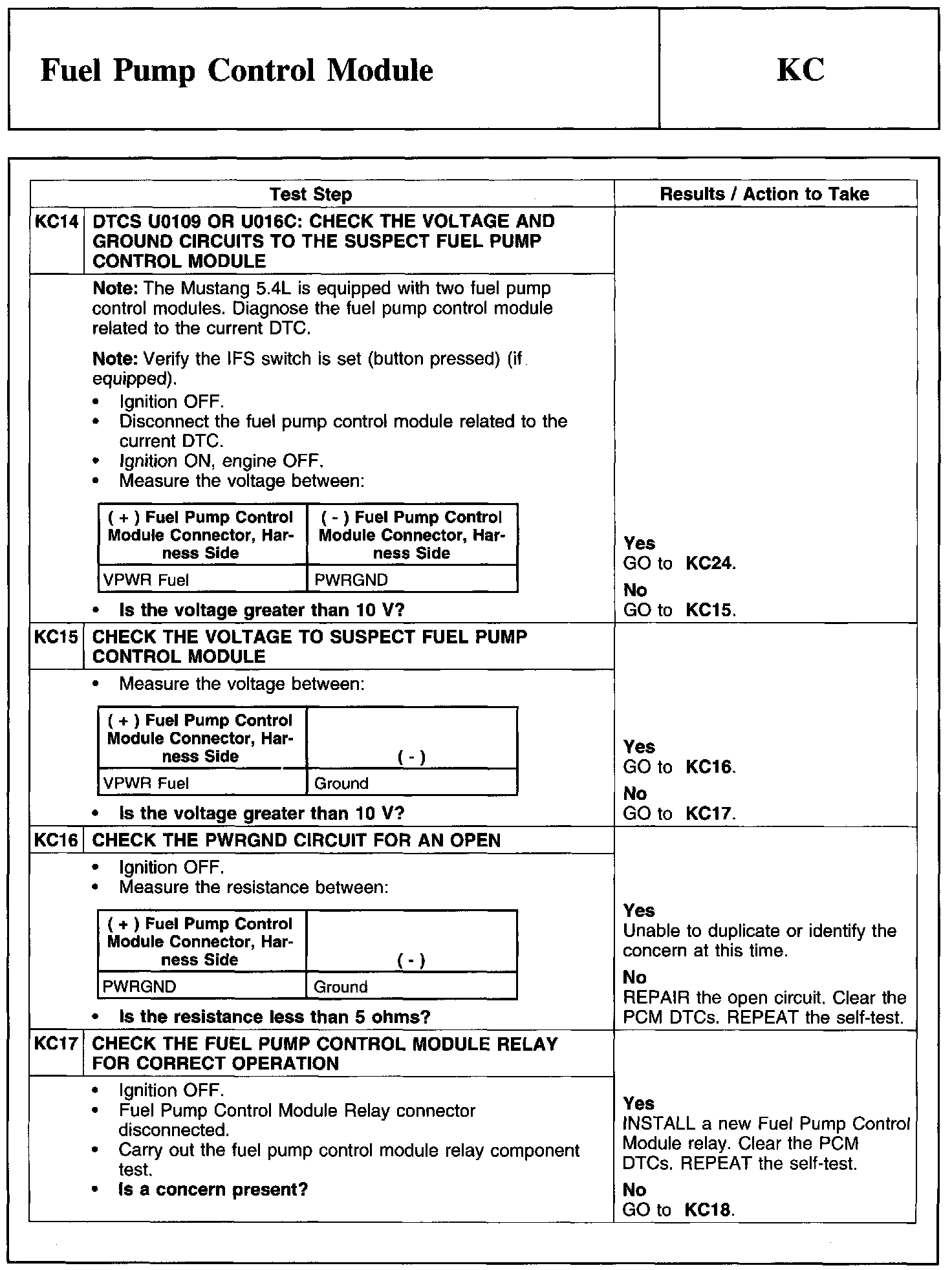

KC14-KC17:

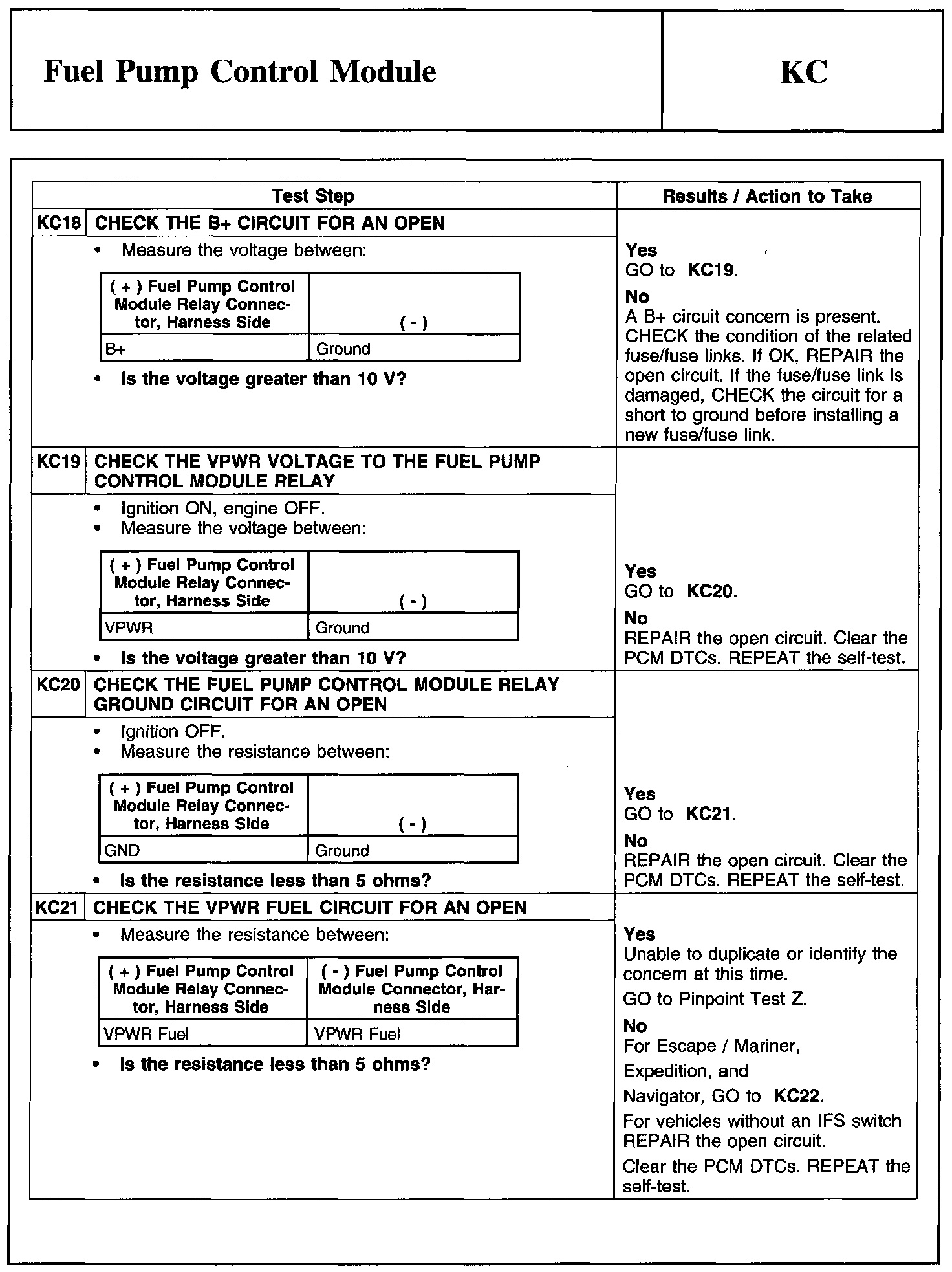

KC18-KC21:

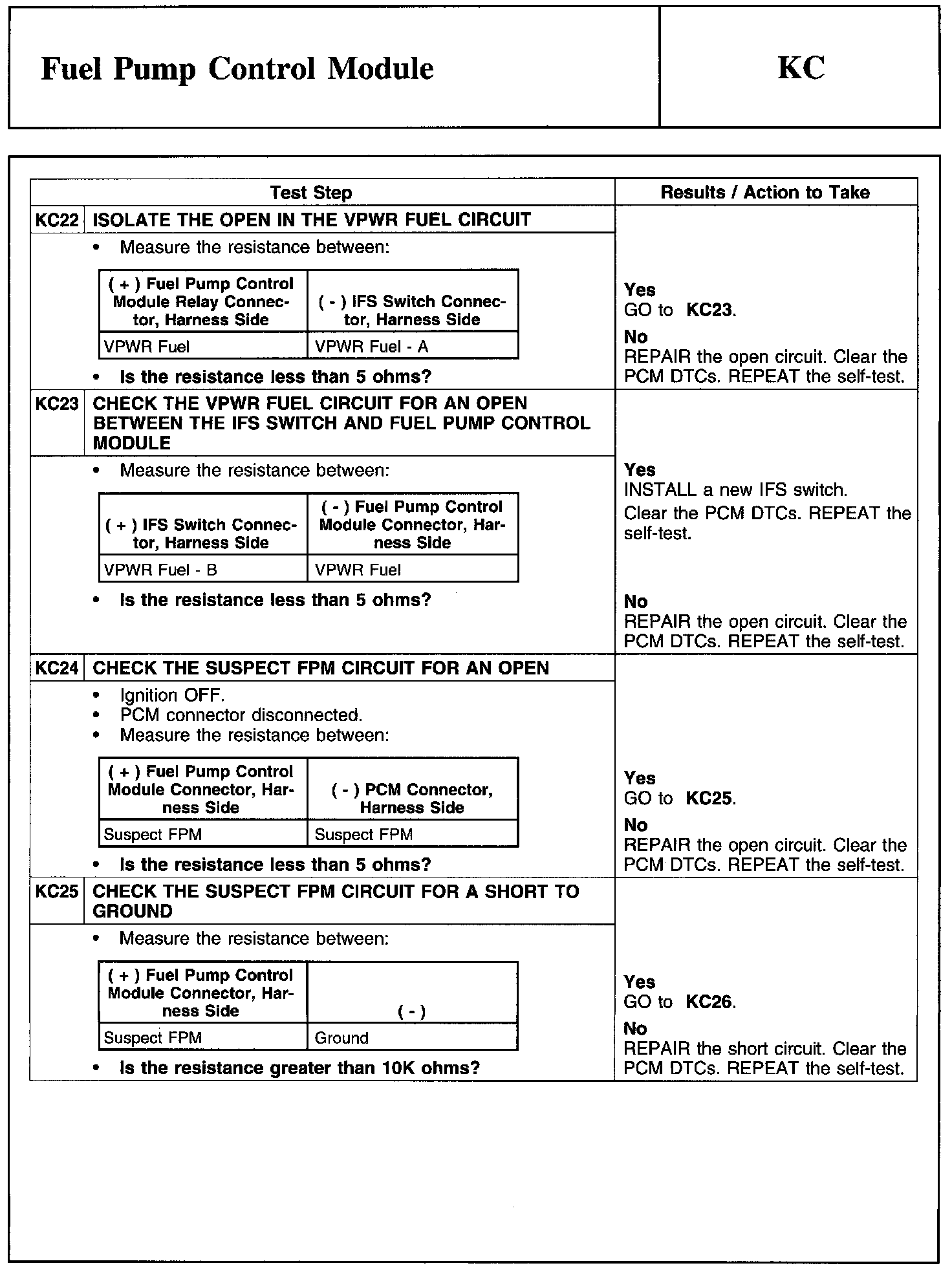

KC22-KC25:

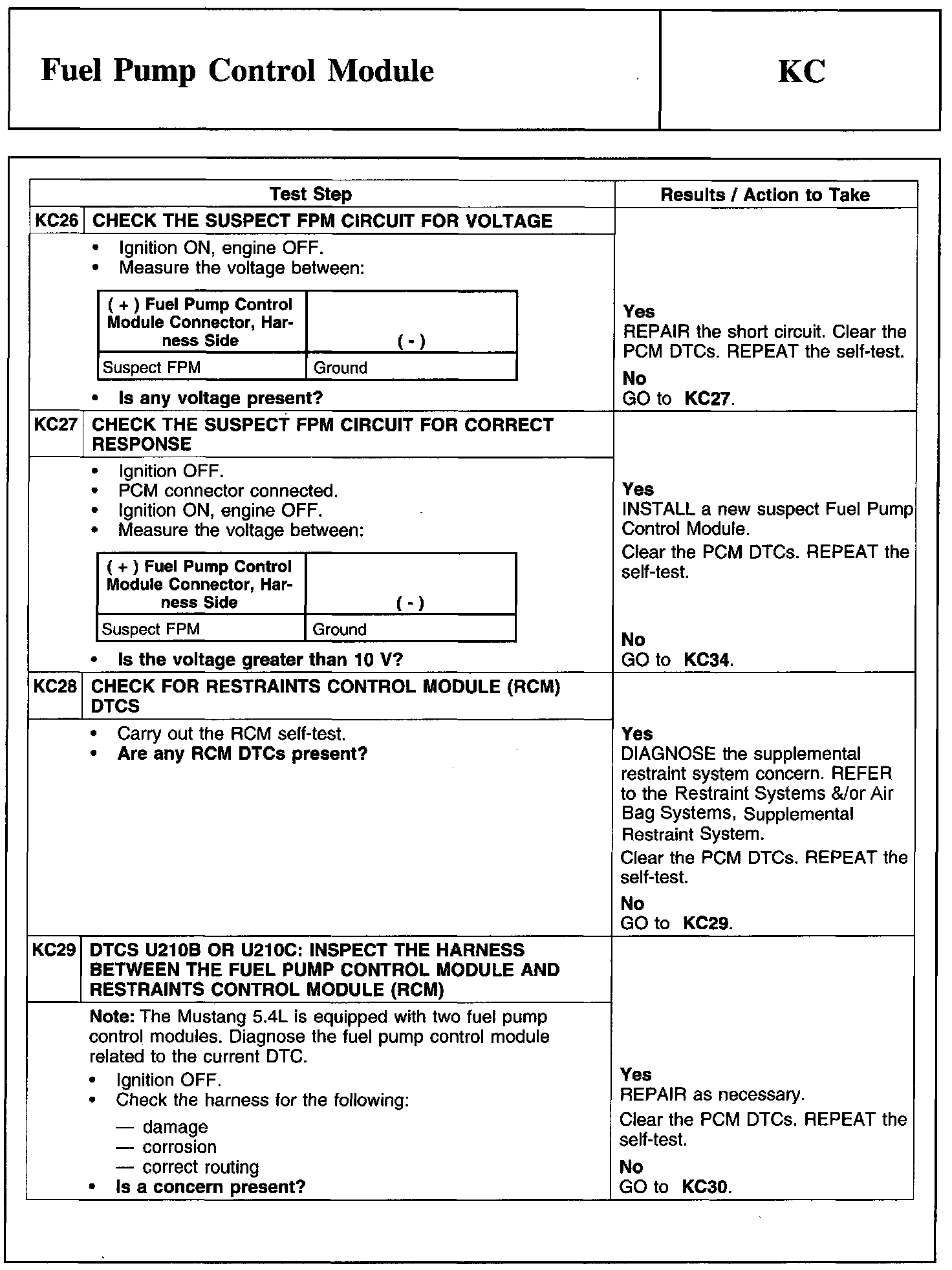

KC26-KC29:

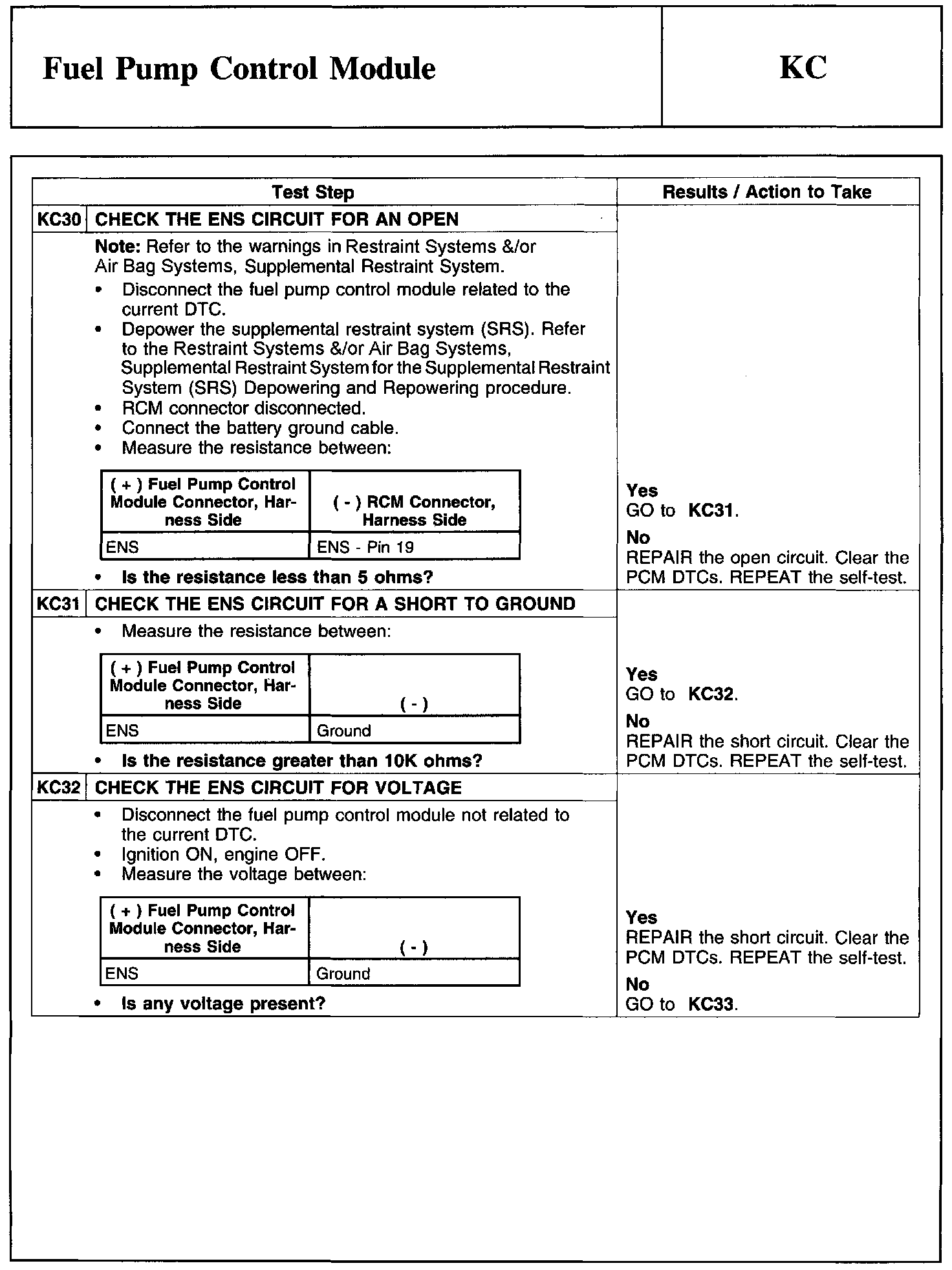

KC30-KC32:

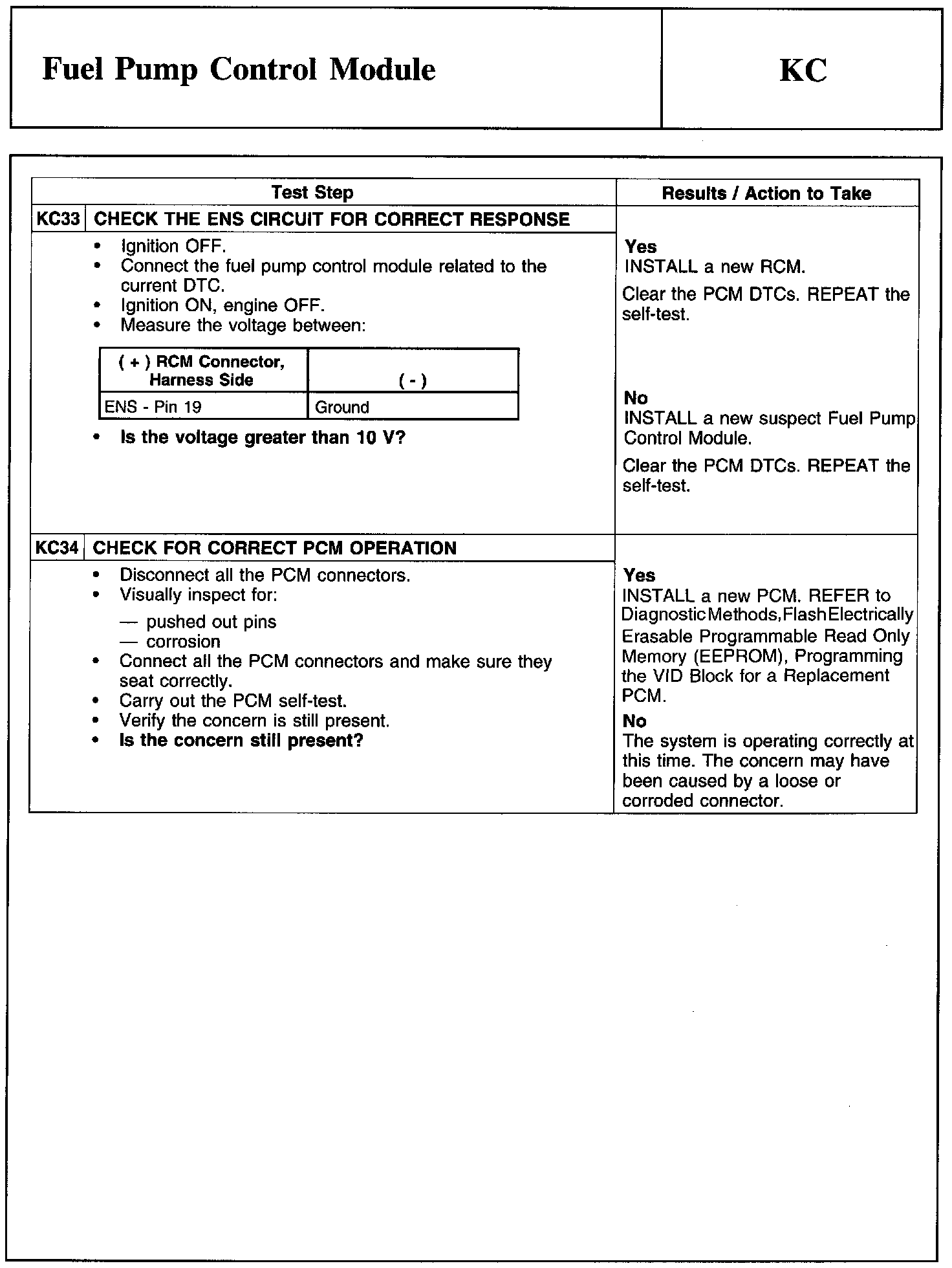

KC33-KC34:
