Crankshaft Position Sensor

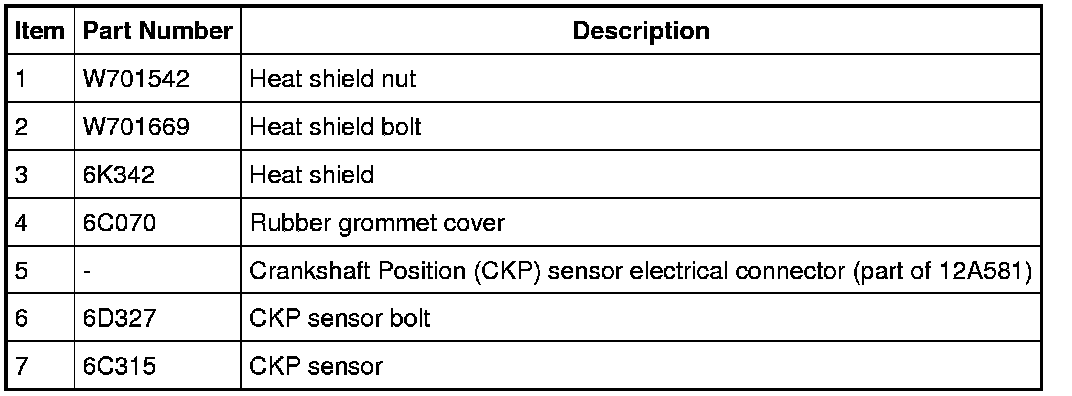

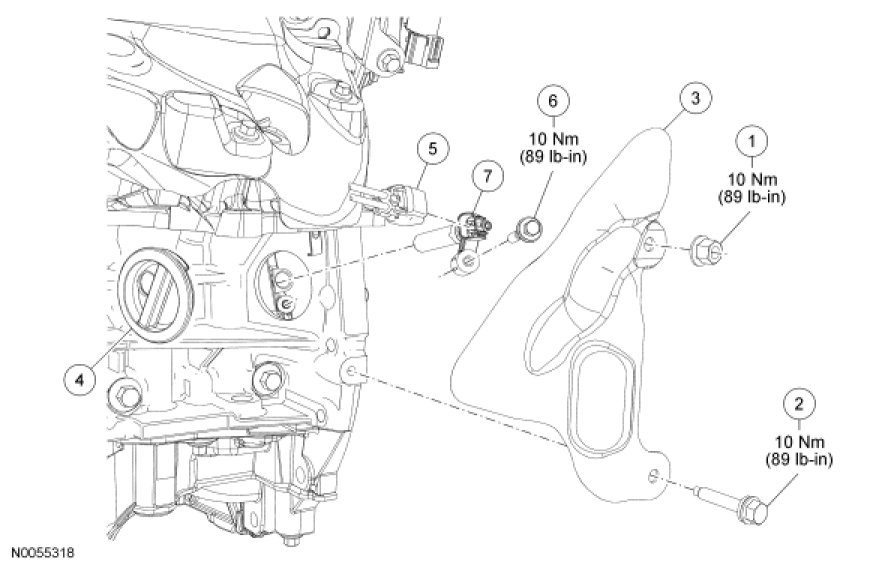

Engine Control Components - Exploded View











Crankshaft Position (CKP) Sensor

NOTE: The LH catalytic converter must be removed to service the Crankshaft Position (CKP) sensor. For additional information, refer to Exhaust System Service and Repair.

NOTE: After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.












Removal and Installation

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
