Exhaust System

Exhaust System - Exploded View

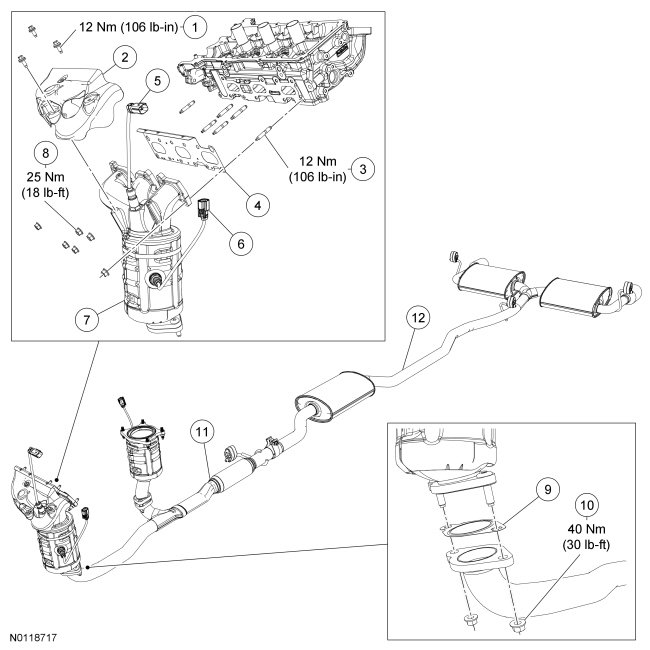

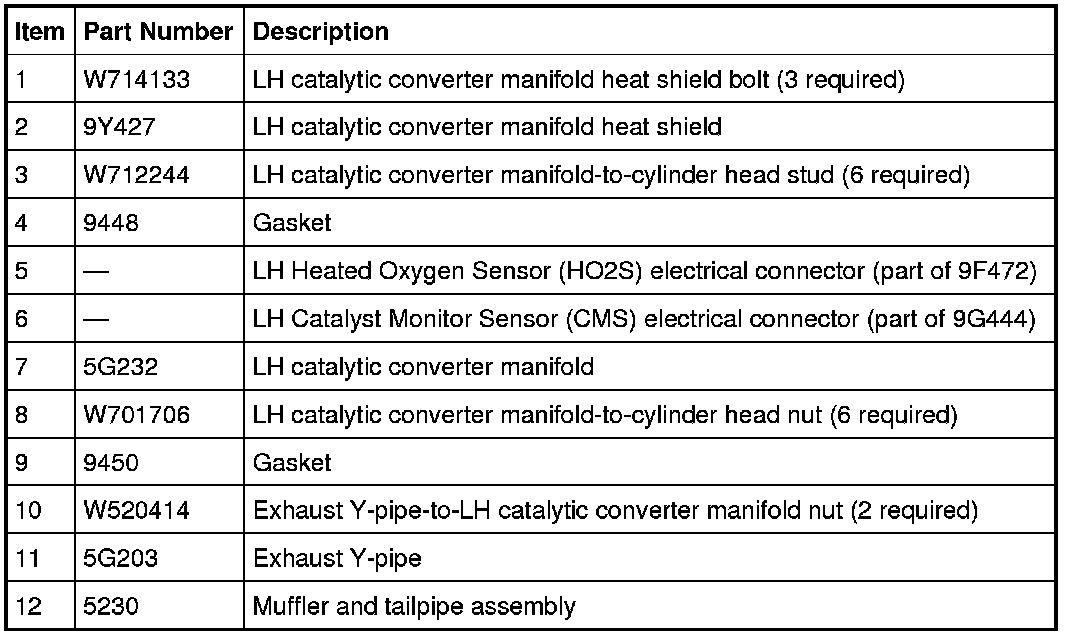

3.5L LH Catalytic Converter and Exhaust Pipes

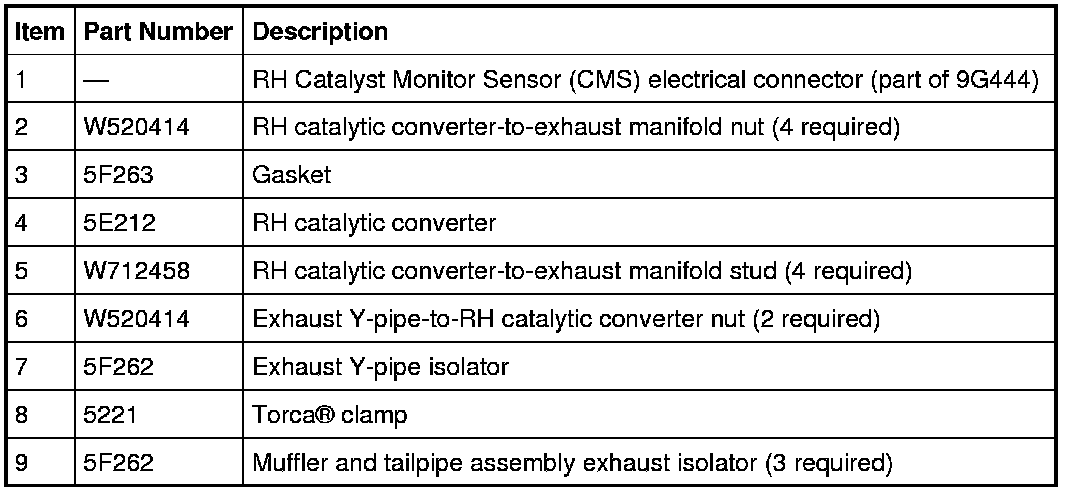

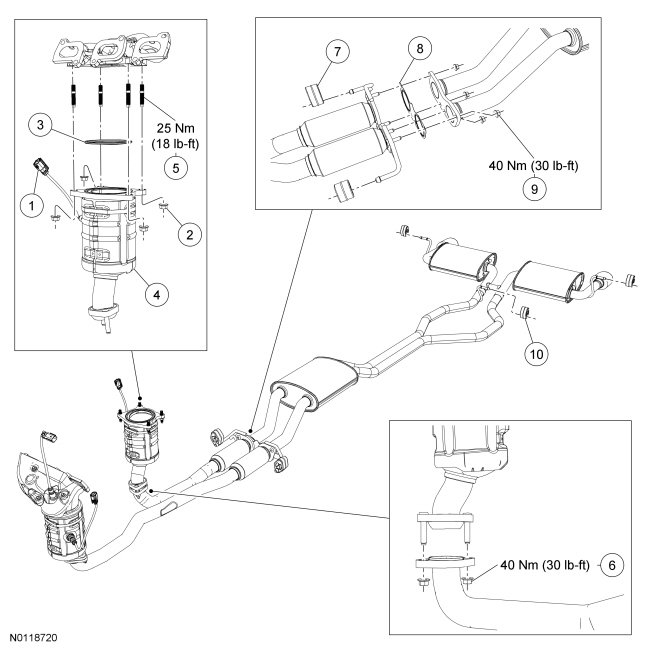

3.5L RH Catalytic Converter and Exhaust Pipes

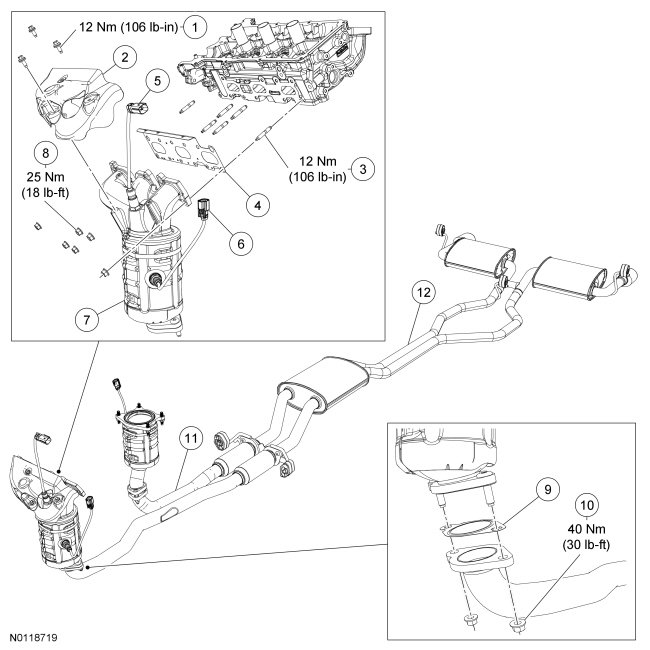

3.7L LH Catalytic Converter and Exhaust Pipes

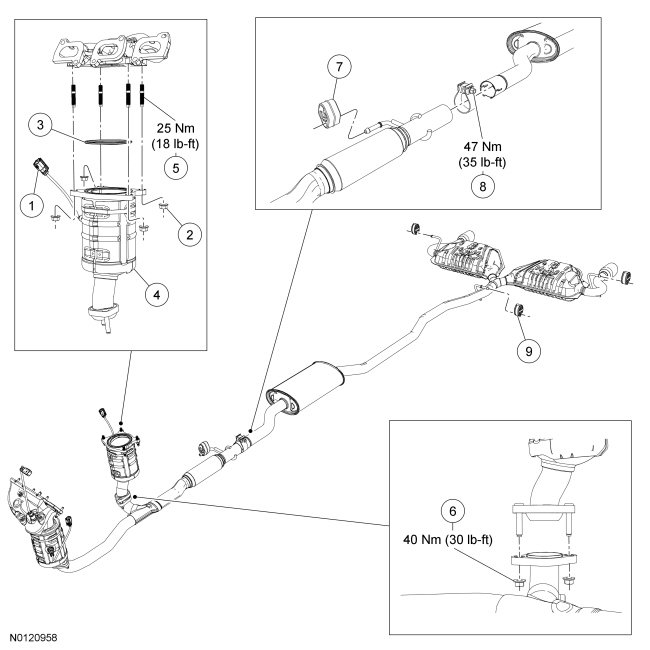

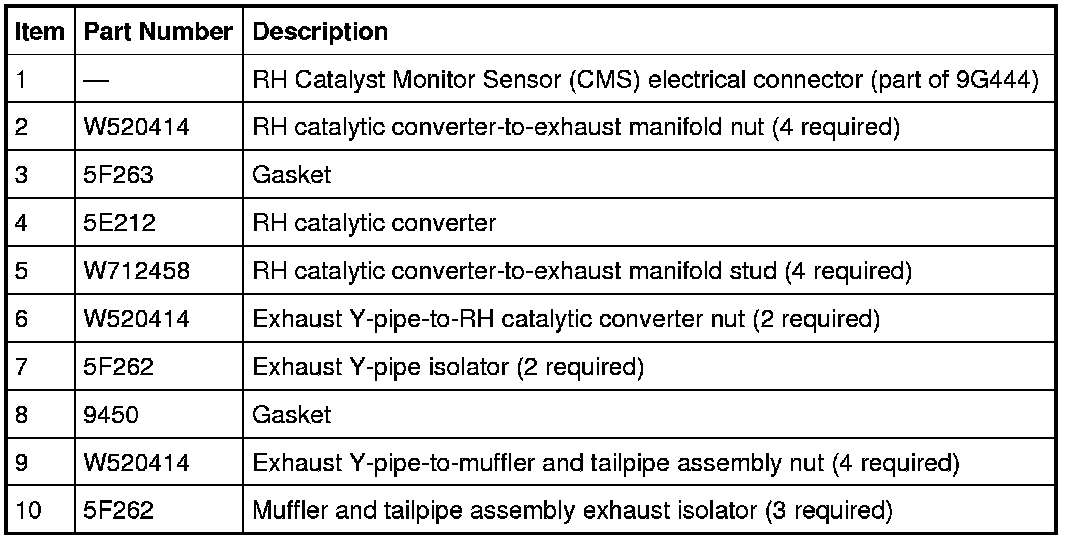

3.7L RH Catalytic Converter and Exhaust Pipes










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
