Exhaust System
Exhaust System
- Exploded View

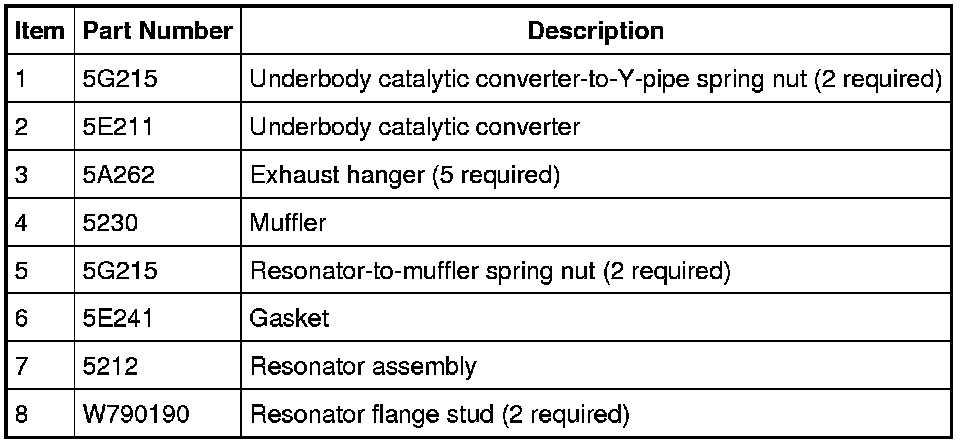

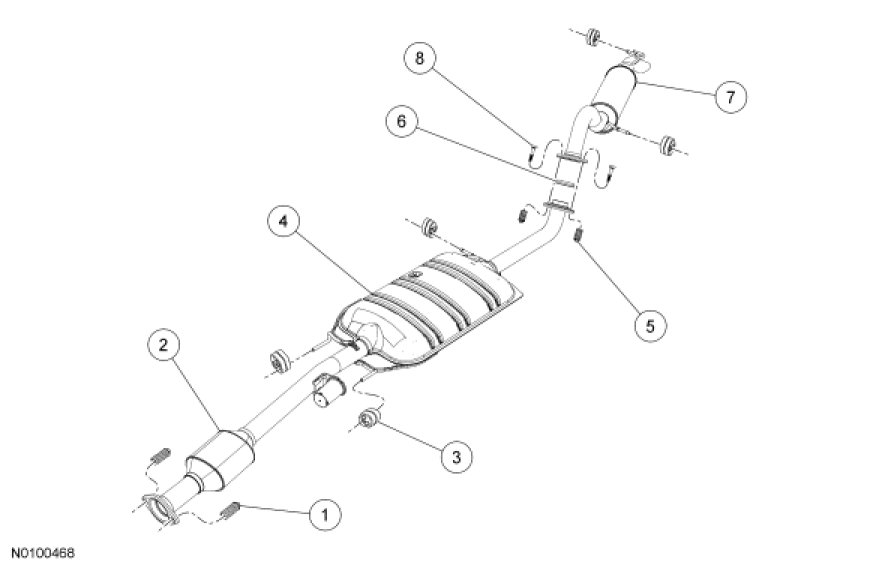

2.5L

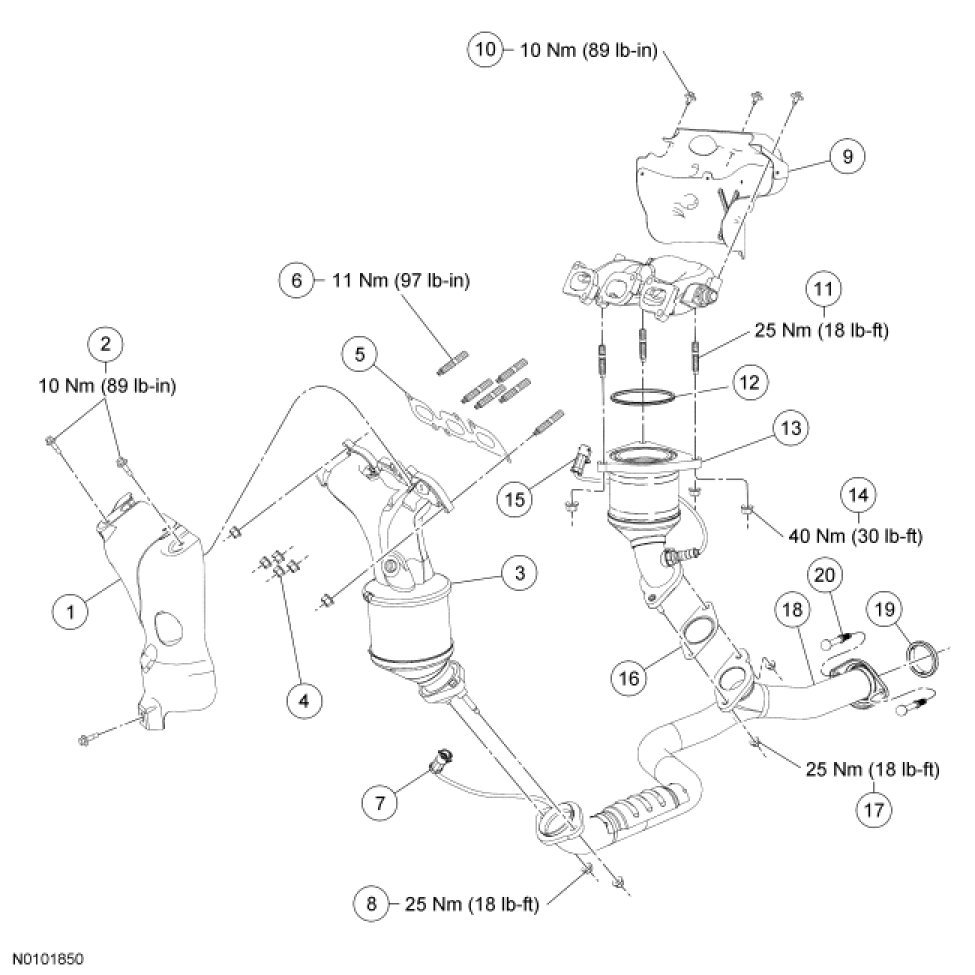

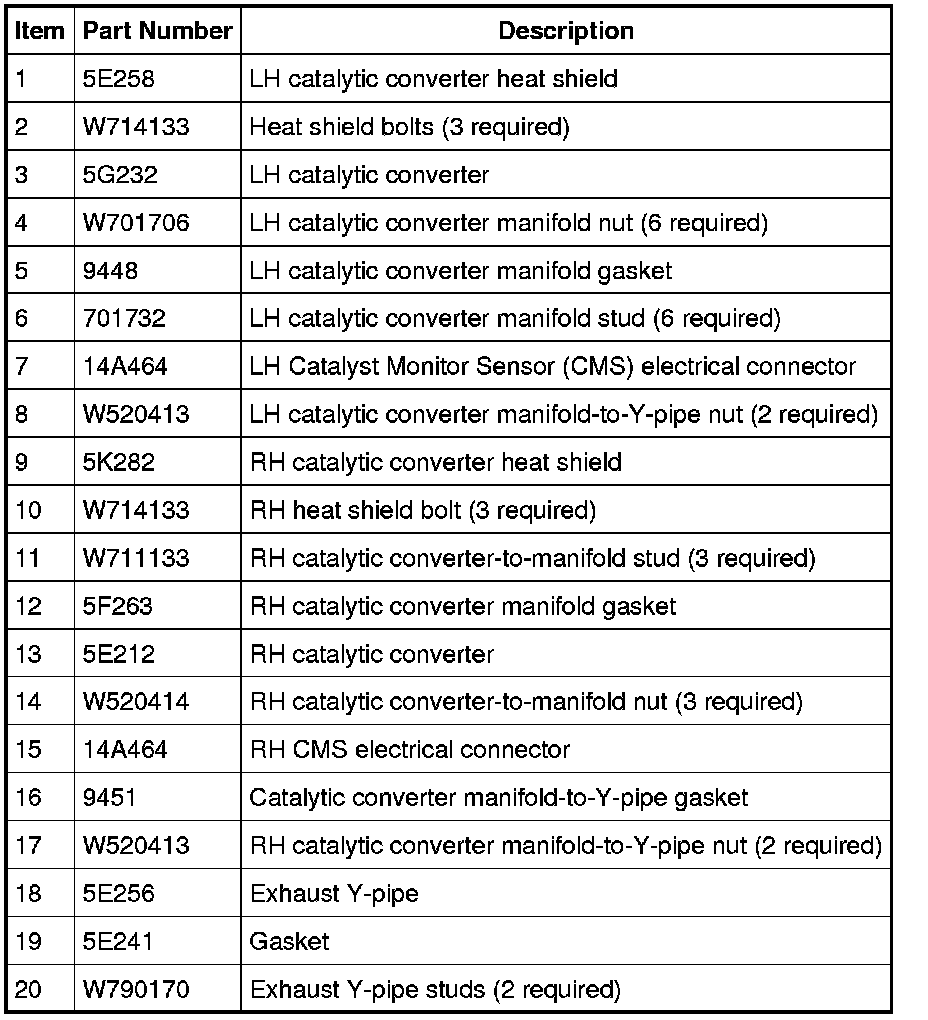

3.0L (View 1 of 2)
3.0L (View 2 of 2)

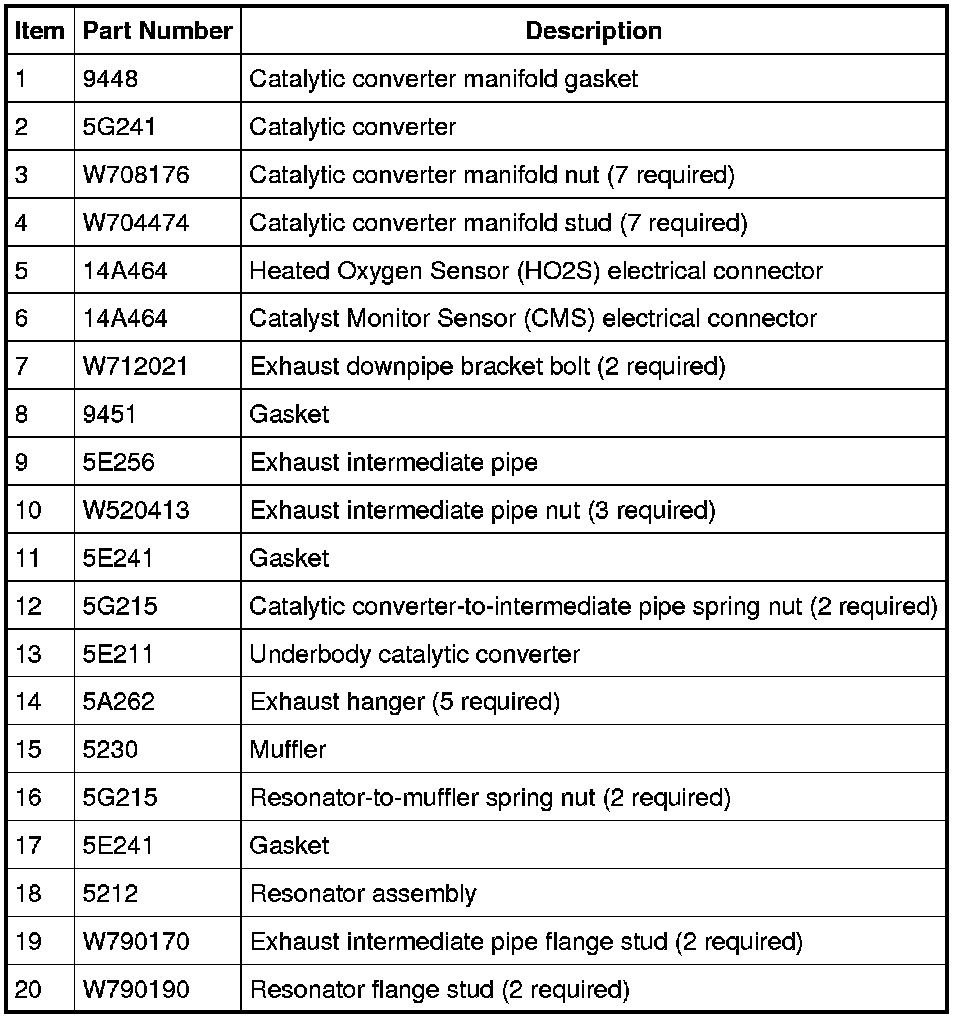

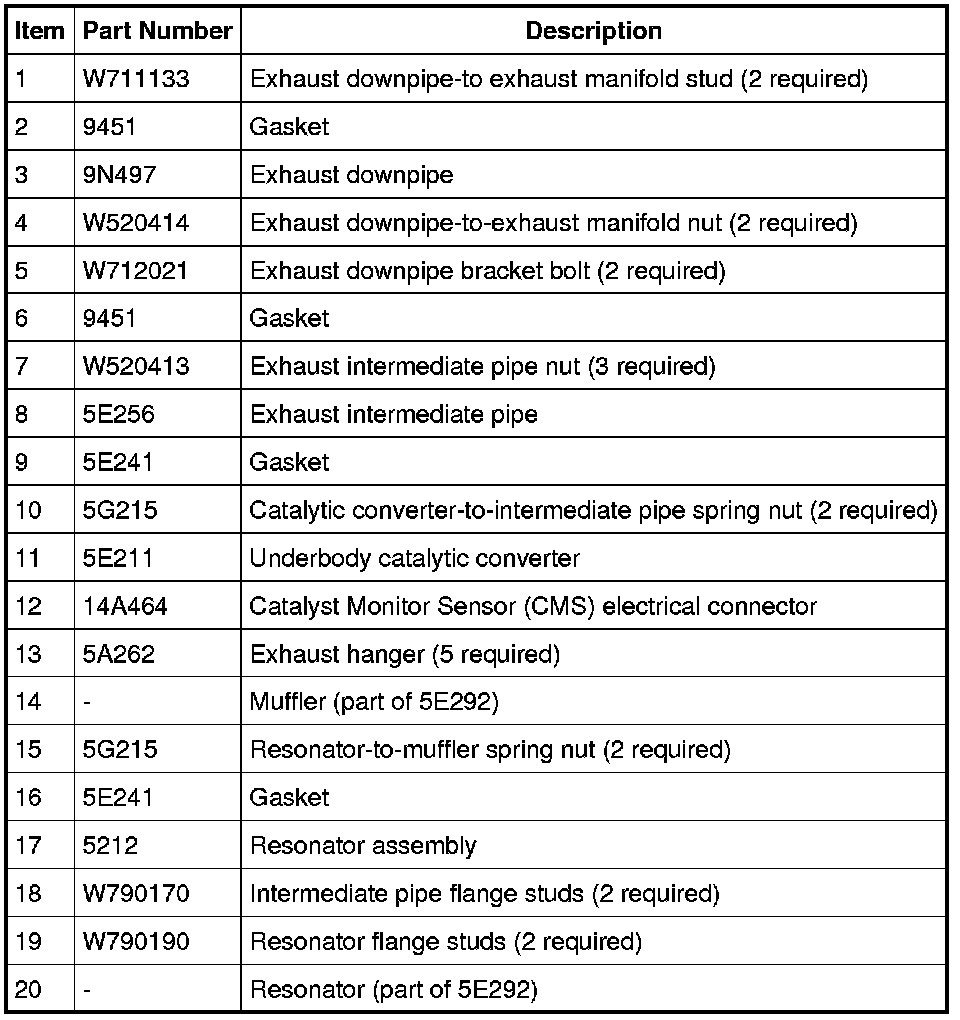

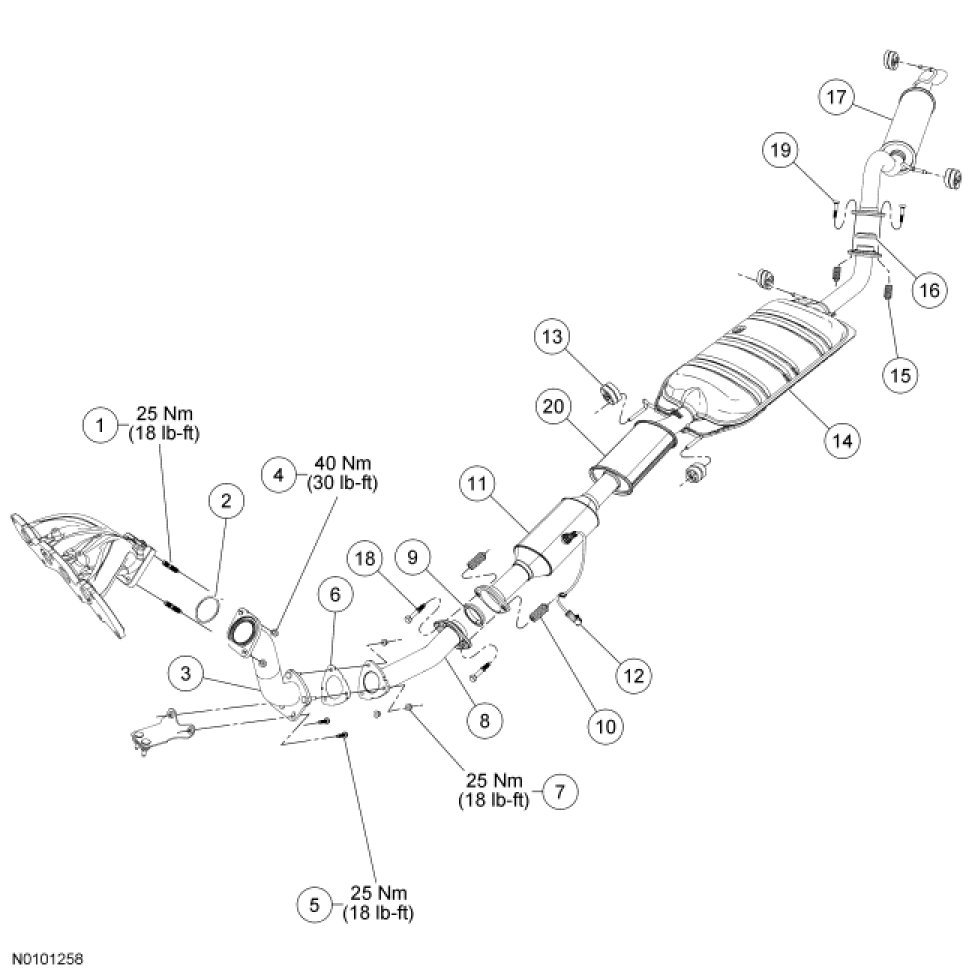

2.5L Hybrid
