Intake Manifold

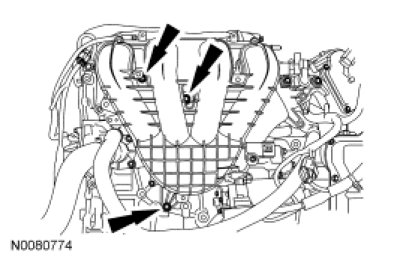

Install the intake manifold gaskets, intake manifold and the 8 bolts.

Tighten to 18 Nm (159 lb-in).
