Control Module: Service and Repair

4X4 Control Module

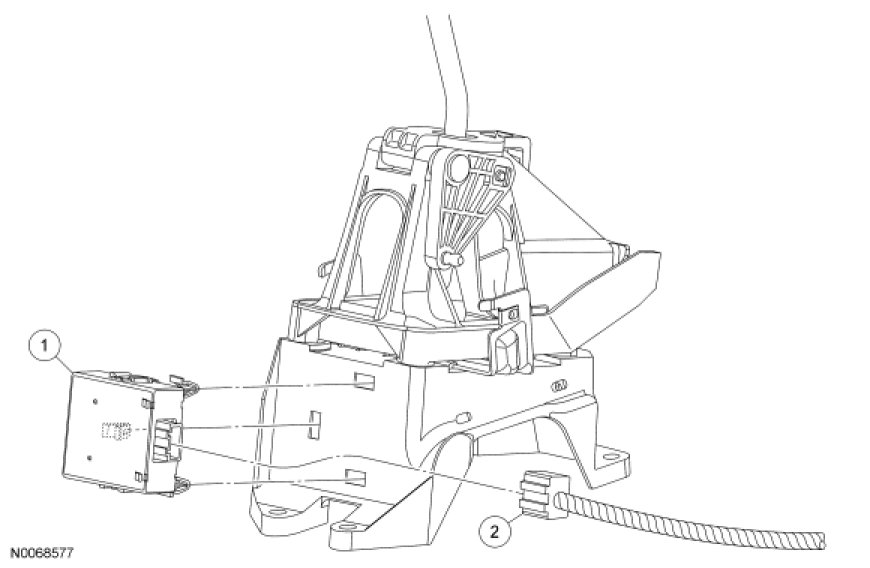

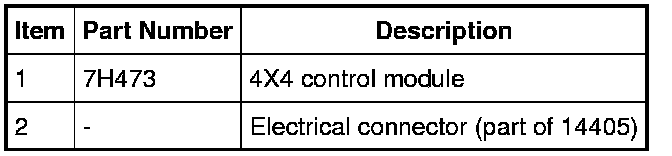

Removal and Installation









1. Remove the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

2. Disconnect the electrical connector.

3. Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.

4. To install, reverse the removal procedure.
