Keyless Entry Key-Pad: Service and Repair

Keyless Entry Keypad









Removal and Installation

1. Remove the exterior mirror. For additional information, refer to Rear View Mirrors Exterior Mirror.

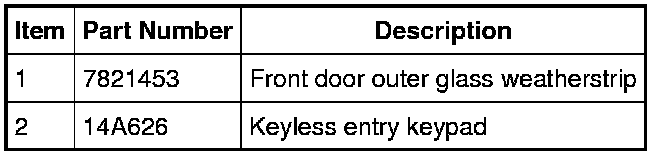

2. Remove the front door outer glass weatherstrip.
- Disconnect the electrical connector.

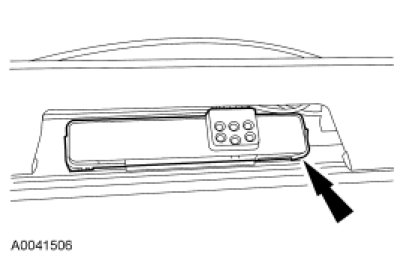

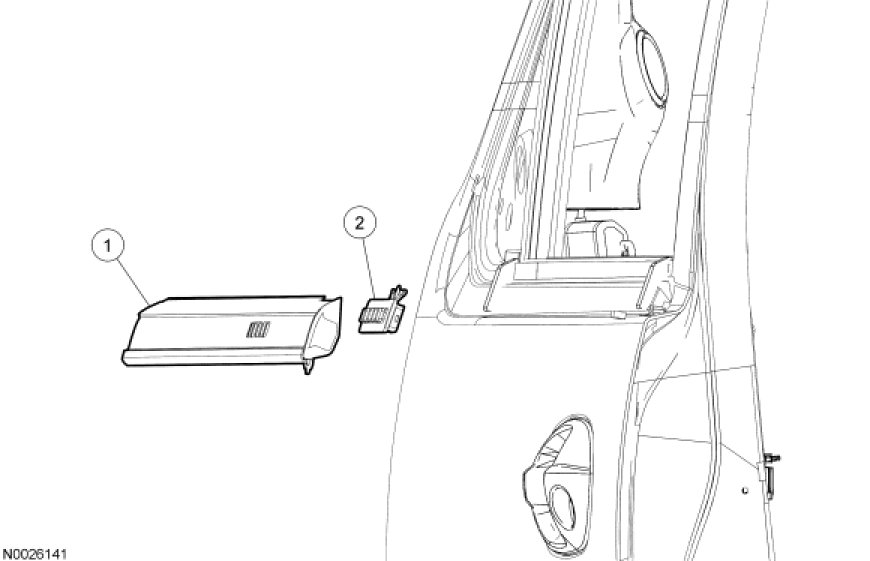

3. Release the tabs and remove the keyless entry keypad.
- Disconnect the keypad harness retaining clips from the weatherstrip.





4. To install, reverse the removal procedure.
