Auxiliary Power Outlet
>>
C2293A DC/AC Inverter Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

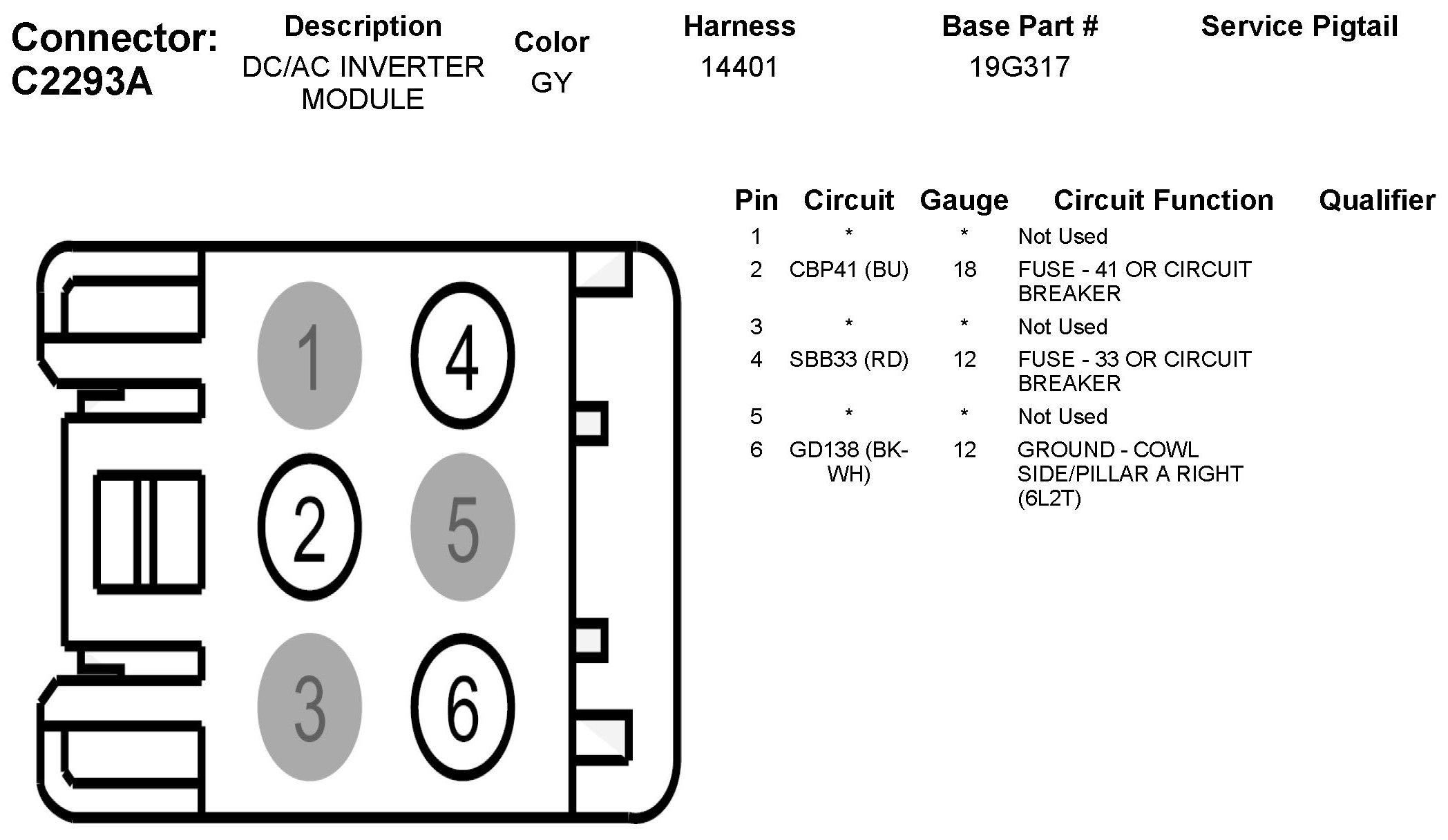

C2293A DC/AC Inverter Module
