Selector Lever Knob: Installation

  1. Connect the tow/haul switch electrical connector and install the selector lever knob.

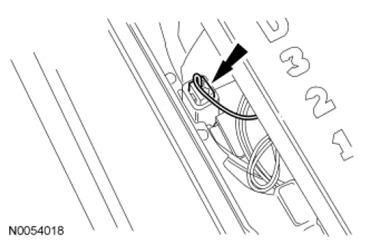

    Fig 1: Locating Tow/Haul Switch Electrical Connector
    G07456446Courtesy of FORD MOTOR CO.
  2. Install a new LH selector lever knob screw.
    • Tighten to 2 Nm (18 lb-in).

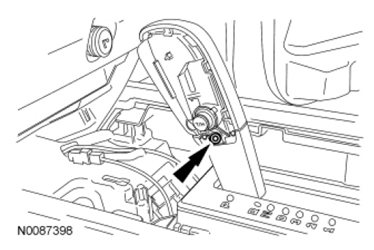

      Fig 2: Locating LH Selector Lever Knob Screw
      G07456447Courtesy of FORD MOTOR CO.
  3. Install a new RH selector lever knob screw.
    • Tighten to 2 Nm (18 lb-in).

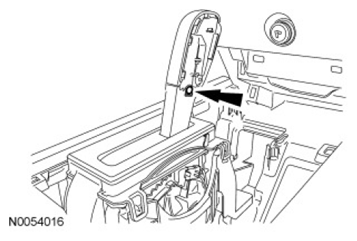

      Fig 3: Locating RH Selector Lever Knob Screw
      G07456448Courtesy of FORD MOTOR CO.
  4. Install a new LH selector lever knob cover.

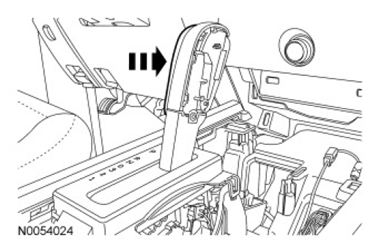

    Fig 4: Installing LH Selector Lever Knob Cover
    G07456449Courtesy of FORD MOTOR CO.
  5. Install a new RH selector lever knob cover.

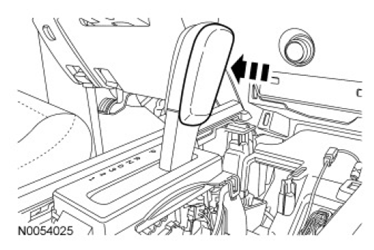

    Fig 5: Installing RH Selector Lever Knob Cover
    G07456450Courtesy of FORD MOTOR CO.
  6. Install the console upper trim and the screw.

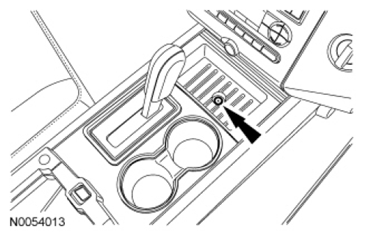

    Fig 6: Locating Console Upper Trim Screw
    G07456451Courtesy of FORD MOTOR CO.
  7. Install the selector lever trim ring, console tray and cup holder insert.

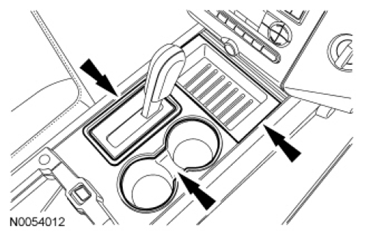

    Fig 7: Locating Selector Lever Trim Ring, Console Tray And Cup Holder Insert
    G07456452Courtesy of FORD MOTOR CO.
