DTC Chart: Cruise Control Module (C-CM)




DTC Chart: Cruise Control Module (C-CM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

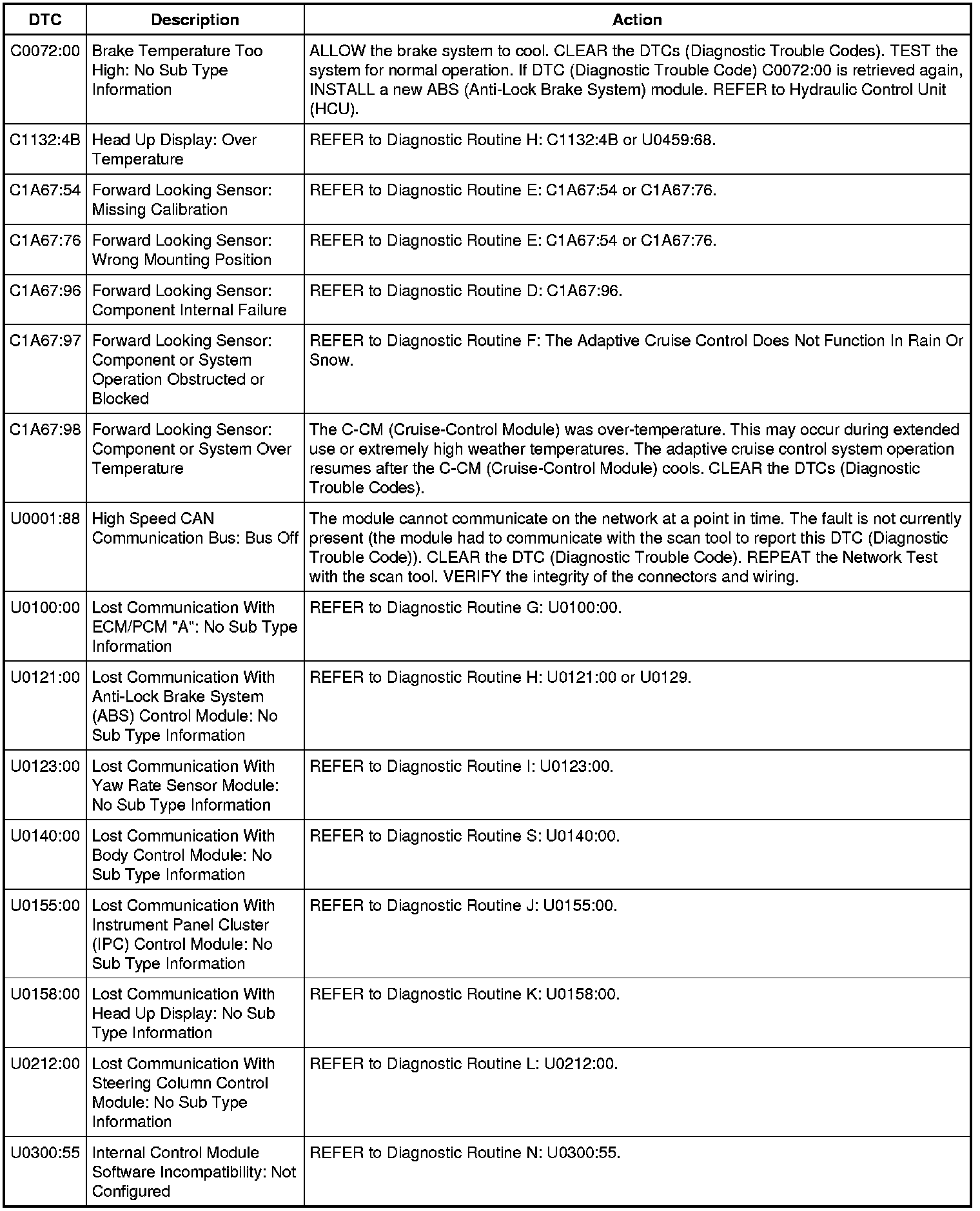

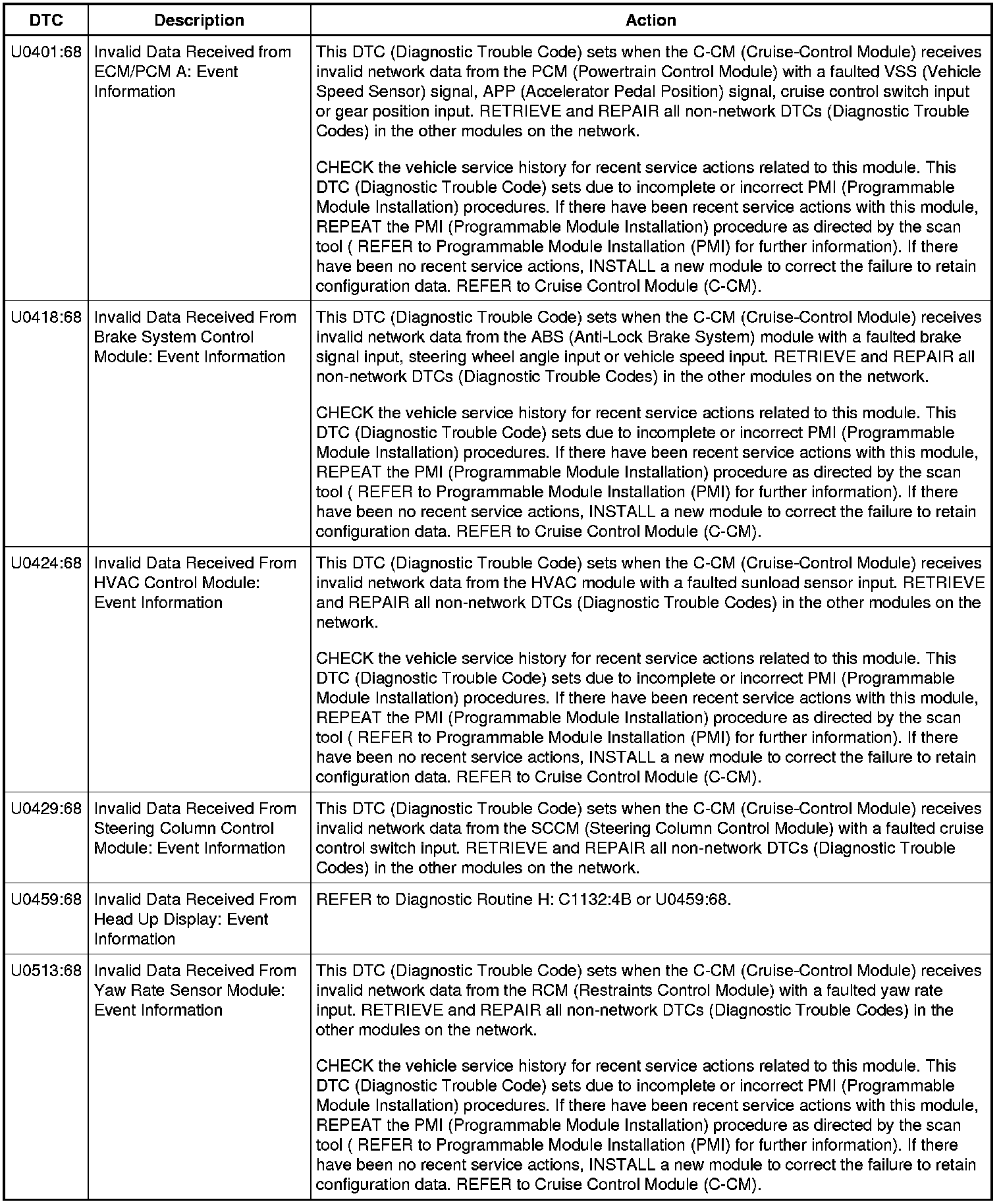

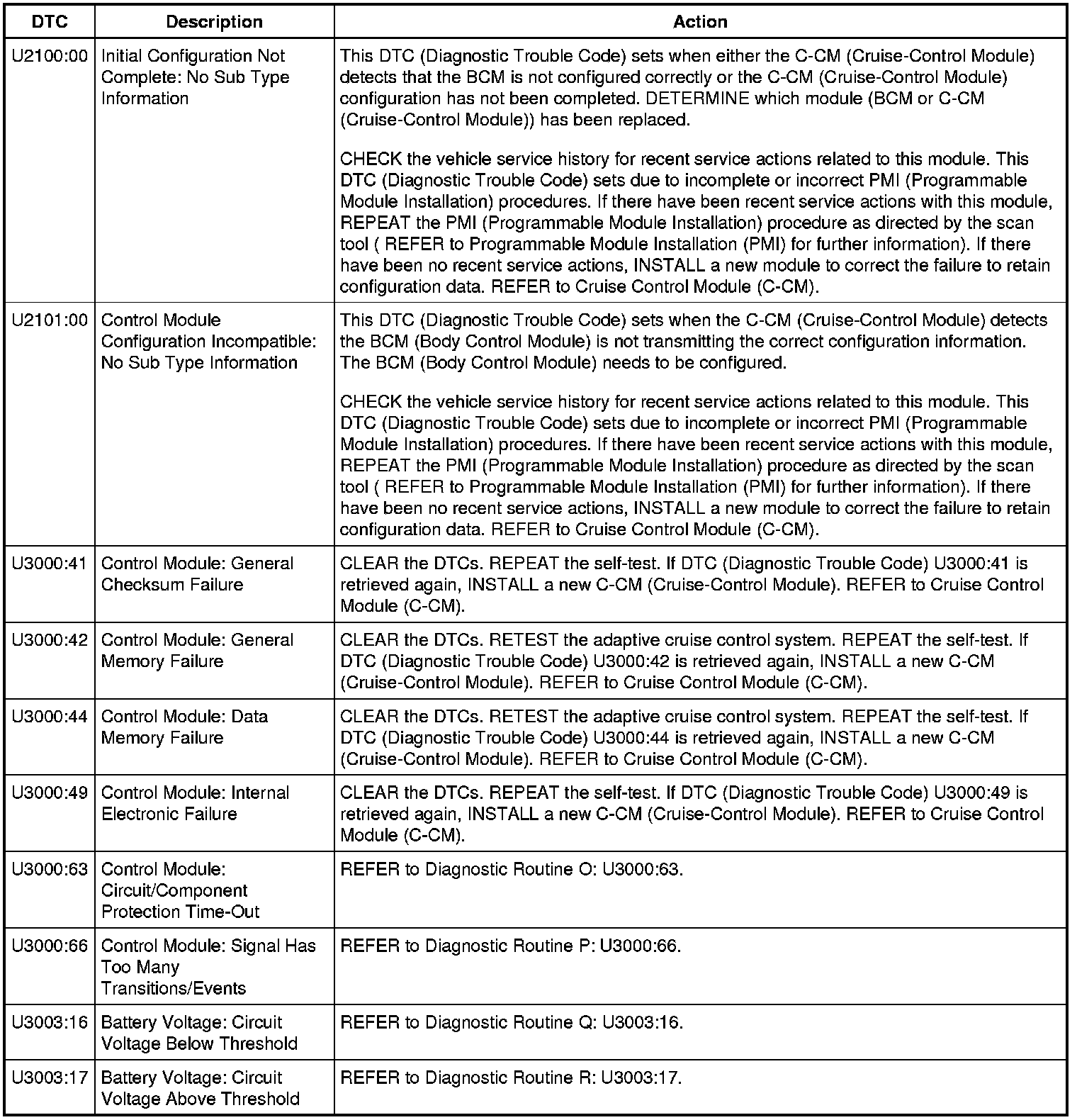

DTC Chart
