All-Wheel Drive (AWD) Relay Module

All-Wheel Drive (AWD) Relay Module

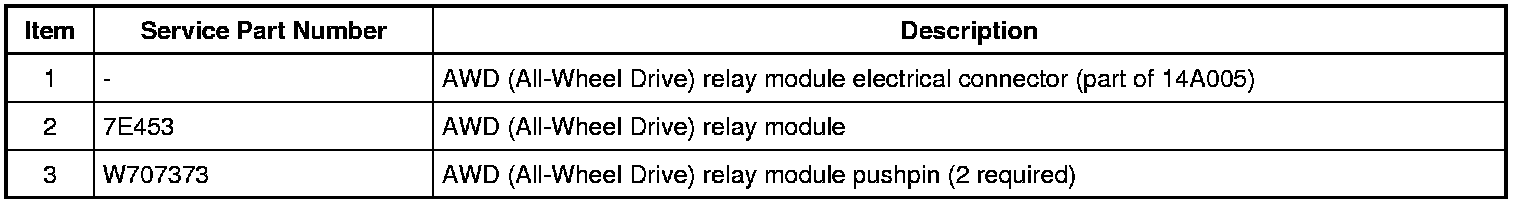

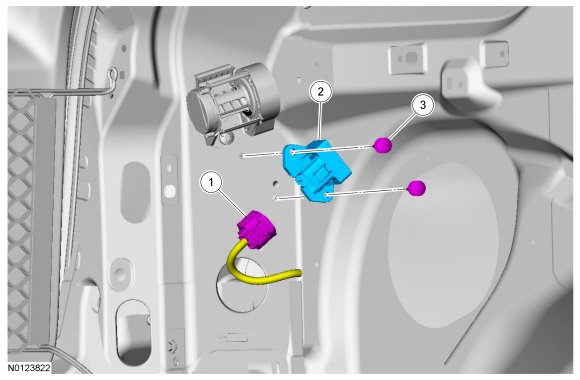

Exploded View










Removal

1. Remove the LH (Left Hand) quarter trim panel. REFER to Removal Quarter Trim Panel - With Inflatable Safety Belts with inflatable safety belts or REFER to Removal Quarter Trim Panel - Without Inflatable Safety Belts without inflatable safety belts.

2. Disconnect the AWD (All-Wheel Drive) relay module electrical connector.

3. Remove the 2 pushpins and the AWD (All-Wheel Drive) relay module.

Installation

1. Install the AWD (All-Wheel Drive) relay module and the 2 pushpins.

2. Connect the AWD (All-Wheel Drive) relay module electrical connector.

3. Install LH (Left Hand) quarter trim panel. REFER to Installation Quarter Trim Panel - With Inflatable Safety Belts with inflatable safety belts or REFER to Installation Quarter Trim Panel - Without Inflatable Safety Belts without inflatable safety belts.
