Refrigerant Oil

Climate Control - EMTC, DATC

Item Motorcraft(R) PAG Refrigerant Compressor Oil YN-12-D
Specification WSH-M1C231-B

Fill Capacity 260 ml (8.8 fl. oz)

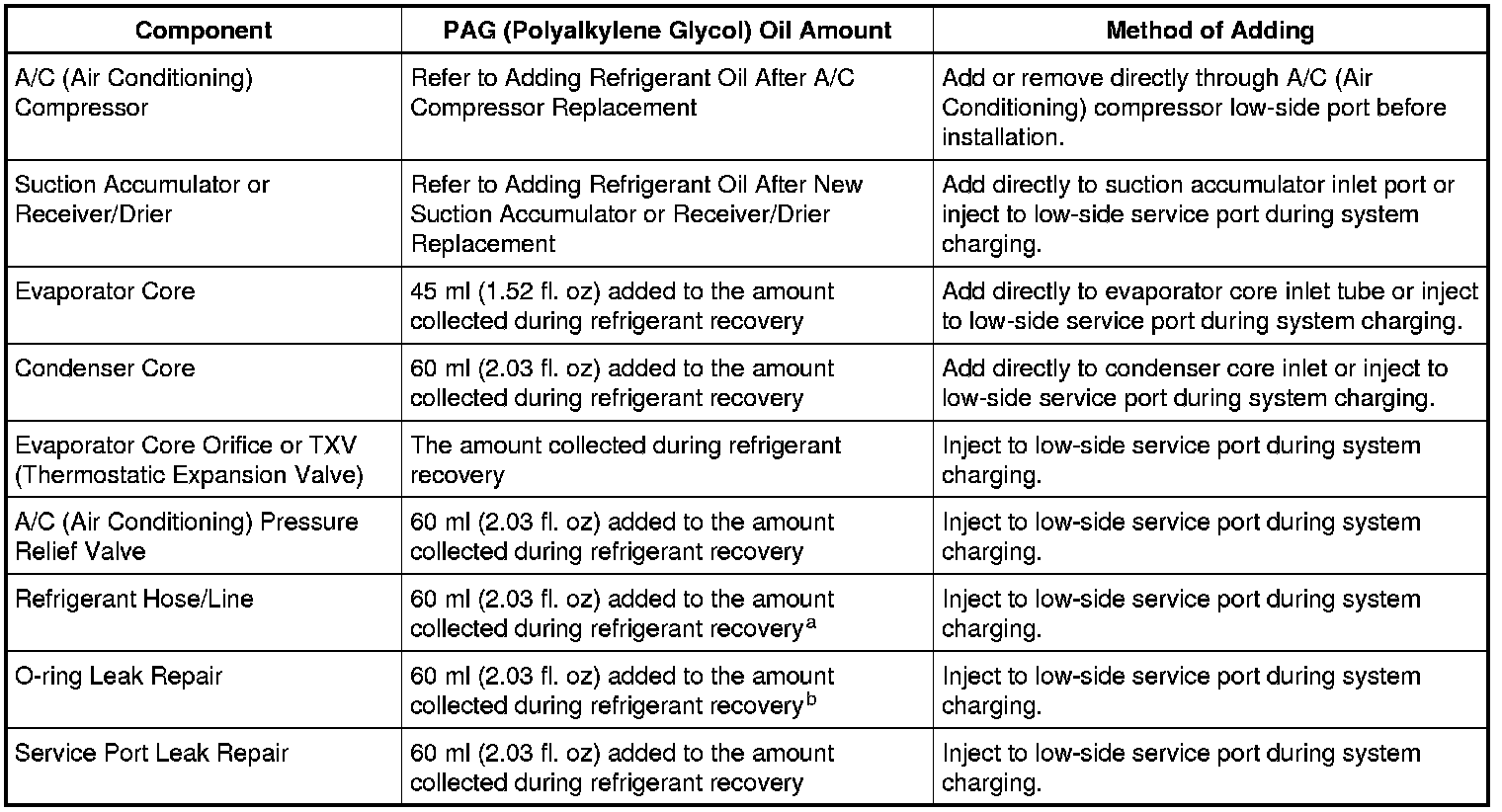

a If an excessive amount of PAG (Polyalkylene Glycol) oil is lost due to a hose rupture/separation or other damage, the total system PAG (Polyalkylene Glycol) oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the PAG (Polyalkylene Glycol) oil amount by the number of O-ring leaks being repaired.











a If an excessive amount of PAG (Polyalkylene Glycol) oil is lost due to a hose rupture/separation or other damage, the total system PAG (Polyalkylene Glycol) oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the PAG (Polyalkylene Glycol) oil amount by the number of O-ring leaks being repaired.
