Selector Lever - Paddle Shift: Installation

  1. Connect the paddle shifter electrical connector.

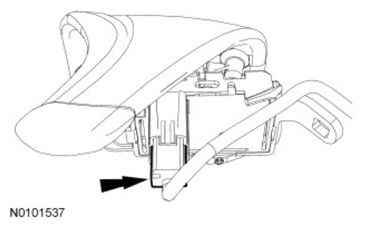

    Fig 1: Locating Paddle Shifter Electrical Connector
    G07465096Courtesy of FORD MOTOR CO.
  2. Install the paddle shifter on the steering wheel and position the corner of the back steering wheel trim cover back in place.

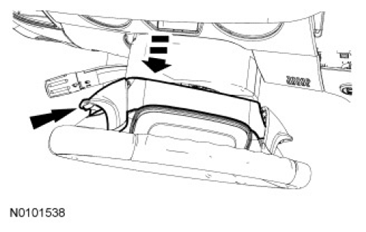

    Fig 2: Installing Paddle Shifter On Steering Wheel
    G07465097Courtesy of FORD MOTOR CO.
  3. Install the 2 paddle shifter screws.

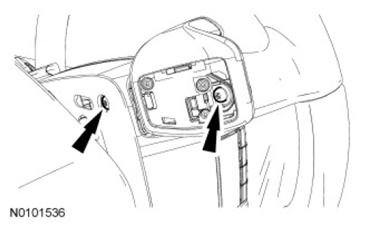

    Fig 3: Locating Paddle Shifter Screws
    G07465098Courtesy of FORD MOTOR CO.
  4. Install the paddle shifter cover.

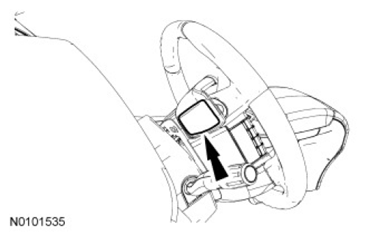

    Fig 4: Locating Paddle Shifter Cover
    G07465099Courtesy of FORD MOTOR CO.
  5. Install the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
