Selector Lever Cable: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the selector lever trim ring.

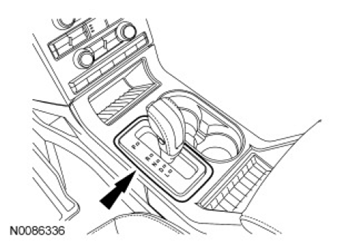

Fig 1: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Lift upward and open the storage compartment lid.
Remove the floor console finish panel.

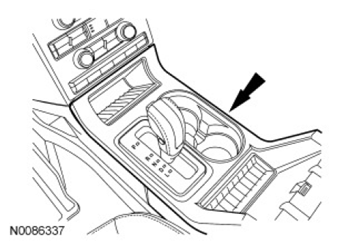

Fig 2: Locating Upper Console Finish Panel
Courtesy of FORD MOTOR CO.
Pull the floor console trim panel outward to release the retaining clips.

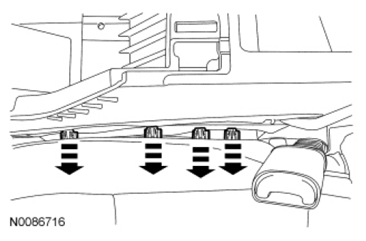

Fig 3: Releasing Retaining Clips
Courtesy of FORD MOTOR CO.
Pull the front of the floor console trim panel downward to detach the trim panel from the pin-type retainers.

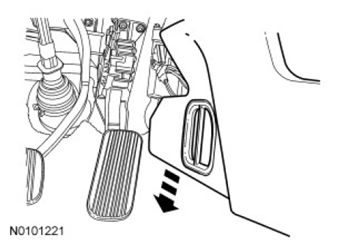

Fig 4: Pulling Front Of Floor Console Trim Panel
Courtesy of FORD MOTOR CO.
NOTE: Cardboard or equivalent must be used when removing the floor console trim panel or damage to the console may occur.

Place a piece of cardboard between the floor console trim panel and the center console.

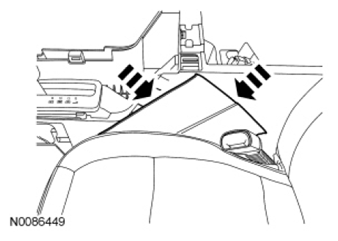

Fig 5: Placing Cardboard Between Floor Console Trim Panel And Center Console
Courtesy of FORD MOTOR CO.
Remove the floor console trim panel and cardboard simultaneously.
Disconnect the selector lever cable from the selector lever.

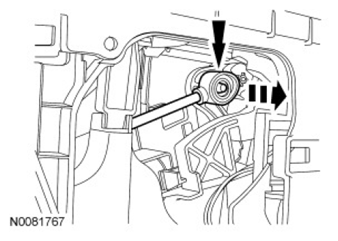

Fig 6: Disconnecting Selector Lever Cable From Selector Lever
Courtesy of FORD MOTOR CO.
Remove the selector cable from the selector lever cable bracket.

Fig 7: Removing Selector Cable From Selector Lever Cable Bracket
Courtesy of FORD MOTOR CO.
NOTE: Console removed for clarity.

Disconnect the selector lever cable retainer from the floor and route the cable out from under the heater housing.

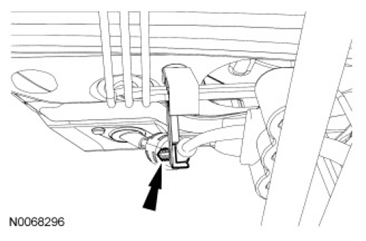

Fig 8: Disconnecting Selector Lever Cable Retainer From Floor
Courtesy of FORD MOTOR CO.
Remove the selector lever cable grommet nuts at the bulkhead.

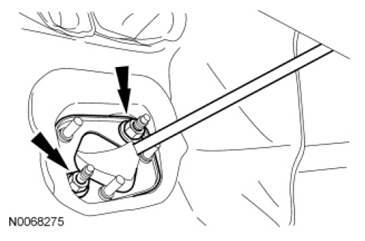

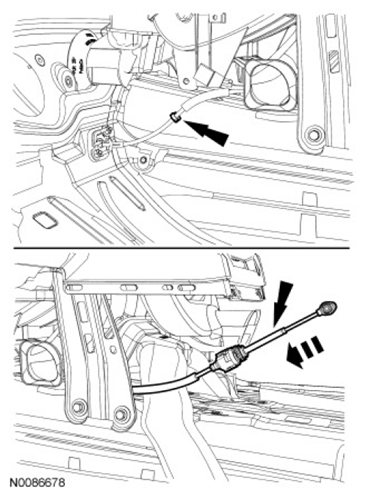

Fig 9: Locating Selector Lever Cable Grommet Nuts
Courtesy of FORD MOTOR CO.
Disconnect the Mass Air Flow (MAF) sensor connector.

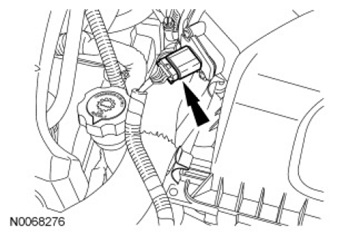

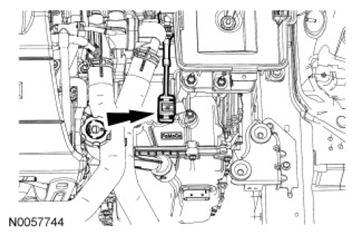

Fig 10: Locating Mass Air Flow Sensor Connector
Courtesy of FORD MOTOR CO.

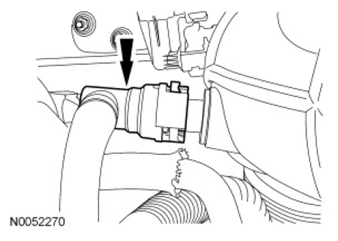

Disconnect the engine breather from the Air Cleaner (ACL) assembly.

Fig 11: Locating Engine Breather Of Air Cleaner (ACL) Assembly
Courtesy of FORD MOTOR CO.

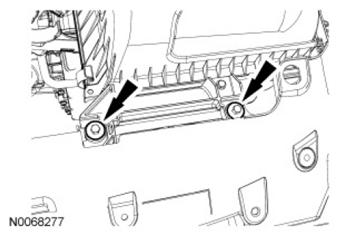

Remove the 2 ACL assembly bolts.

Fig 12: Locating Air Cleaner (ACL) Assembly Bolts
Courtesy of FORD MOTOR CO.
Loosen the ACL outlet pipe clamp at the Throttle Body (TB) and remove the ACL and ACL outlet pipe assembly.

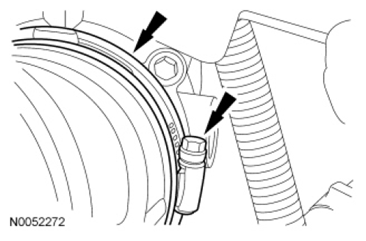

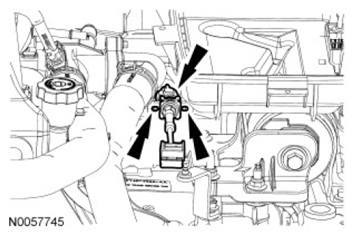

Fig 13: Locating Air Cleaner Outlet Pipe Clamp And Assembly
Courtesy of FORD MOTOR CO.
Disconnect the selector lever cable retainer from the brake tube bracket.

Fig 14: Locating Selector Lever Cable Retainer
Courtesy of FORD MOTOR CO.

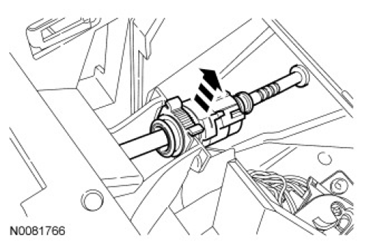

Disconnect the selector lever cable end from the manual control lever.

Fig 15: Locating Selector Lever Cable
Courtesy of FORD MOTOR CO.
Depress the 2 tabs, remove the selector lever cable from the bracket and remove the selector lever cable.

Fig 16: Locating Tabs And Selector Lever Cable
