Home >> Ford >> 2011 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> C2402 Front Controls Interface Module (FCIM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

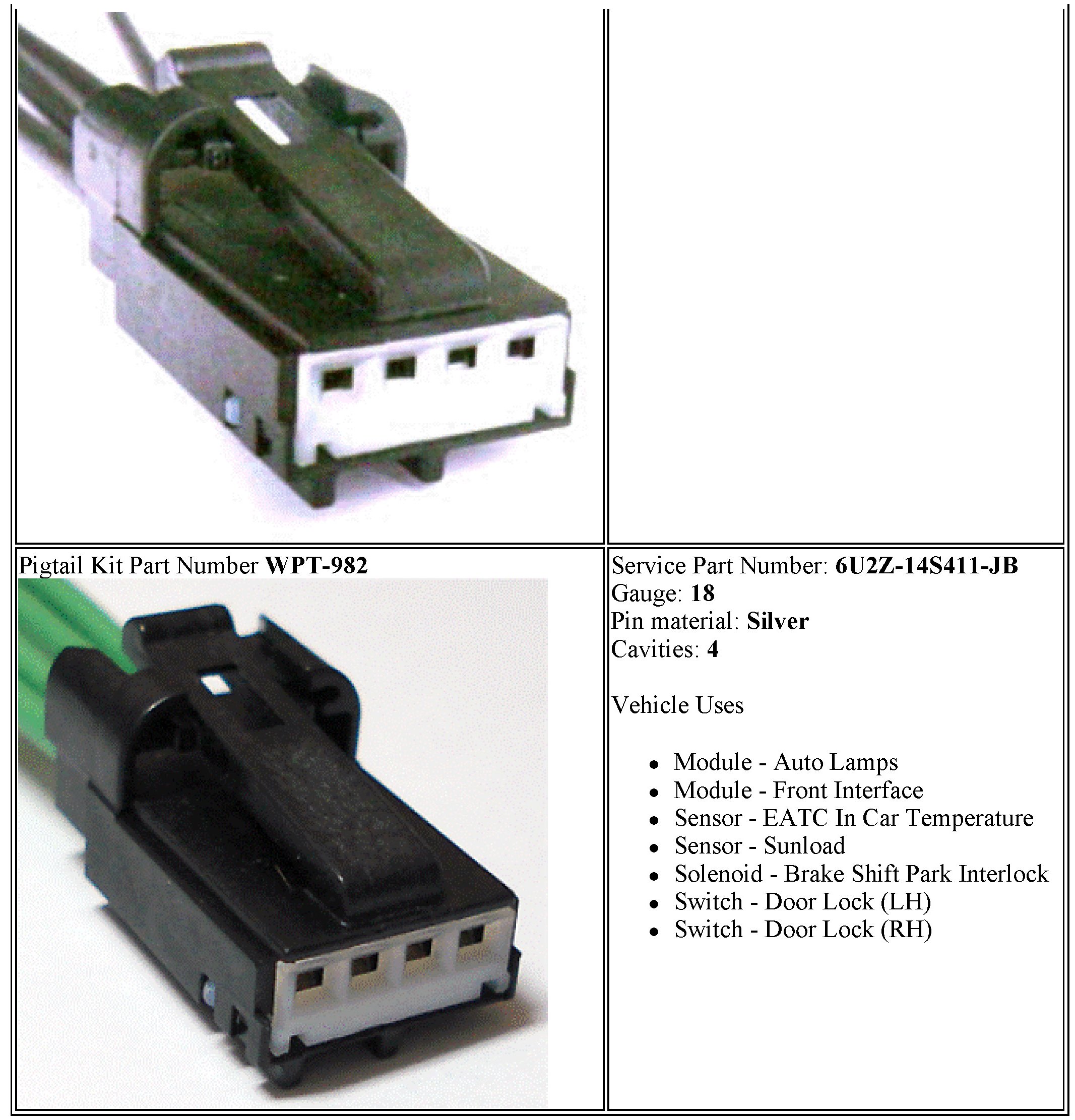

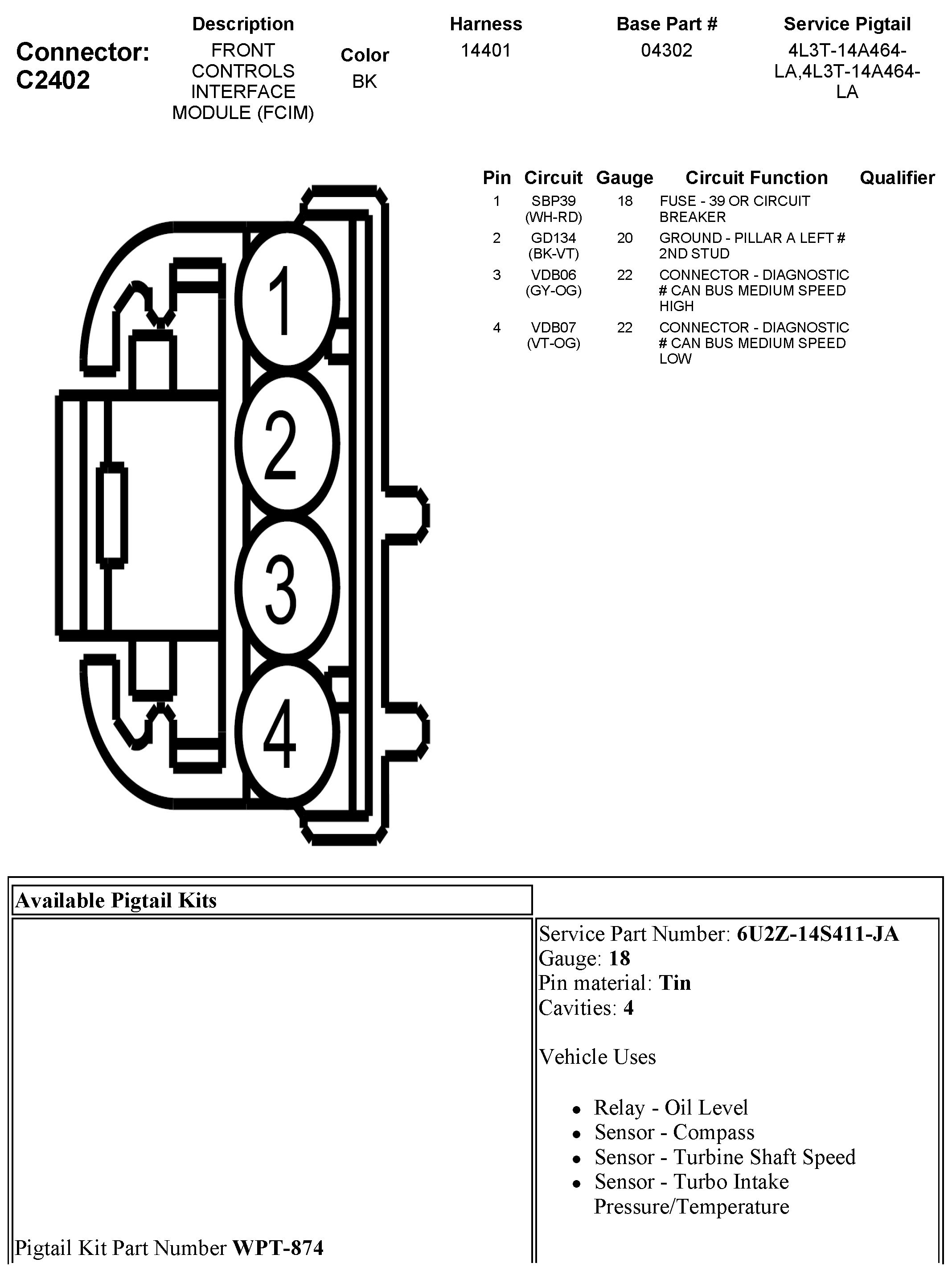

C2402 Front Controls Interface Module (FCIM)
