Fuel Supply Line

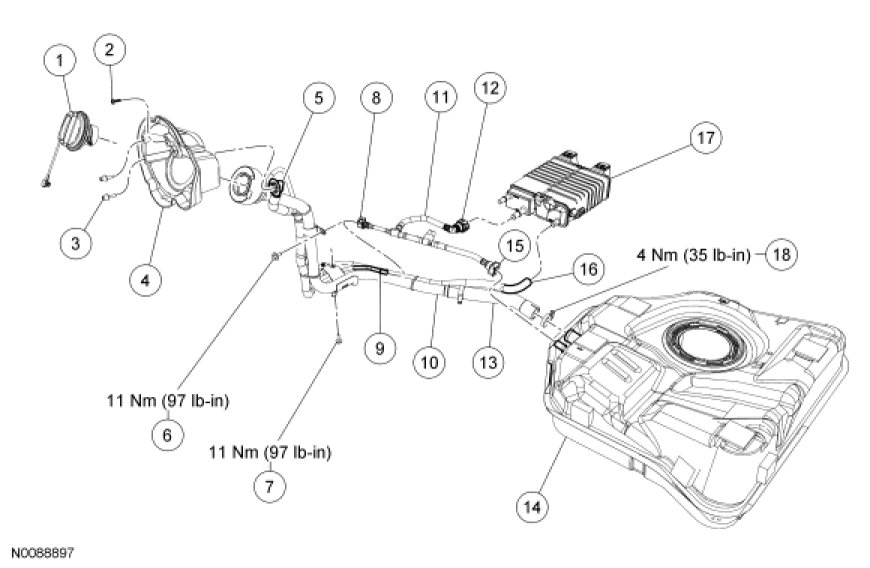

Fuel Tank and Filler Pipe - Exploded View

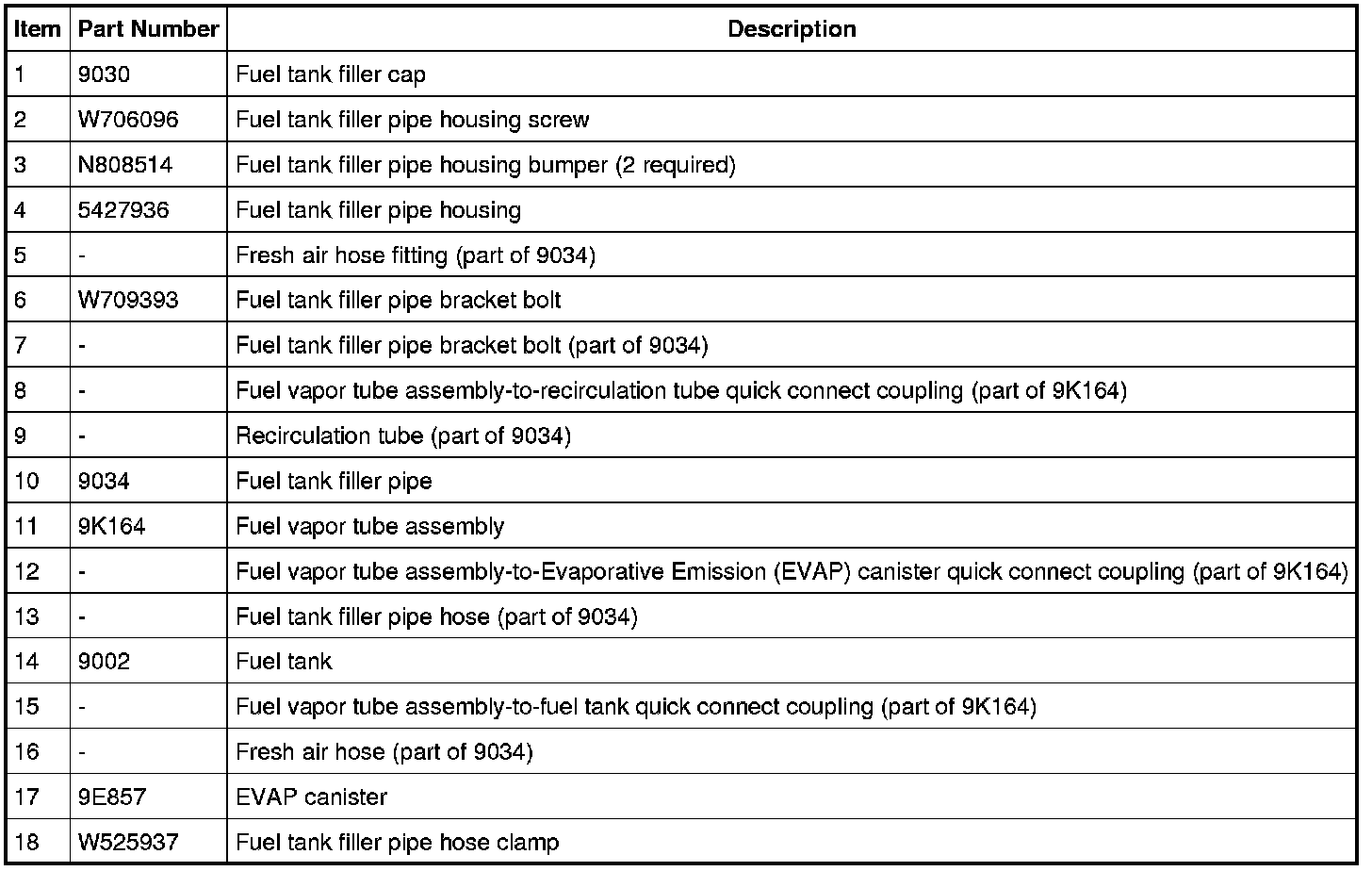

Fuel Tank Filler Pipe Assembly

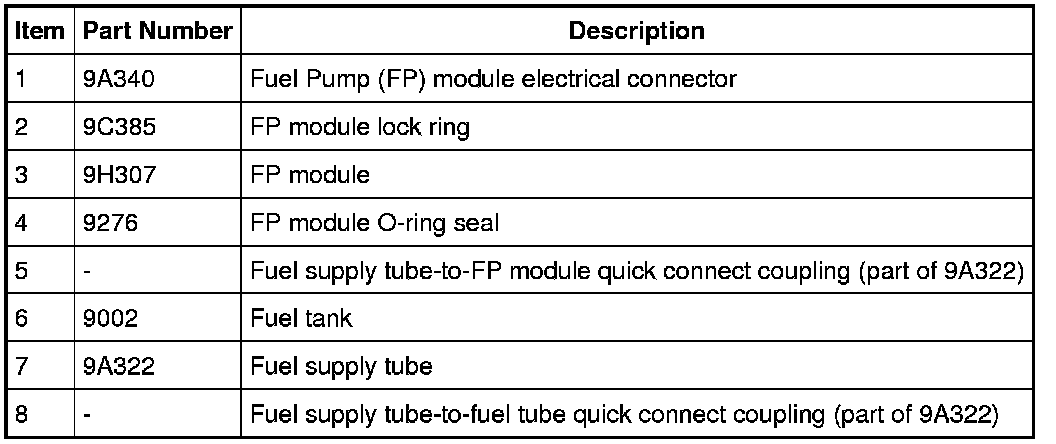

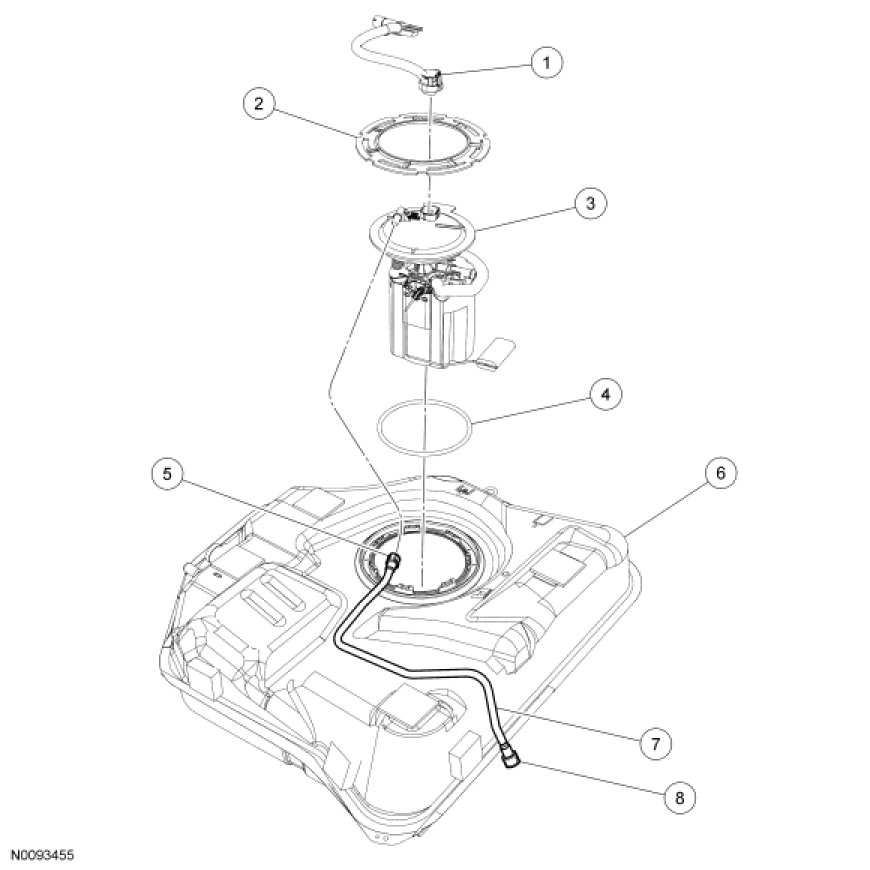

Fuel Tank Assembly

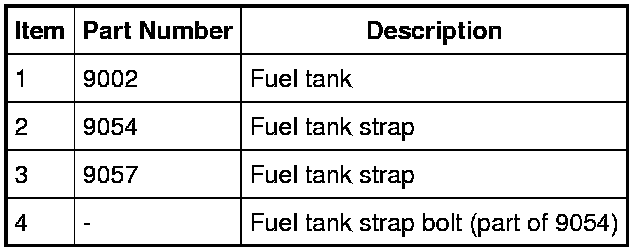

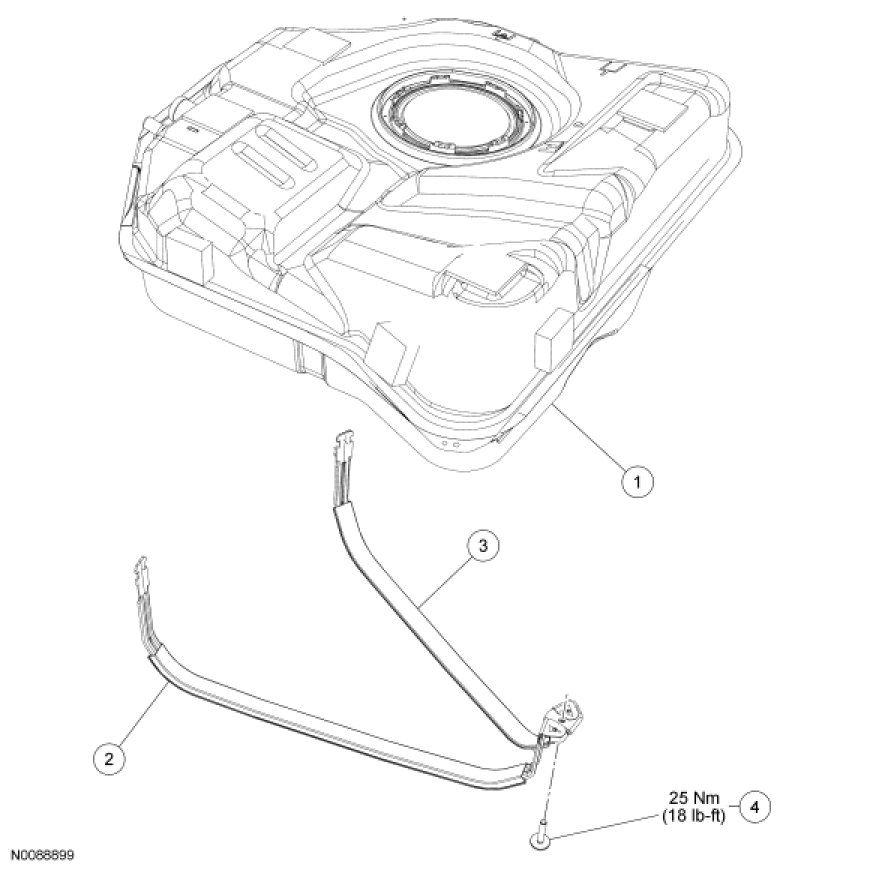

Fuel Tank Supports
