Oil Filter, Engine

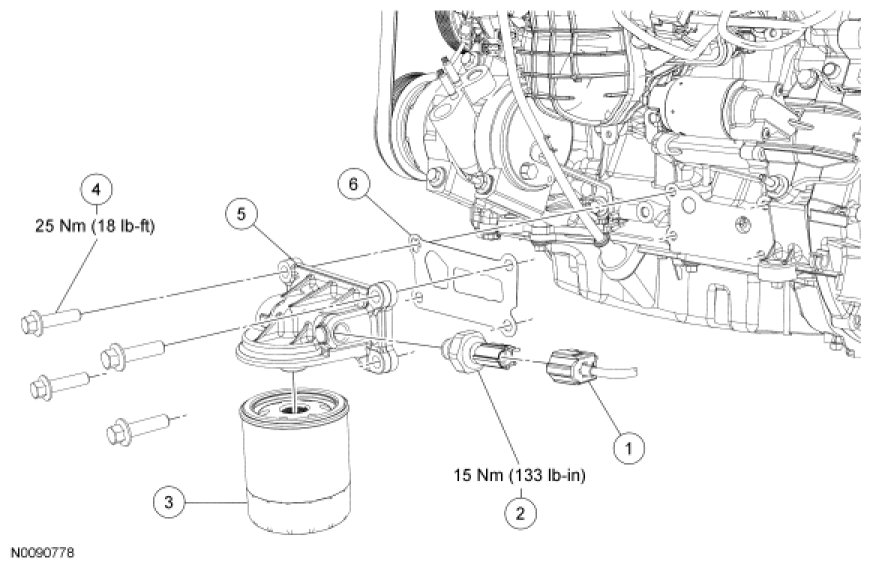

Engine Lubrication Components - Exploded View

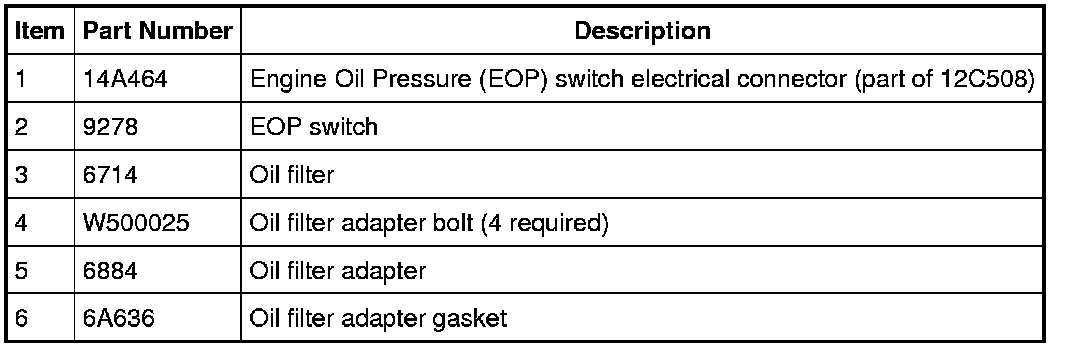

Oil Filter, Oil Filter Adapter and Engine Oil Pressure (EOP) Switch
