Seat Temperature Control Module

Seat - Exploded View, Front

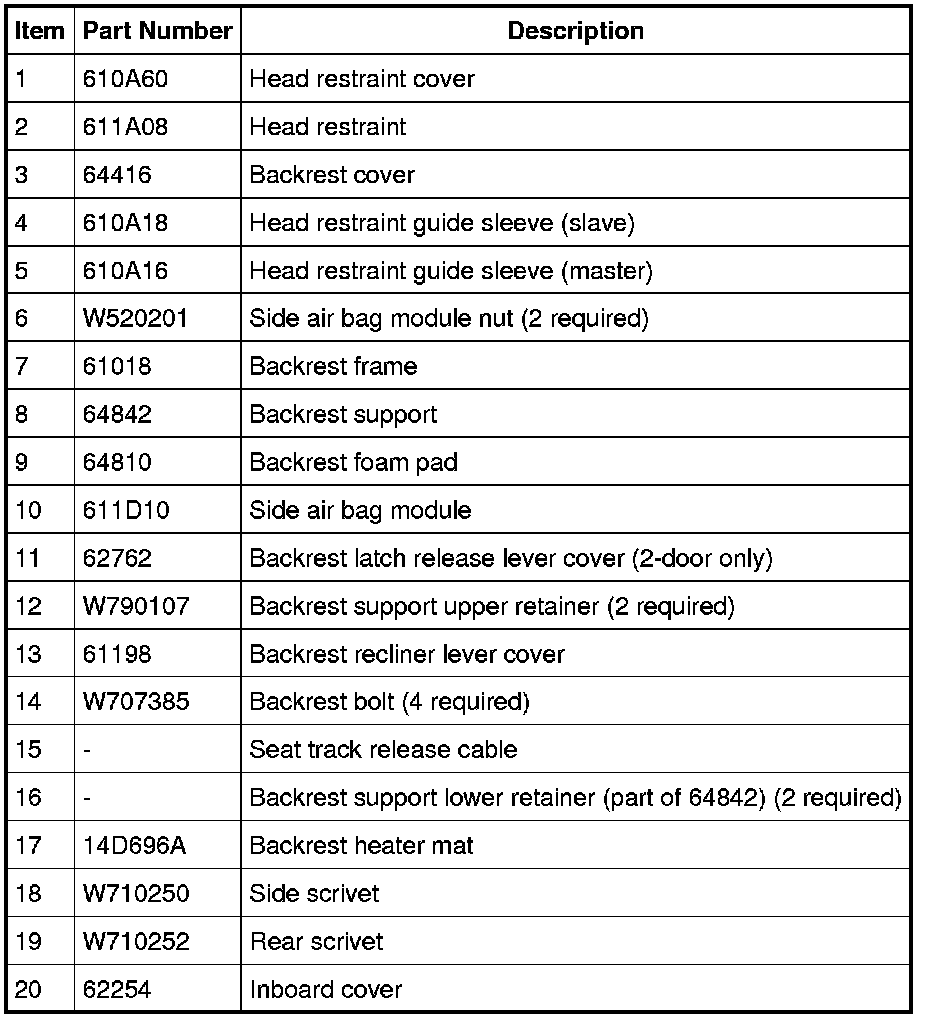

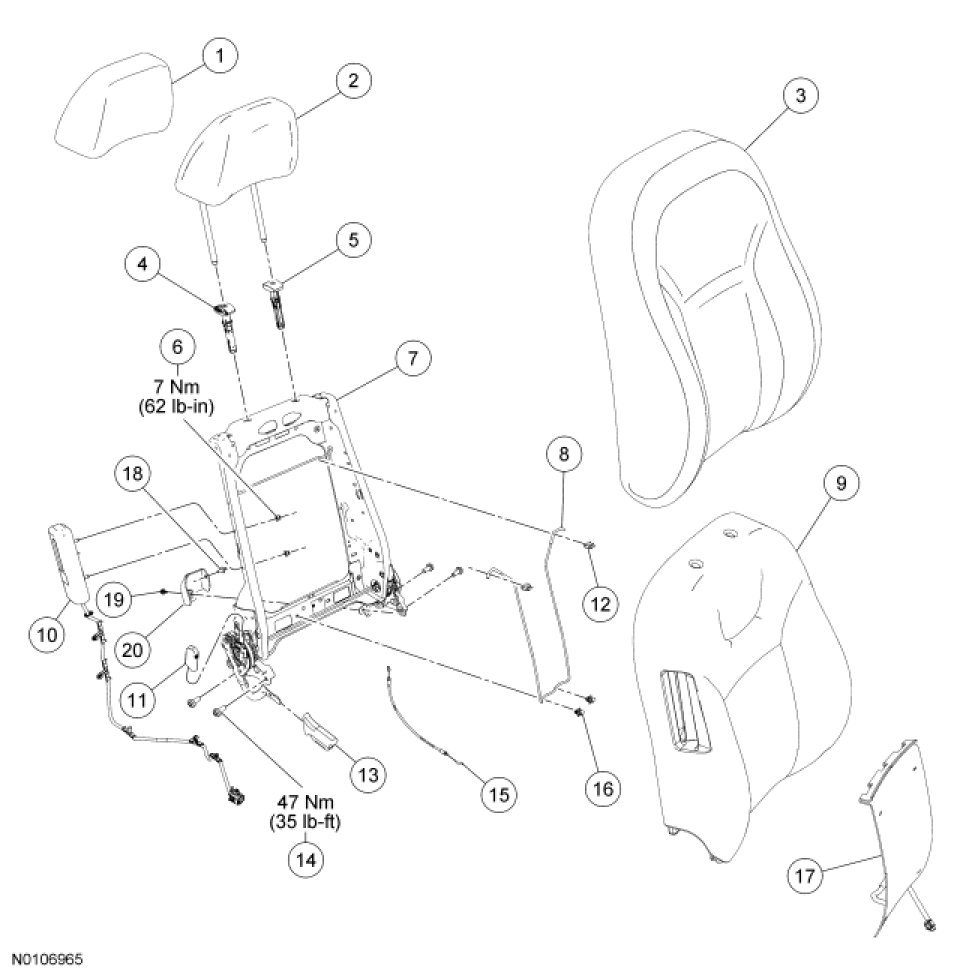

Seat Backrest - Driver

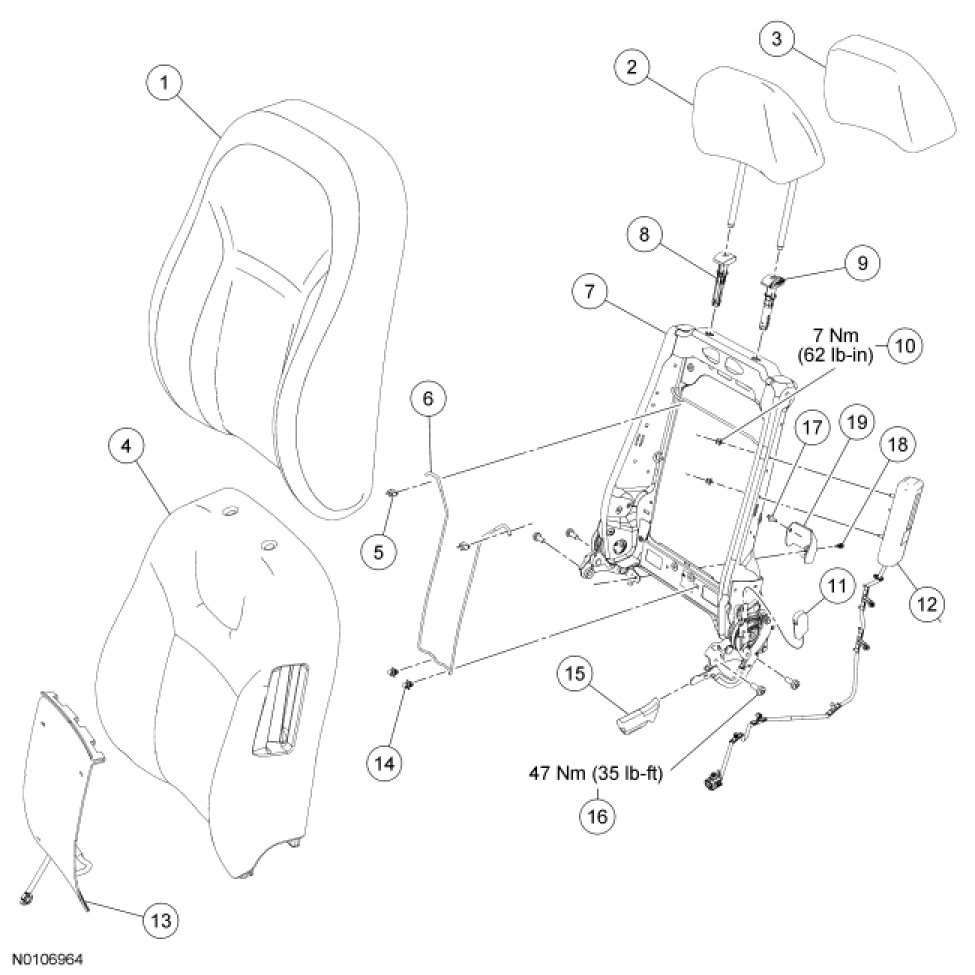

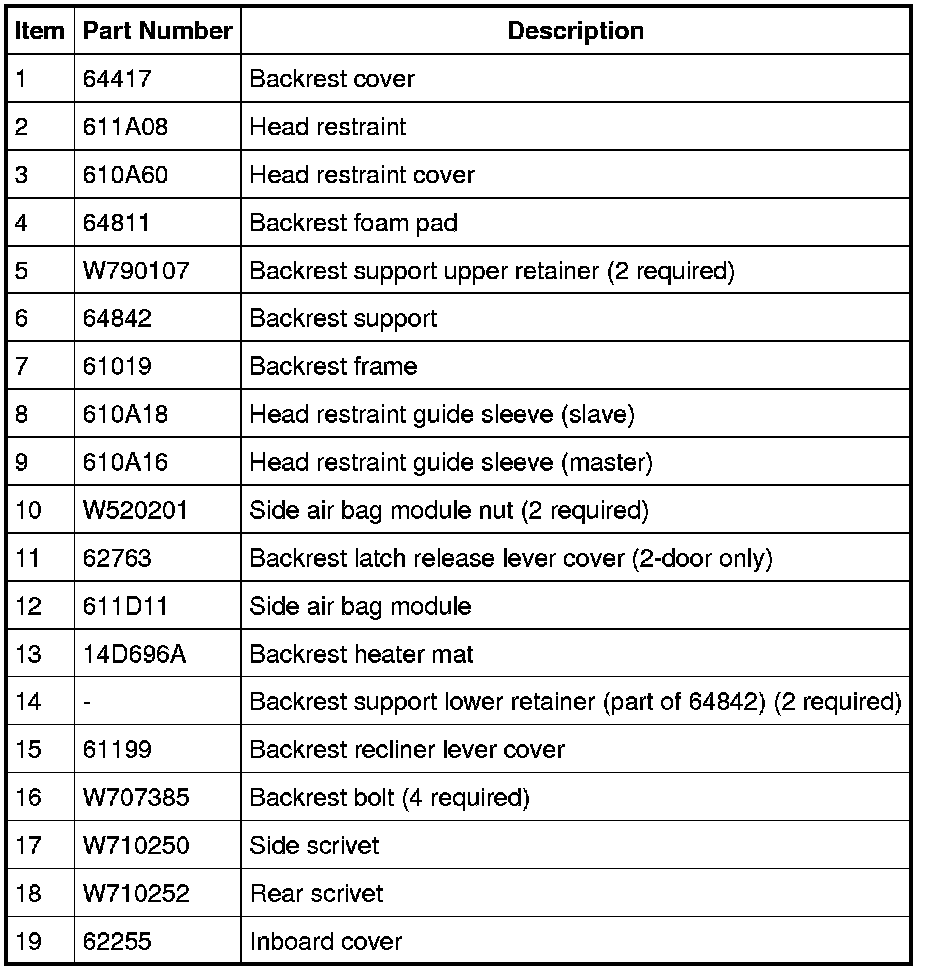

Seat Backrest - Front Passenger

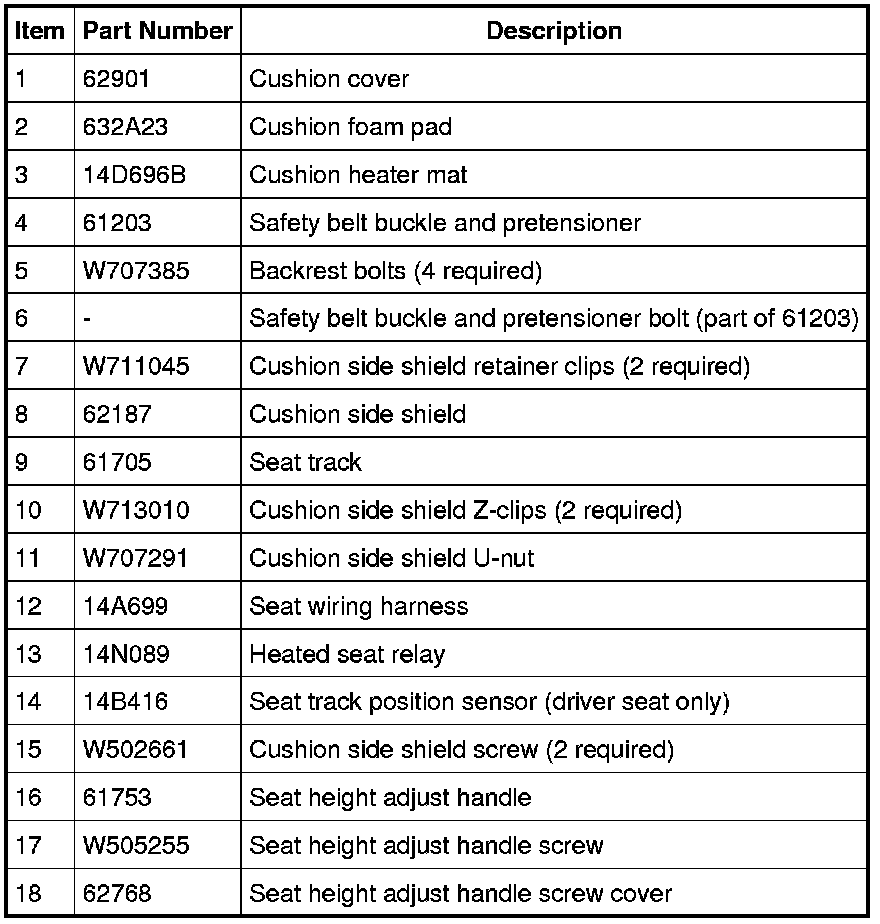

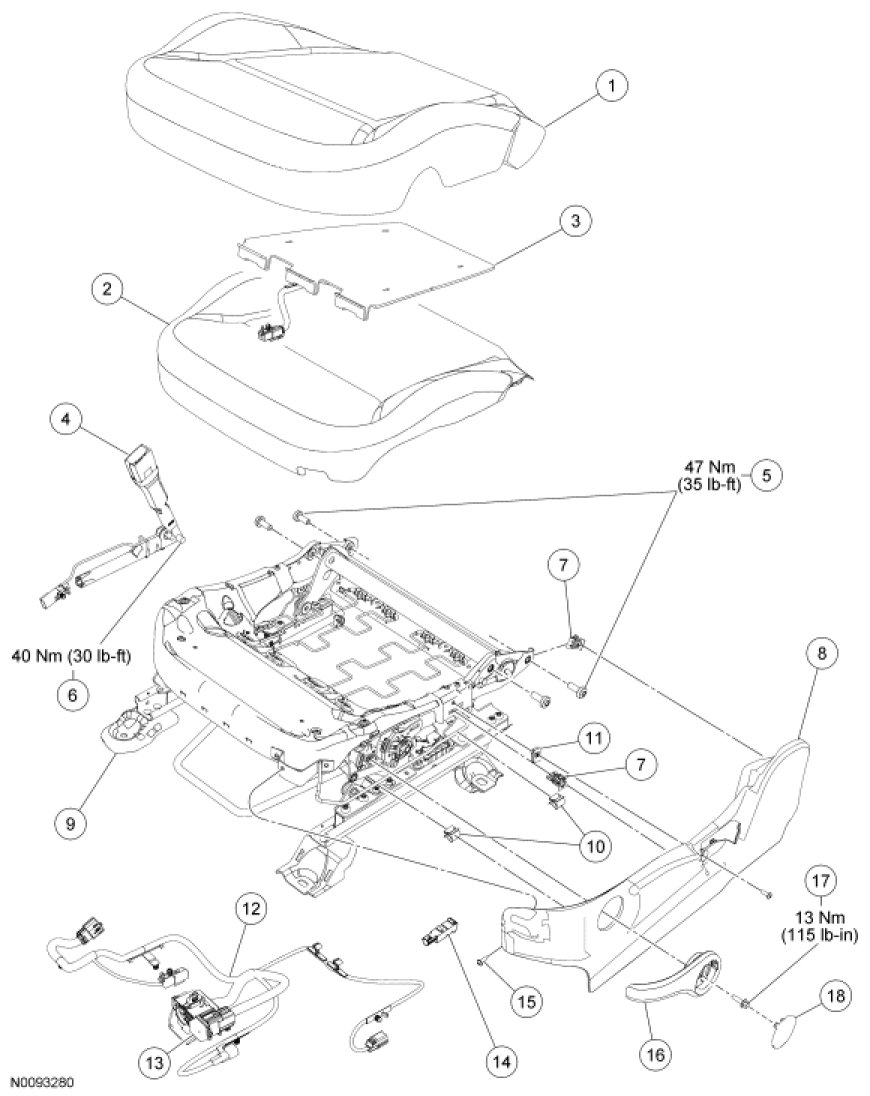

Seat Cushion - Front

NOTE: LH seat with 4-way seat track shown, 2-way similar. For RH seat cushion Occupant Classification Sensor (OCS) system components, refer to Supplemental Restraint System Service and Repair.
