Interior Lighting Module: Service and Repair

Ambient Lighting Module









Removal and Installation

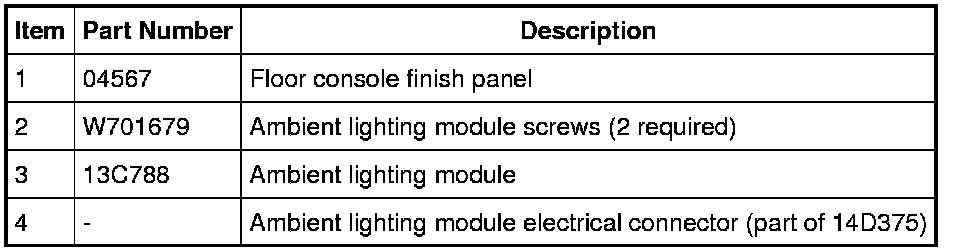

1. Remove the floor console finish panel.
- Lift upward on the rear of the floor console finish panel to release the floor console finish panel clips.

- If equipped, disconnect the electrical connector.

- Slide the park brake lever boot and the floor console finish panel over the park brake lever.

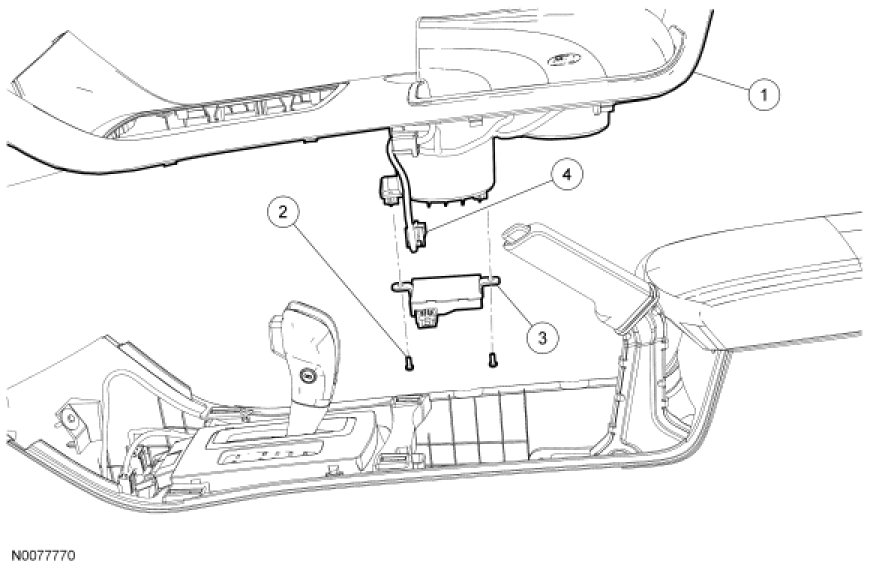

2. NOTE: The ambient lighting module is mounted under the bottom of the floor console finish panel cup holder.

Remove the 2 screws and the ambient lighting module.

- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
