Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

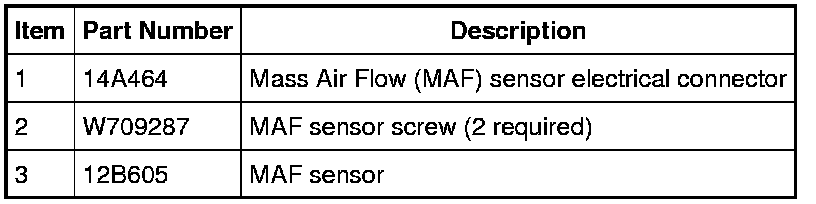

2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

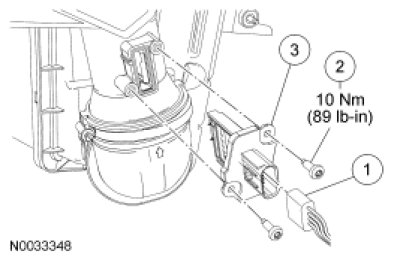

3. Remove the 2 MAF sensor retaining screws and the MAF sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
