Home >> Ford >> 2011 >> Focus L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> C175T Powertrain Control Module (PCM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

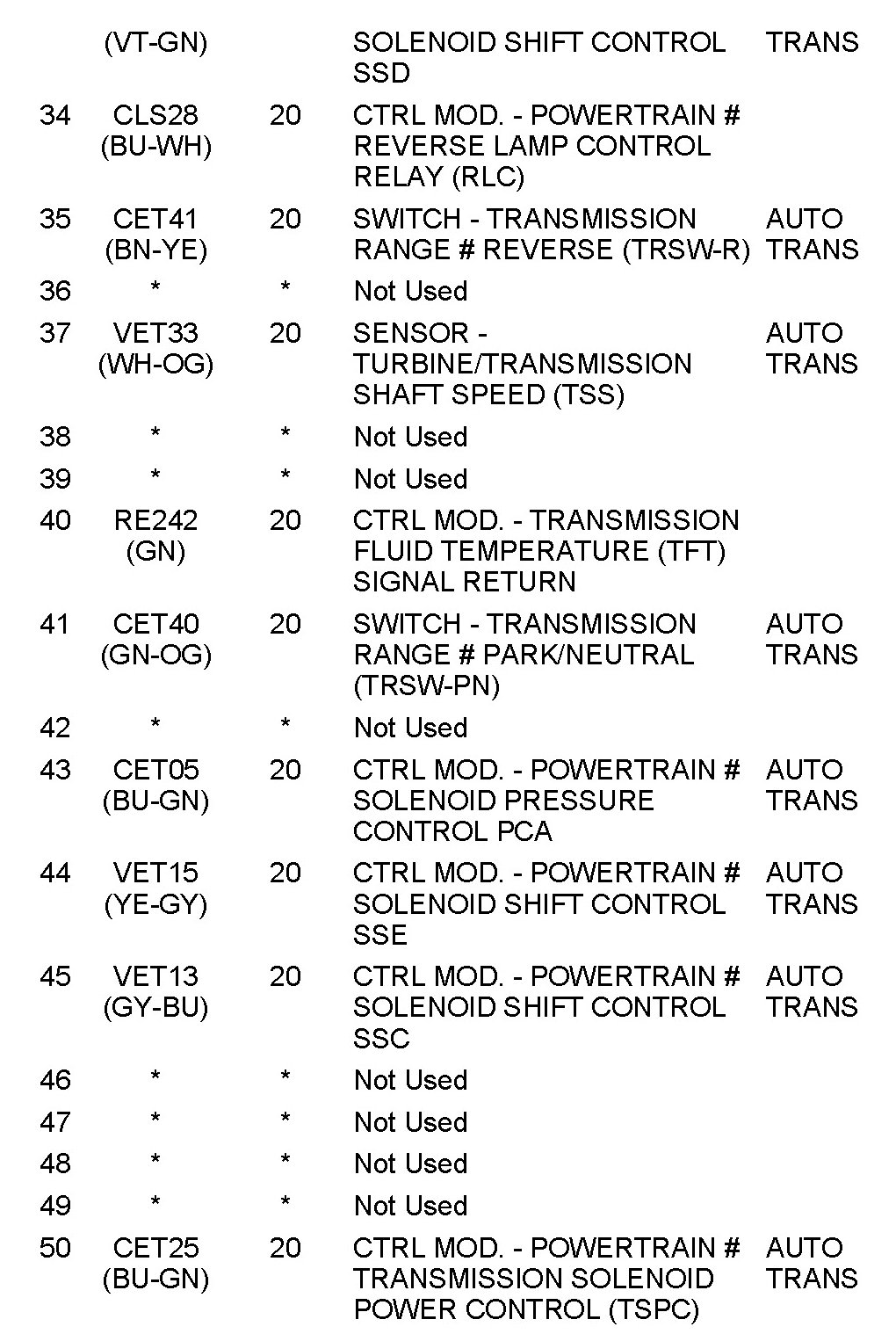

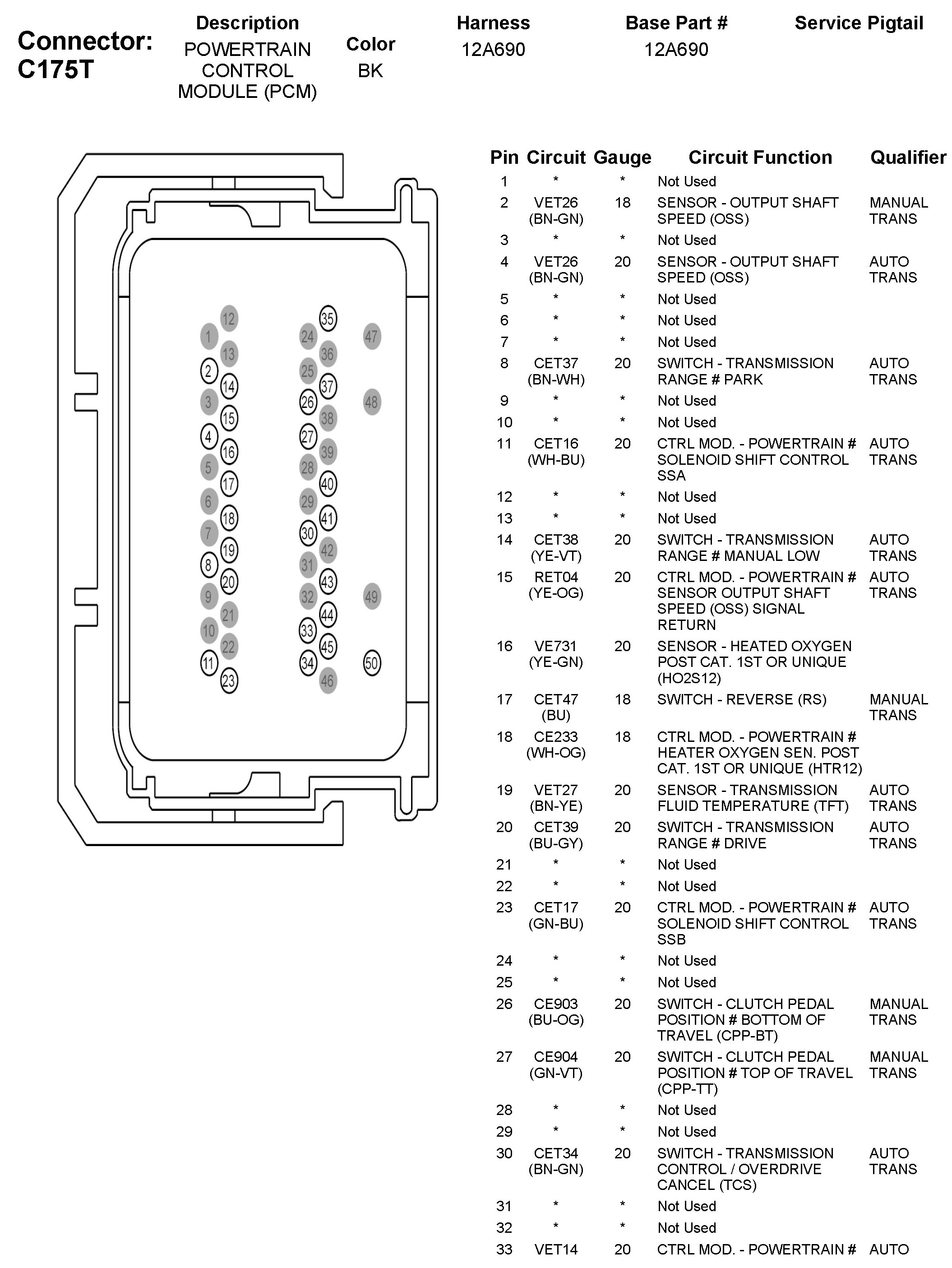

C175T Powertrain Control Module (PCM)
