General Specifications




SPECIFICATIONS

General Equipment
3 Phase Inverter Spot Welder 254-00002
Compuspot 700F Welder 190-50080
I4 Inverter Spot Welder 254-00014
Inverter Welder with MIG Welder 254-00015

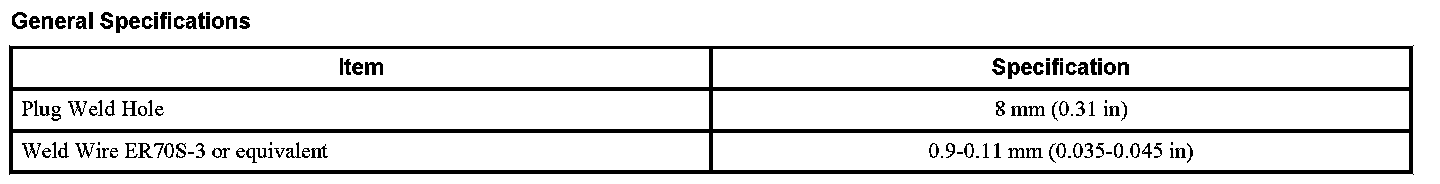

General Specifications:

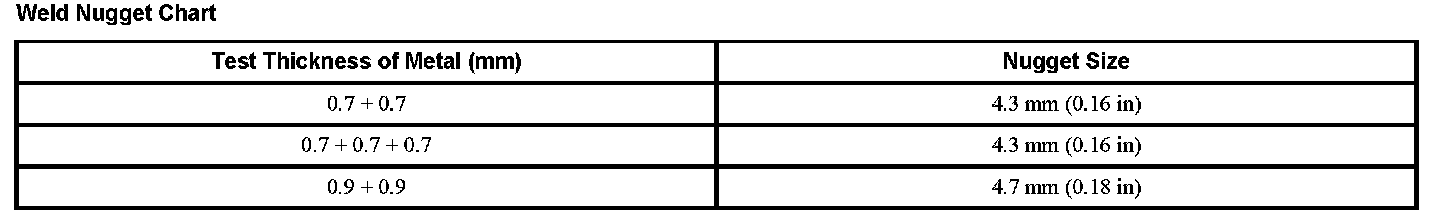

Weld Nugget Chart (Part 1):

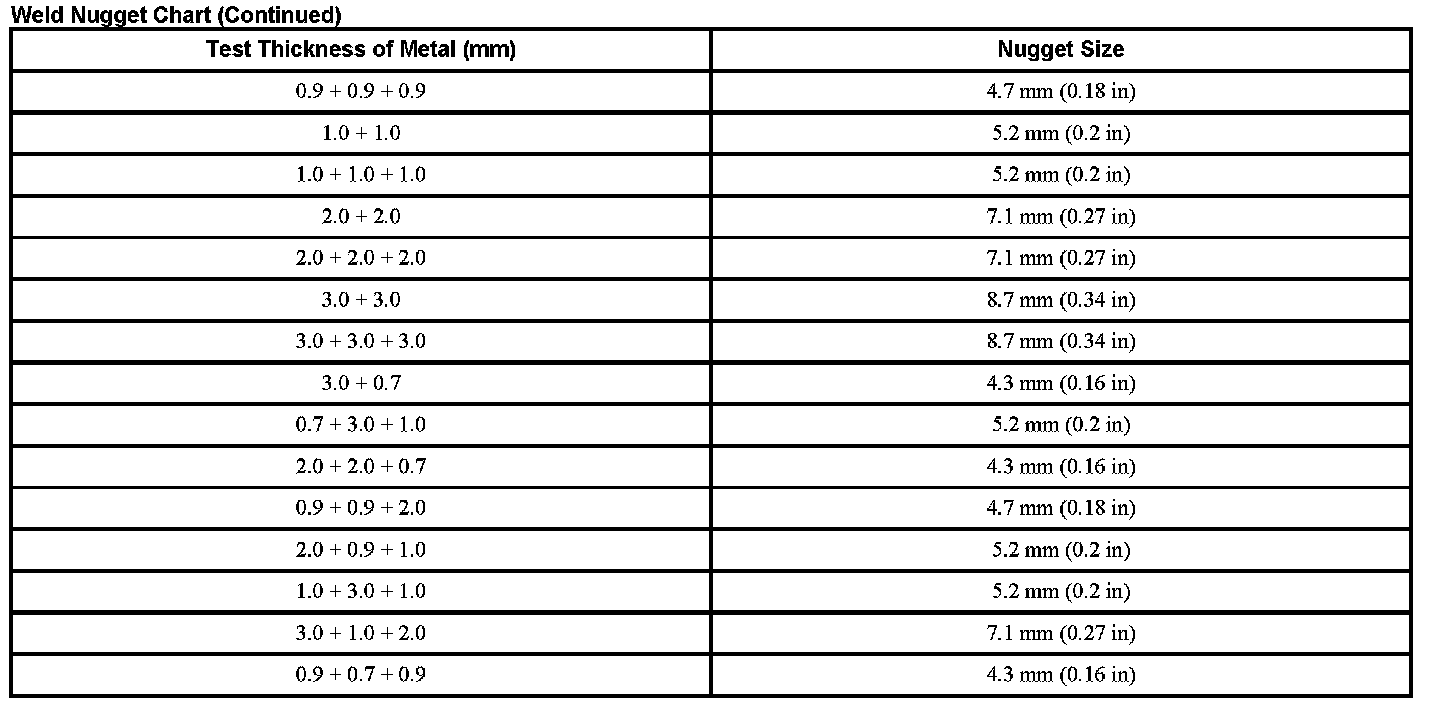

Weld Nugget Chart (Part 2):

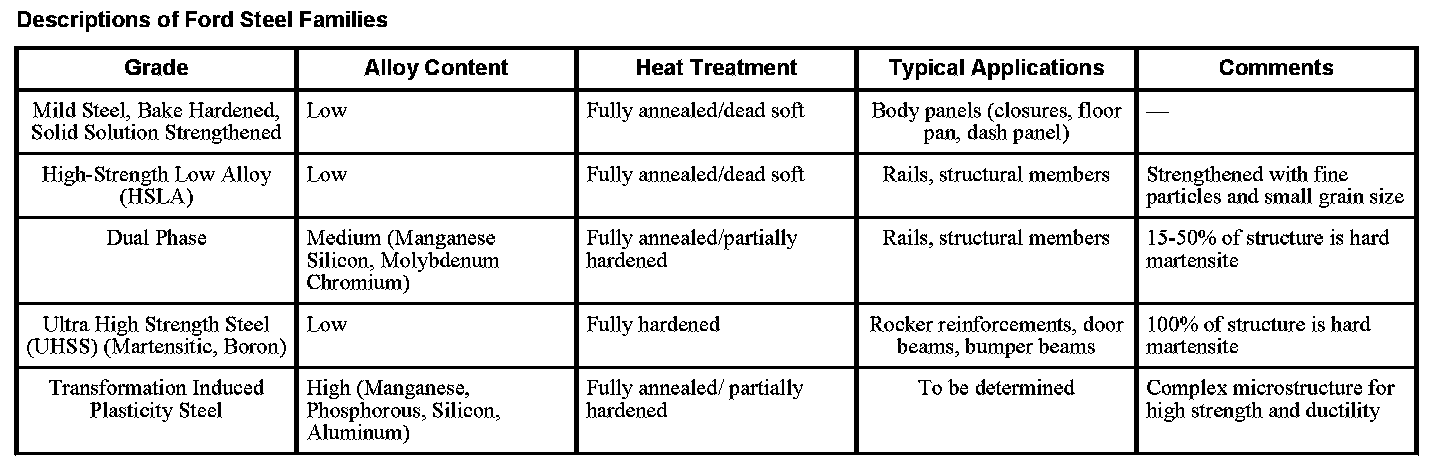

Descriptions Of Ford Steel Families:

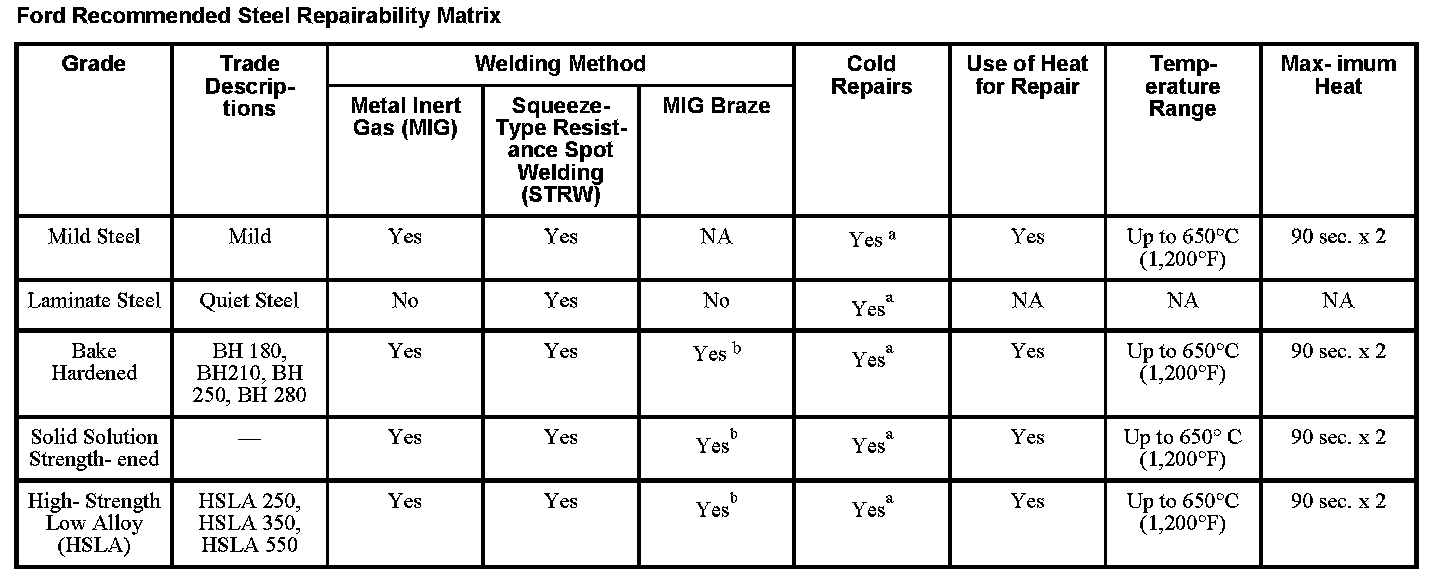

Ford Recommended Steel Repairability Matrix (Part 1):

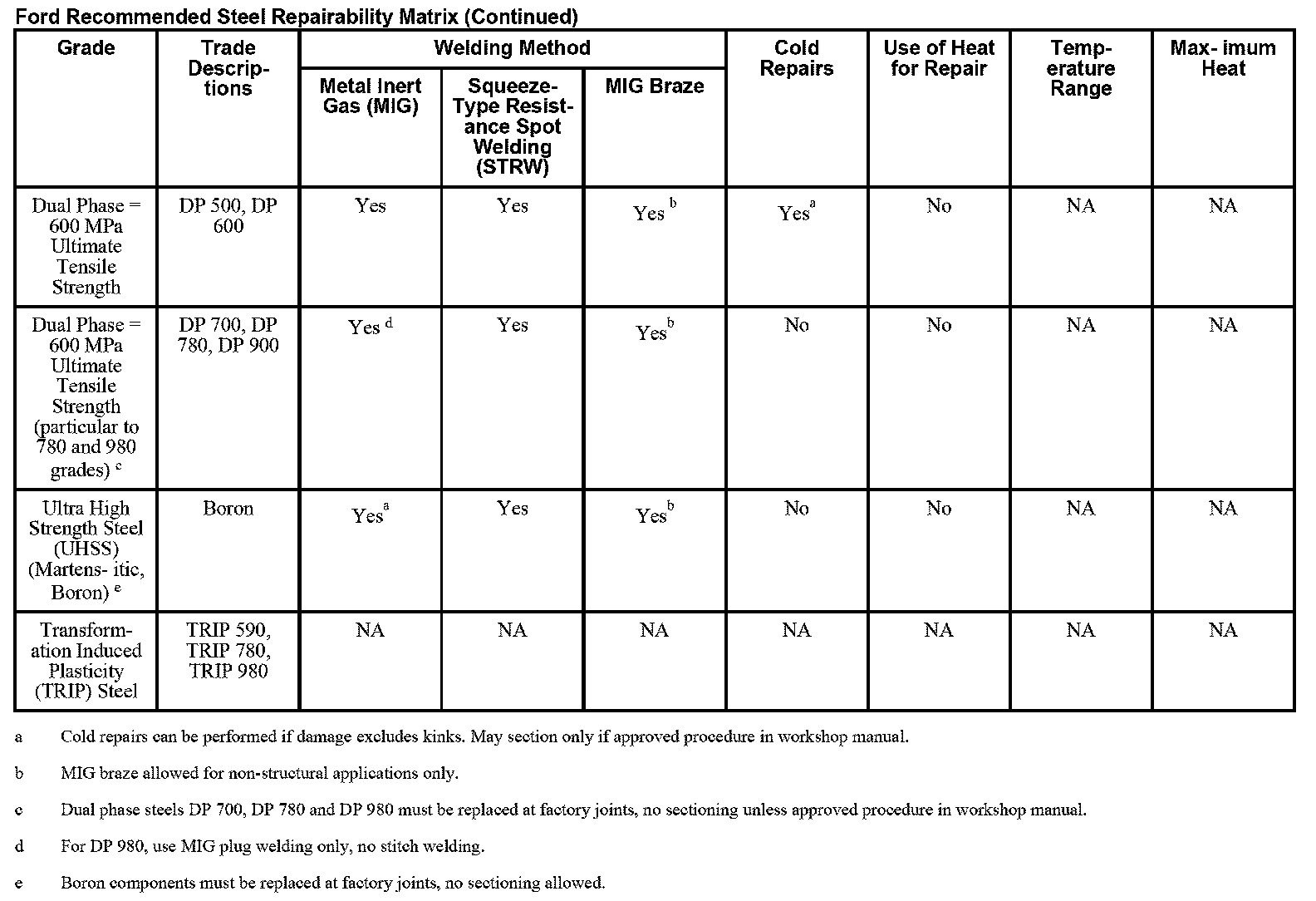

Ford Recommended Steel Repairability Matrix (Part 2):
