Timing Cover

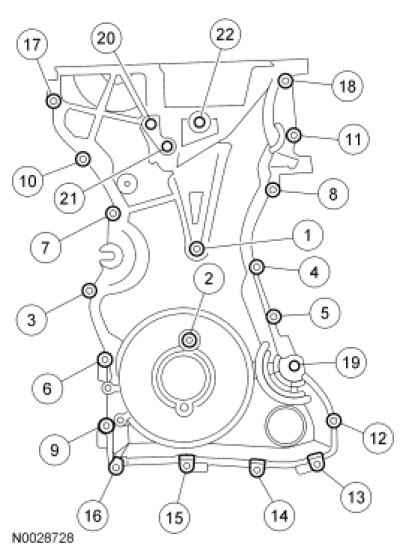

Install the engine front cover. Tighten the bolts in the sequence shown, to the following specifications:

Tighten the 8-mm bolts to 10 Nm (89 lb-in).
Tighten the 13-mm bolts to 48 Nm (35 lb-ft).
