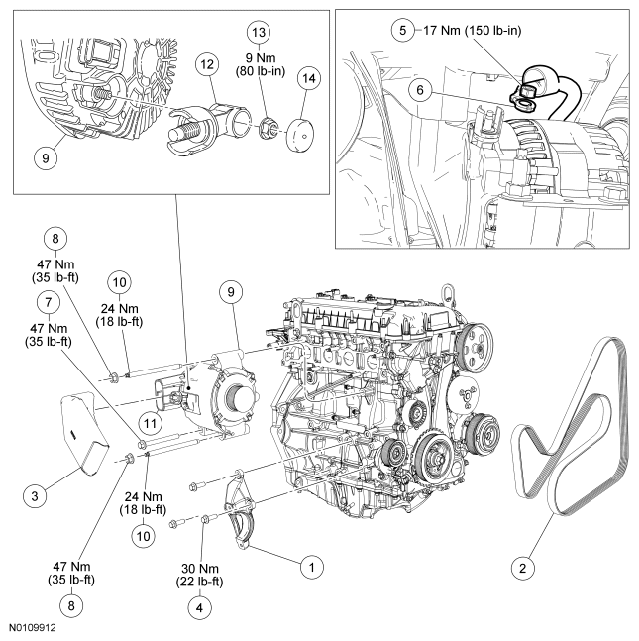

| 1 |
- |
Center support bracket |
| 2 |
6C301 |
Front End Accessory Drive (FEAD) belt |
| 3 |
10C392 |
Generator lower air duct |
| 4 |
- |
Center support bracket bolt (3 required) |
| 5 |
W711953 |
Generator B+ terminal nut (part of 10300) |
| 6 |
- |
Generator B+ terminal (part of 14A280) |
| 7 |
W500130 |
Generator bolt |
| 8 |
W520414 |
Generator nuts (2 required) |
| 9 |
10300 |
Generator |
| 10 |
W709489 |
Generator studs (2 required) |
| 11 |
10C392 |
Generator upper air duct |
| 12 |
10329 |
Radial arm adapter |
| 13 |
- |
Radial arm adapter nut (part of 10329) |
| 14 |
- |
Radial arm adapter cap (part of 10329) |
