Keyless Entry Key-Pad: Service and Repair

Keyless Entry Keypad

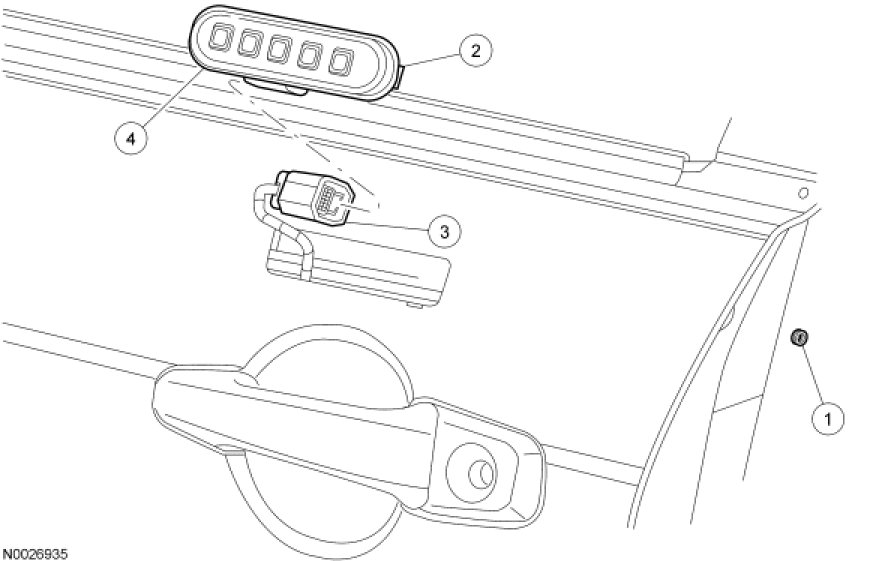

Removal and Installation

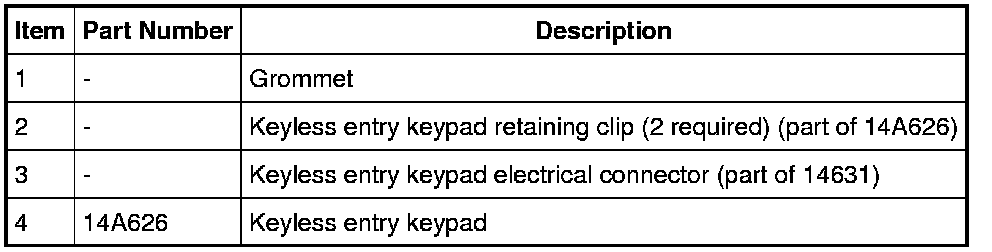

1. Remove the grommet.

2. Using a suitable tool, release the rear keyless entry keypad retaining clip and position the keyless entry keypad aside.

3. Remove the keyless entry keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
