Exhaust System

Exhaust System - Exploded View

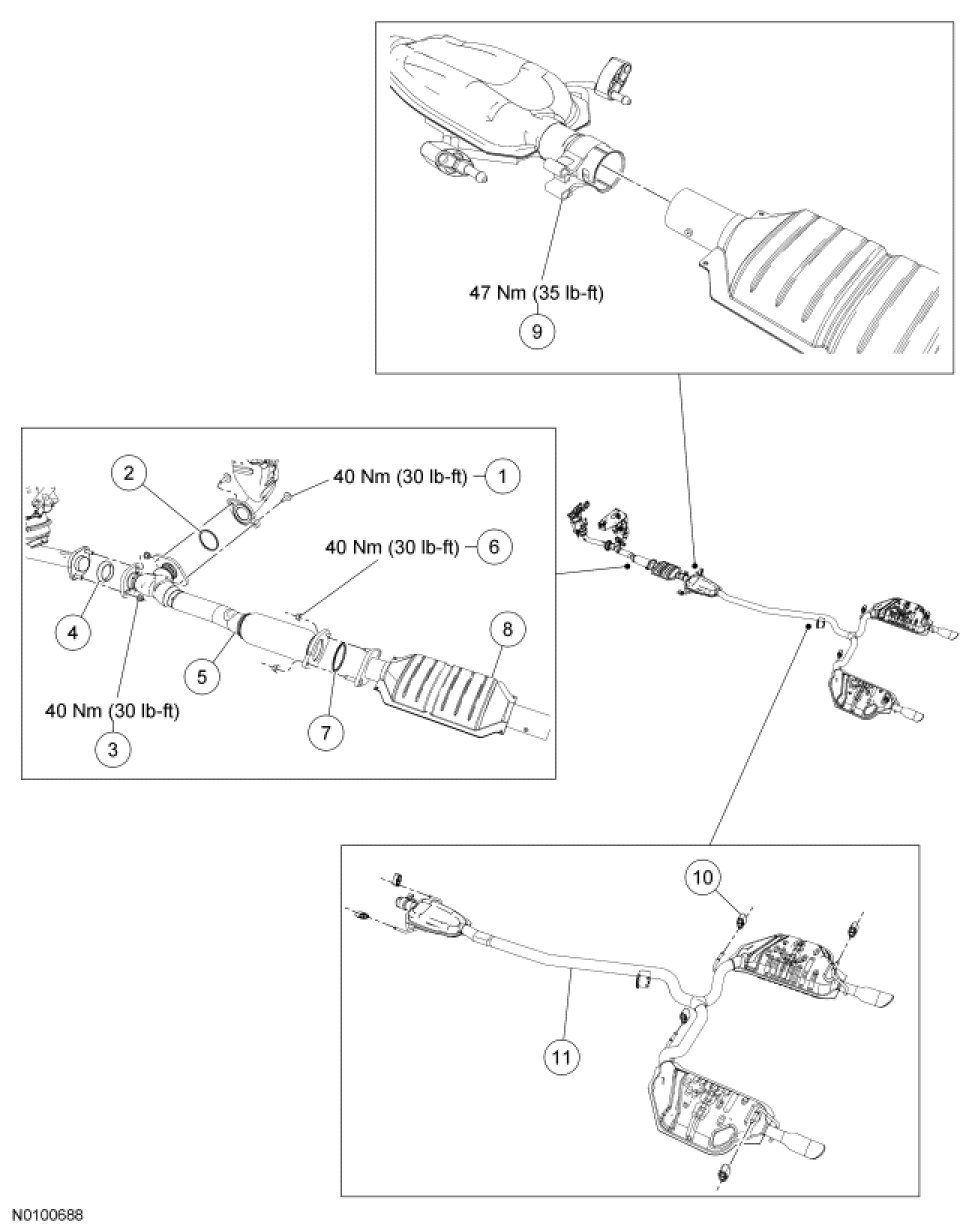

2.5L Hybrid

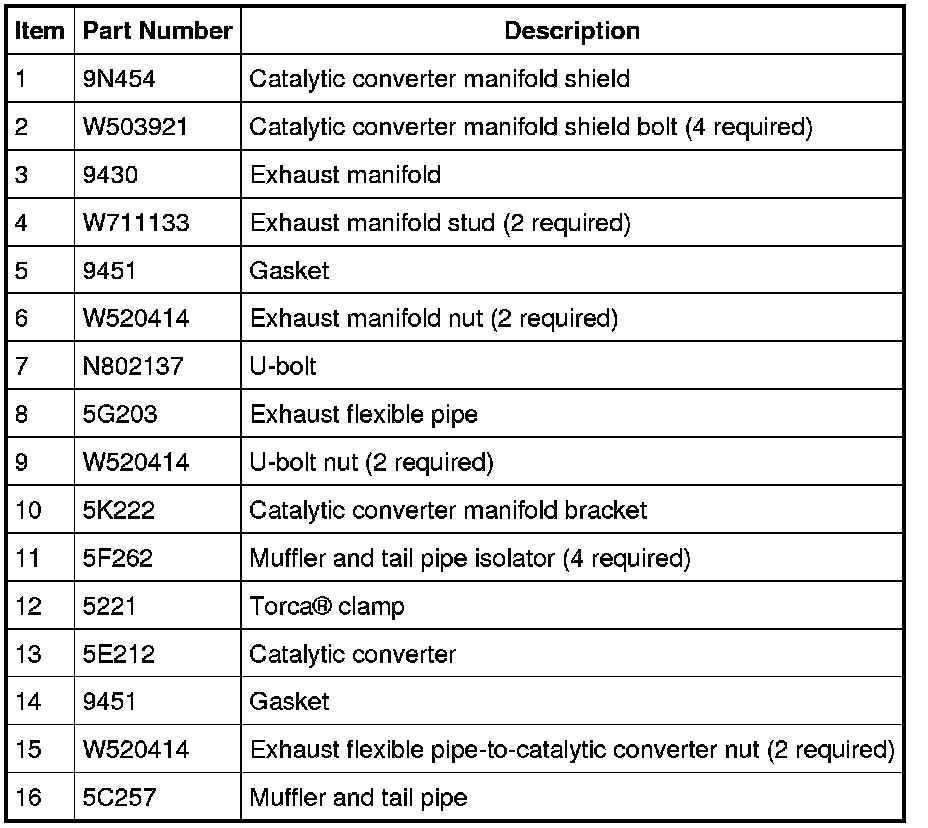

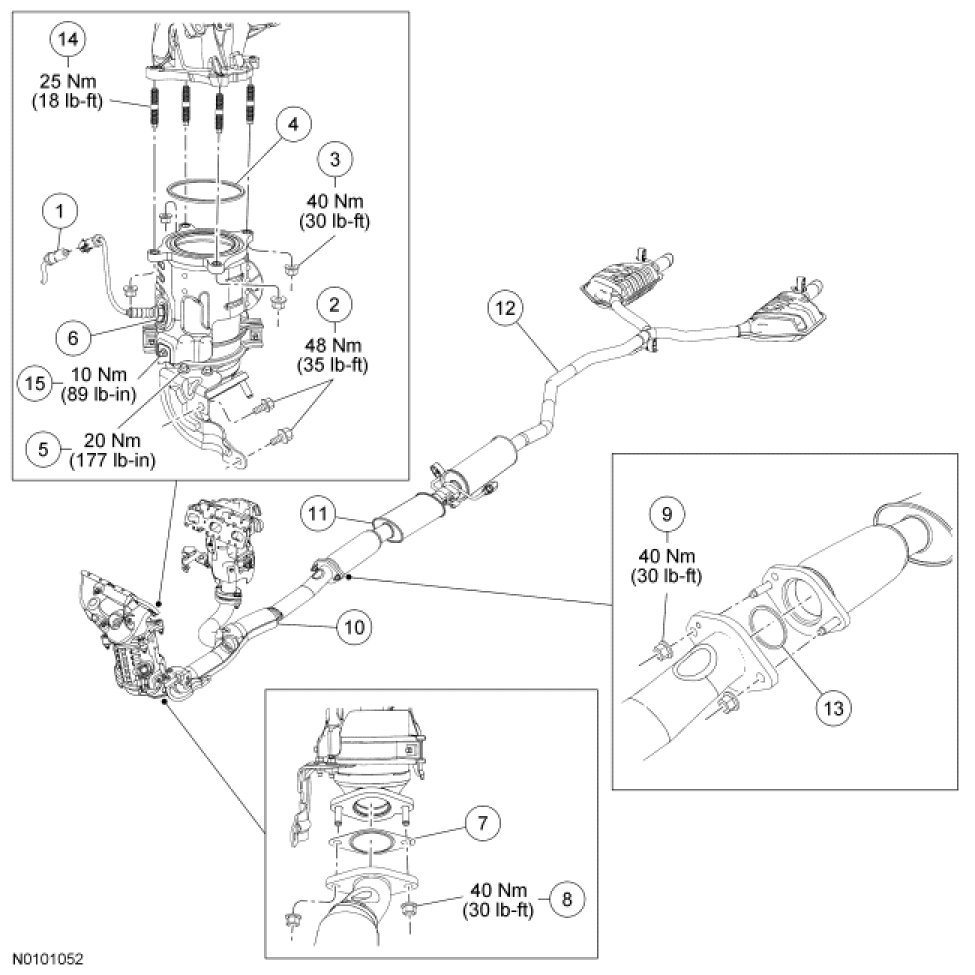

2.5L

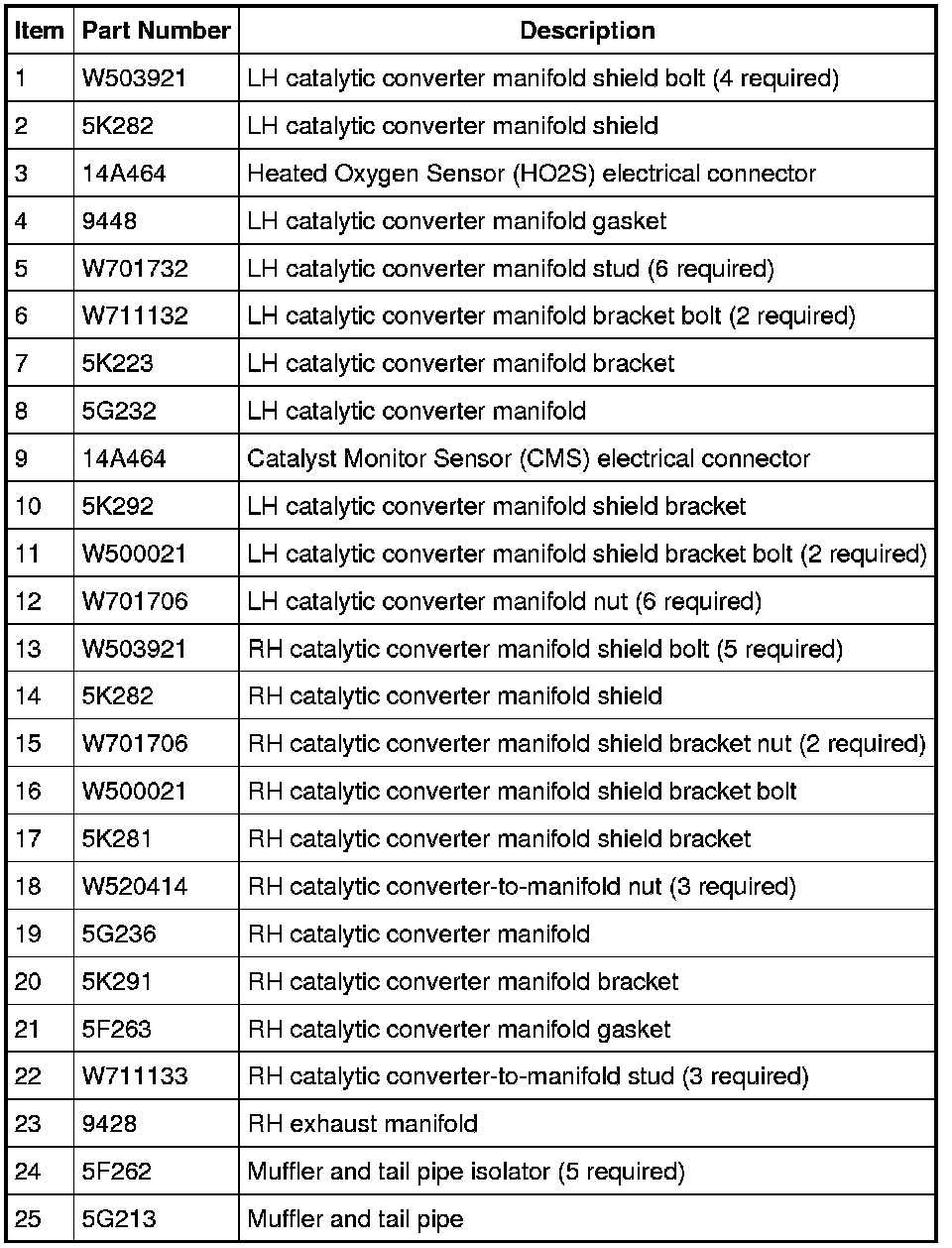

3.0L Front Wheel Drive (FWD) (View 1 of 3)










3.0L, 3.5L (View 2 of 3)










3.0L All-Wheel Drive (AWD) (View 3 of 3)

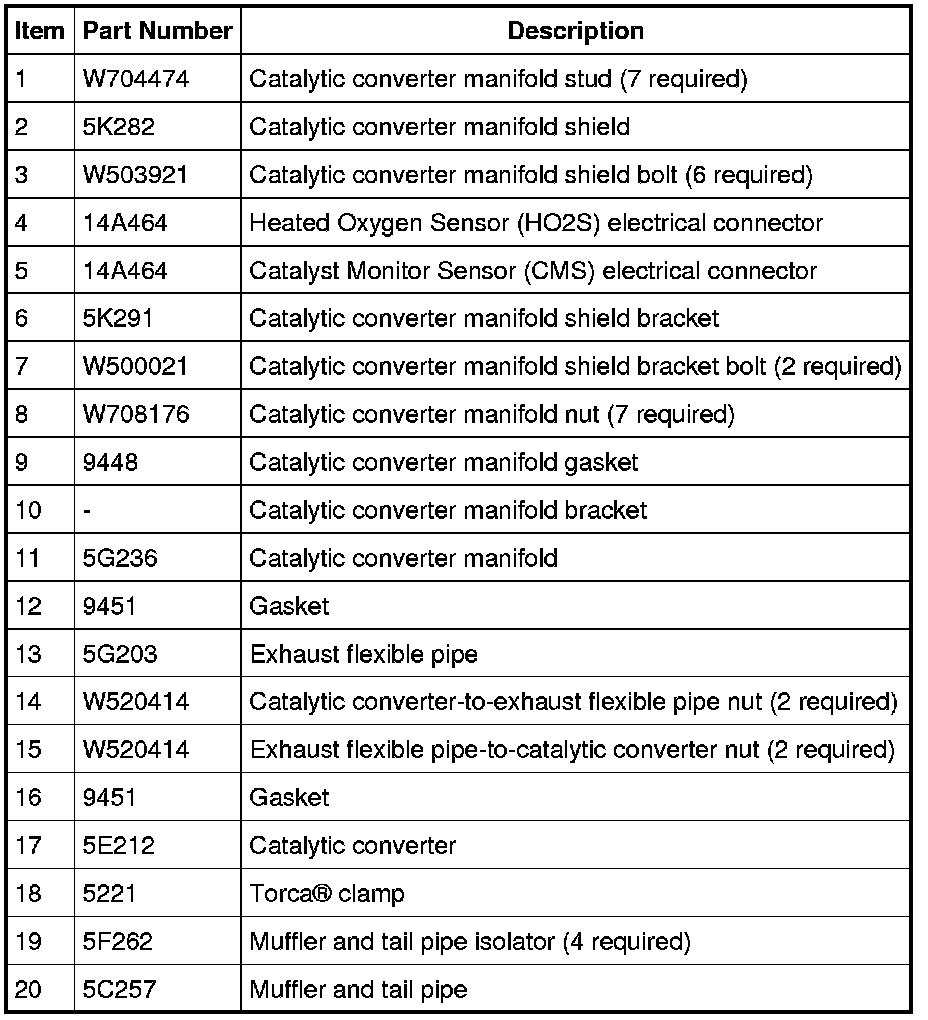

3.5L (View 1 of 3)

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.











3.5L (View 2 of 3)

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.











3.5L (View 3 of 3)
