Camshaft Position Sensor

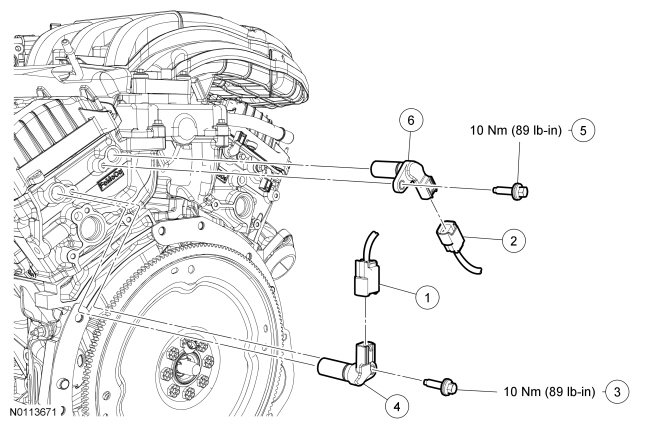

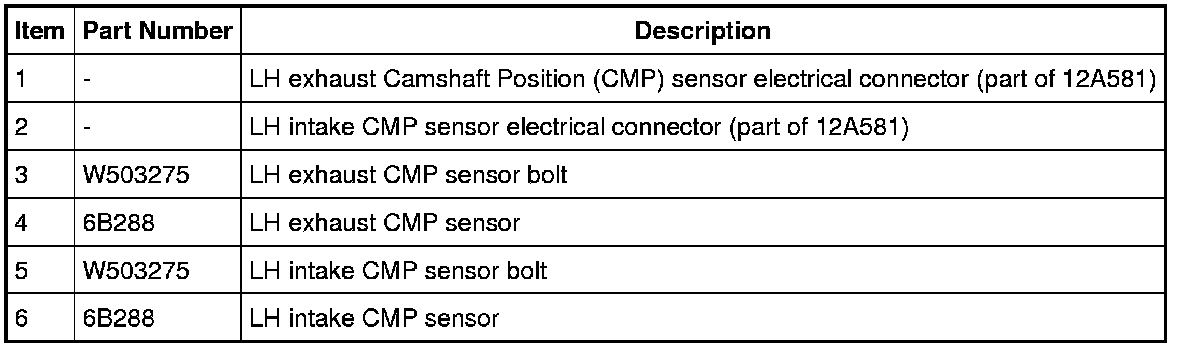

Engine Control Components - Exploded View, 3.7L











Camshaft Position (CMP) Sensor

NOTE: The battery tray must be removed to access the RH exhaust or intake CMP. For additional information, refer to Battery, Mounting and Cables Battery and Battery Tray - Exploded View.

NOTE: Lubricate the Camshaft Position (CMP) sensor O-ring seal with clean engine oil. LH shown, RH similar.

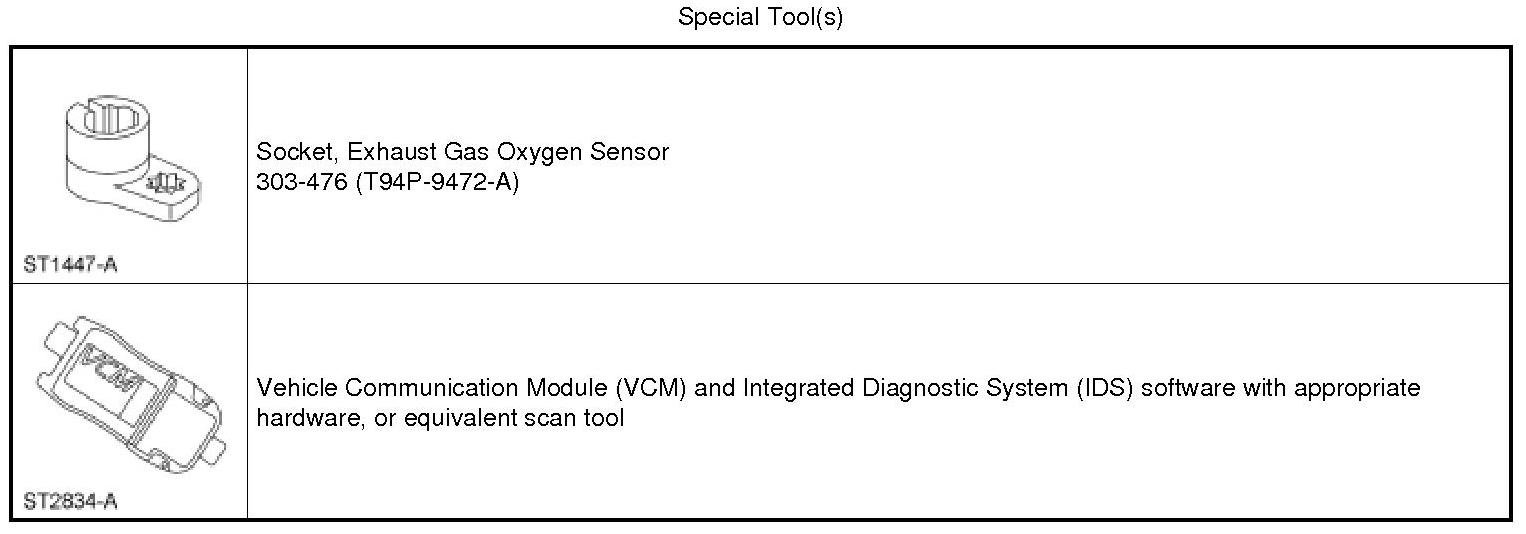

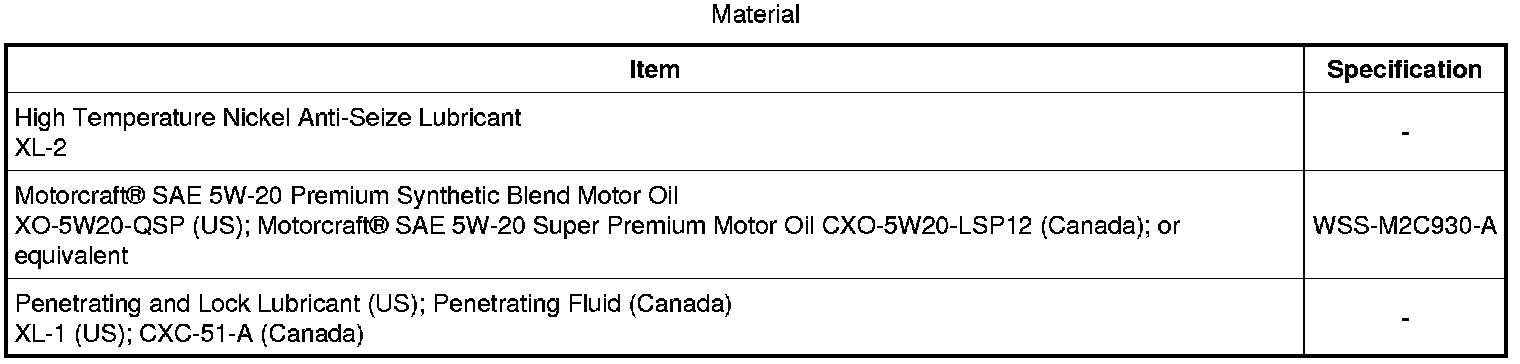

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
