Exploded Views

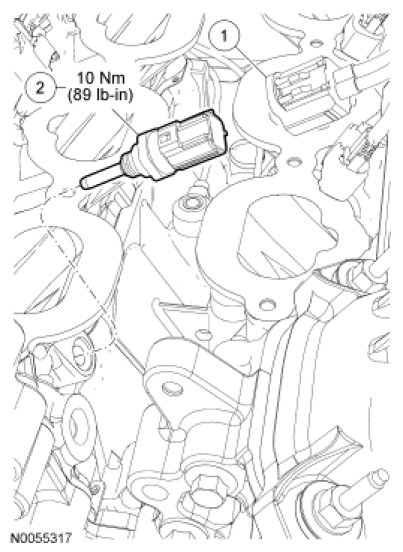

Engine Control Components - Exploded View, 3.7L

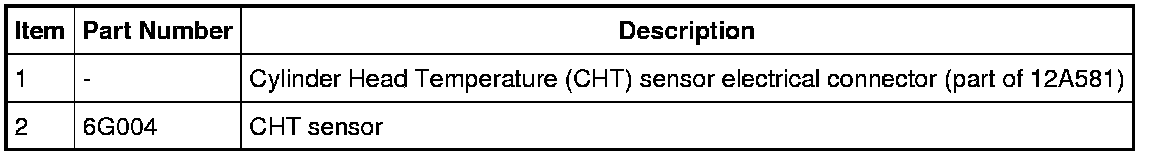

Cylinder Head Temperature (CHT) Sensor

NOTE: The lower intake manifold must be removed to access the CHT sensor. For additional information, refer to Engine - 3.7L Lower Intake Manifold.











1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
