Crankshaft Position Sensor

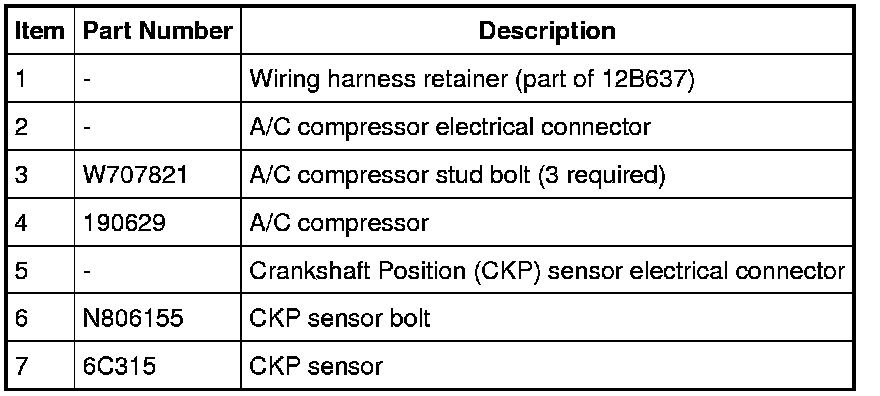

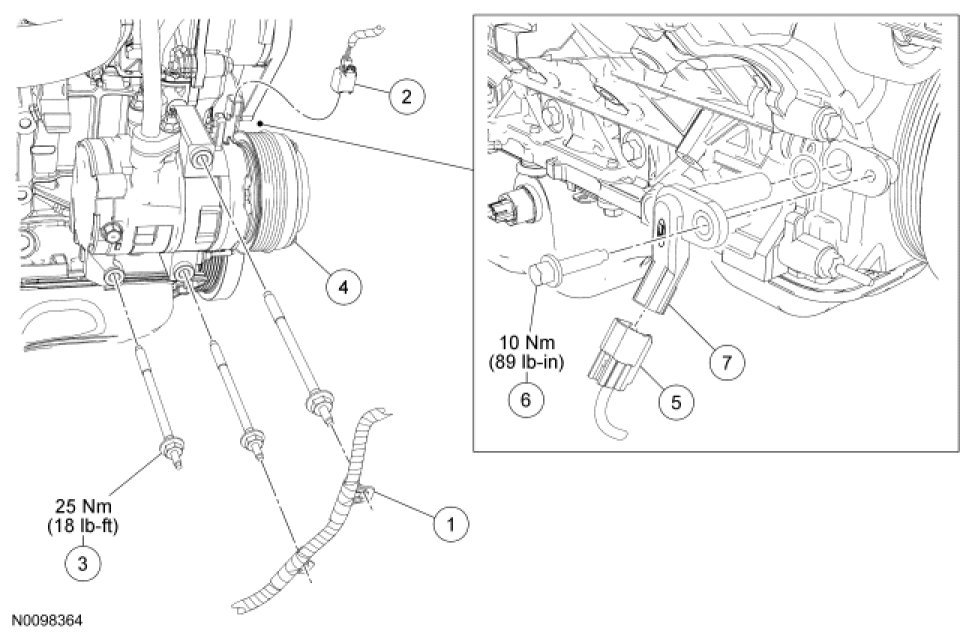

Engine Control Components - Exploded View, 5.4L (4V)










Crankshaft Position (CKP) Sensor

NOTE: The Supercharger (SC) belt must be removed to perform this procedure. For additional information, refer to Accessory Drive Service and Repair.

NOTE: The A/C compressor must be positioned aside to access the Crankshaft Position (CKP) sensor, it is not necessary to remove the A/C compressor from the vehicle.

NOTE: After installing the CKP sensor, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.











1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
