Knock Sensor

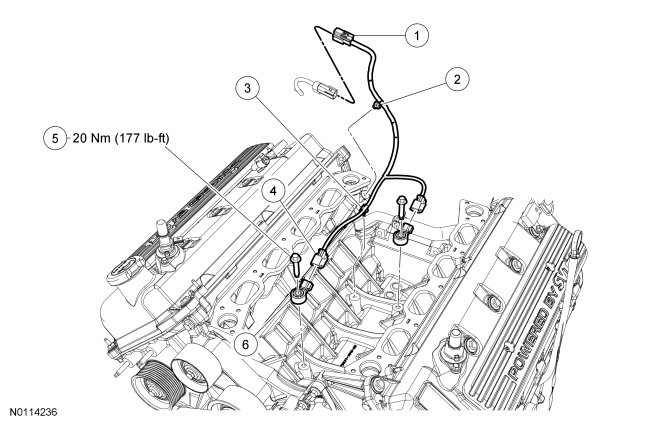

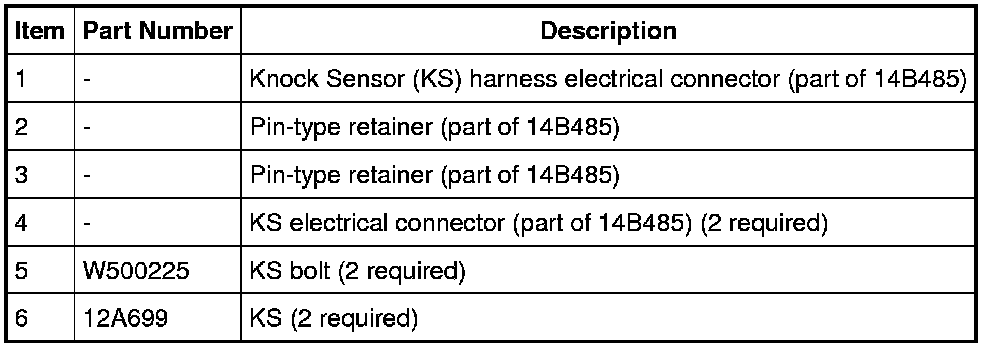

Engine Control Components - Exploded View, 5.4L (4V)










Knock Sensor (KS)

NOTICE: Note the position and orientation of each Knock Sensor (KS). The sensors must be installed in the same position as removed or damage to the sensors may occur.

NOTE: The intake manifold must be removed to perform this procedure. For additional information, refer to Engine - 5.4L (4V) Removal and Replacement.











1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
