Cooling System




Radiator and Cooling Fan - Exploded View, 2.3L

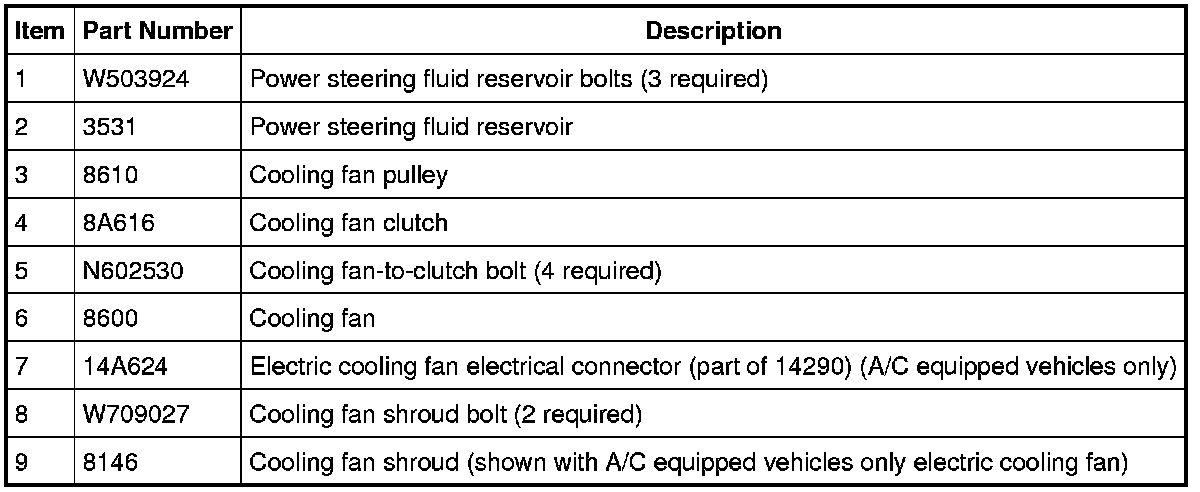

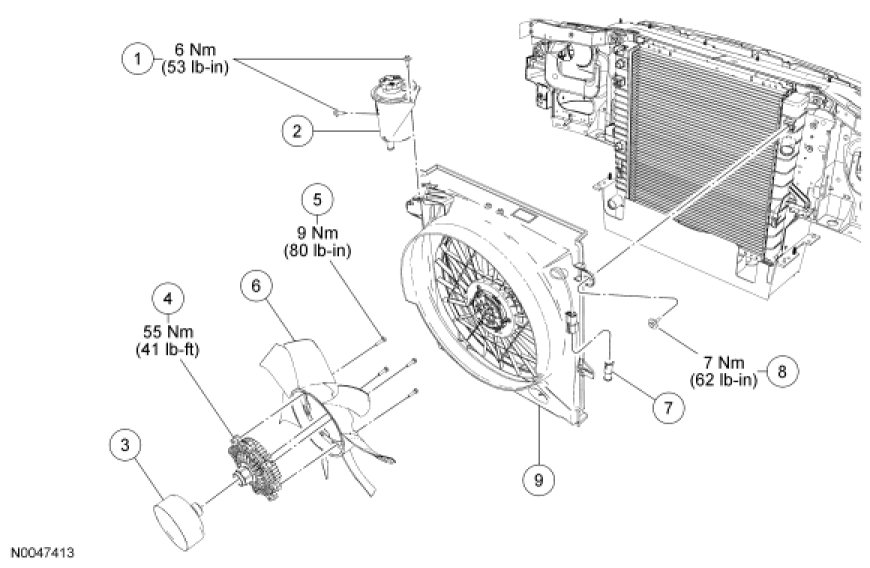

Mechanical Cooling Fan and Fan Shroud

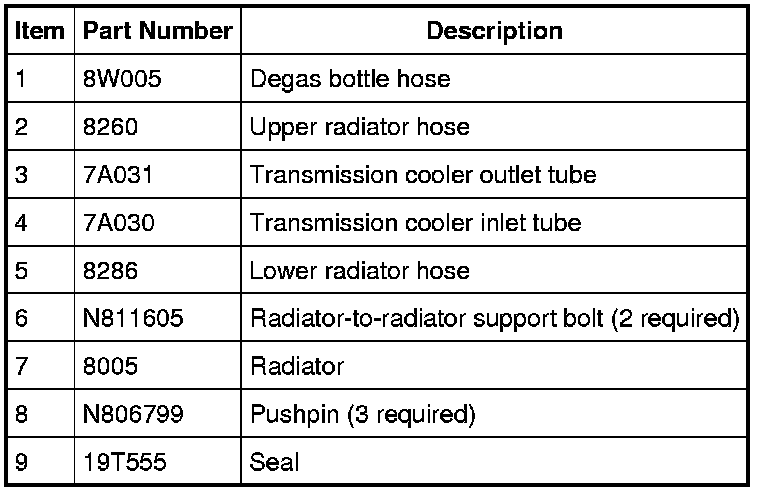

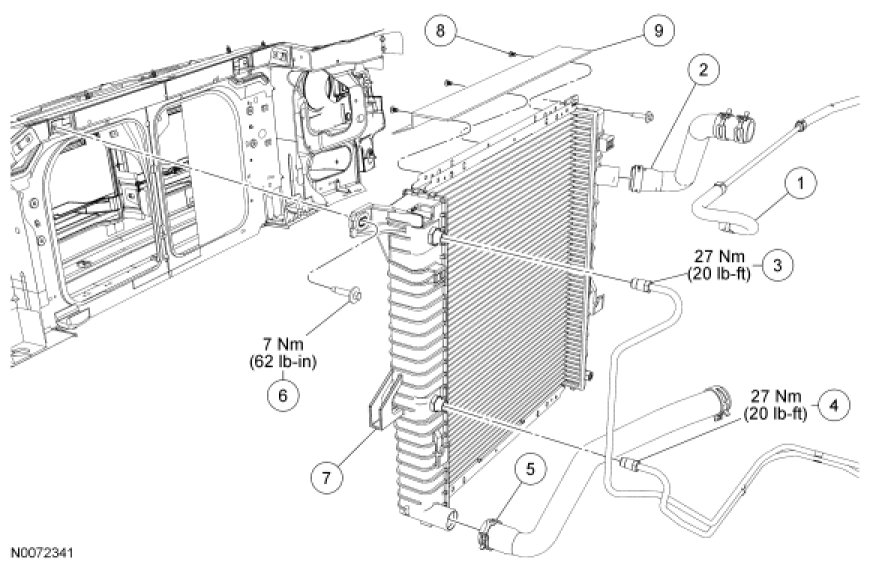

Radiator and Hoses

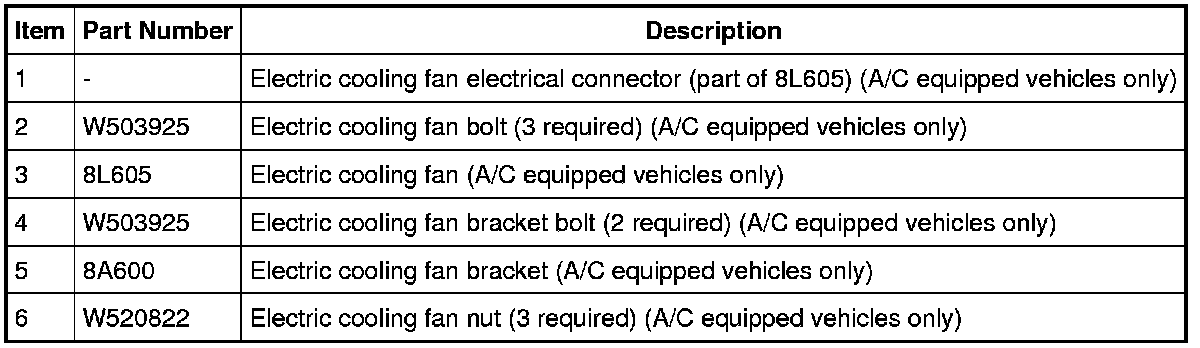

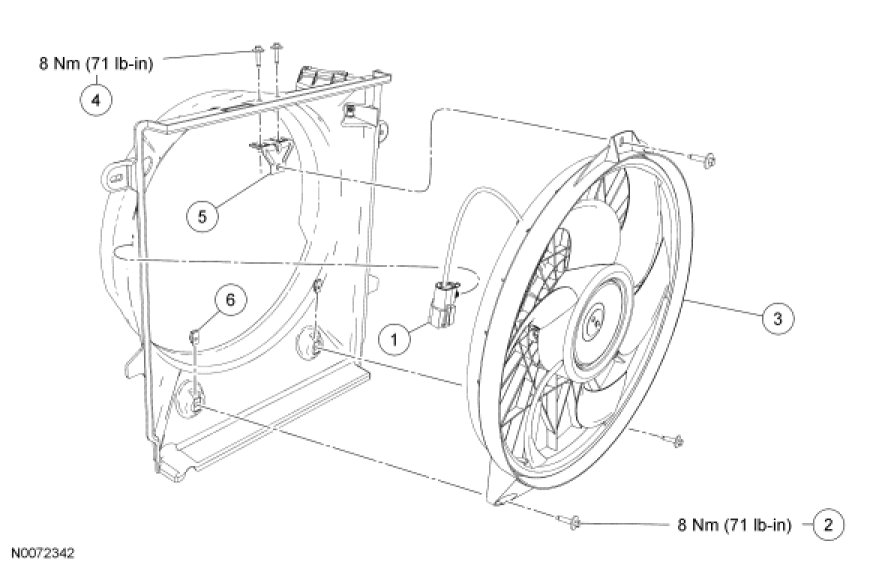

Electric Cooling Fan
