Fuel Level Sensor




Fuel Tank and Filler Pipe - Exploded View

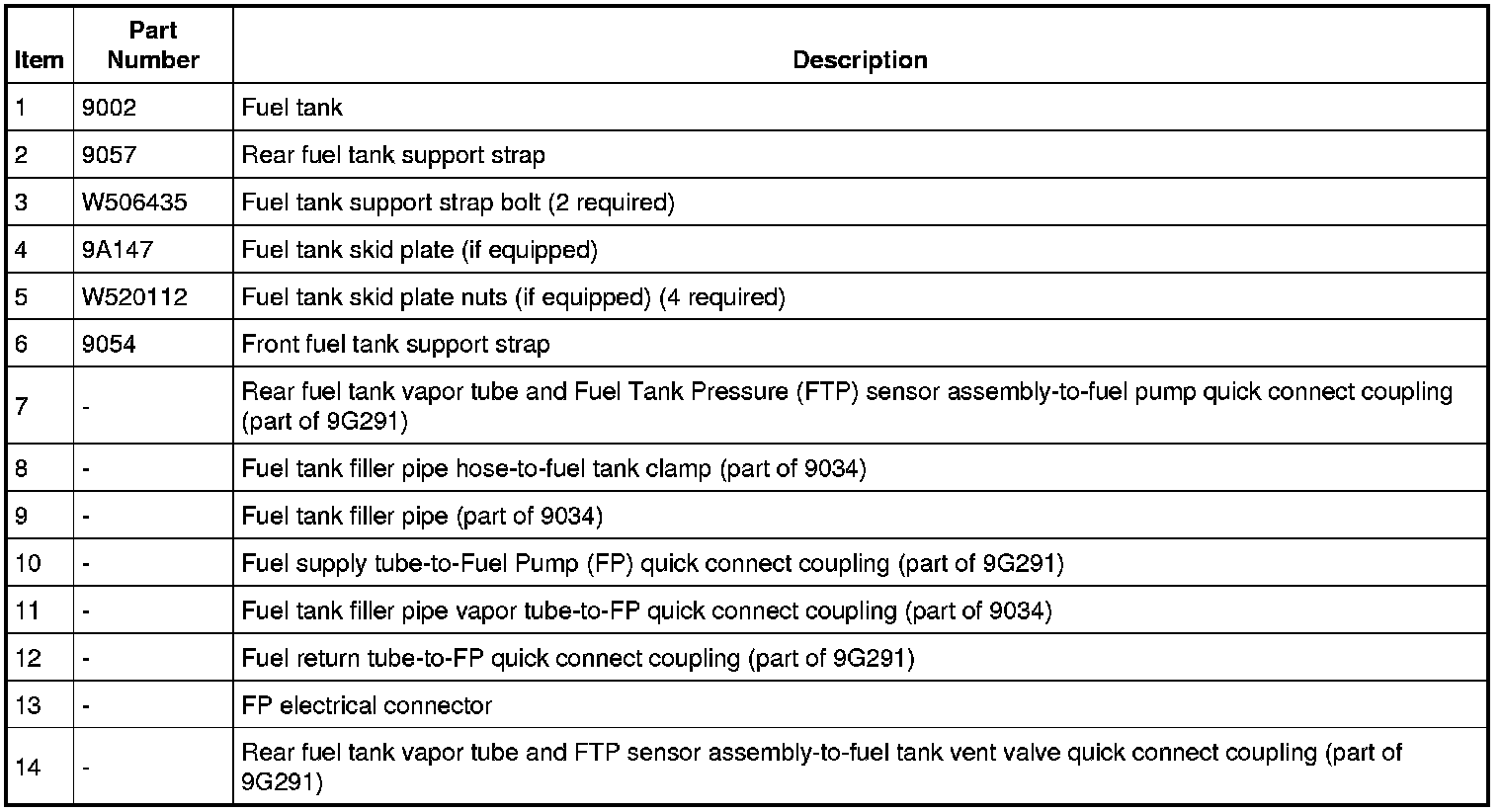

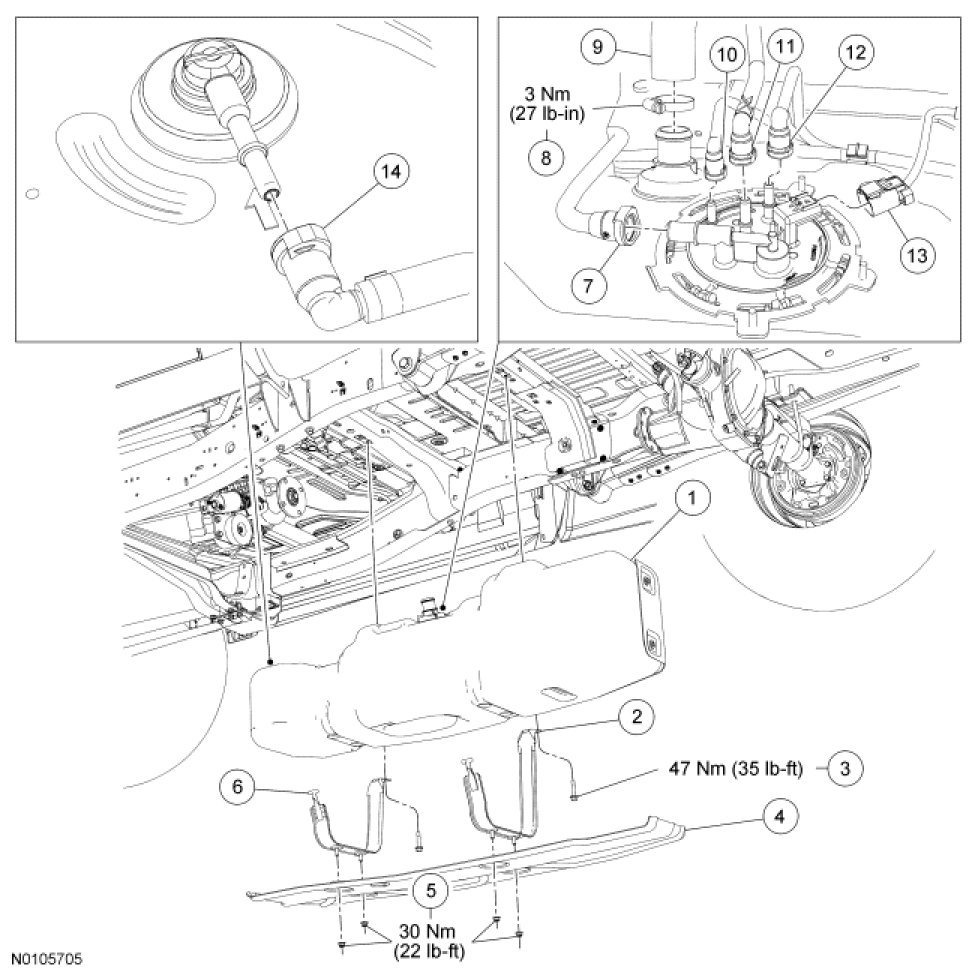

Fuel Tank

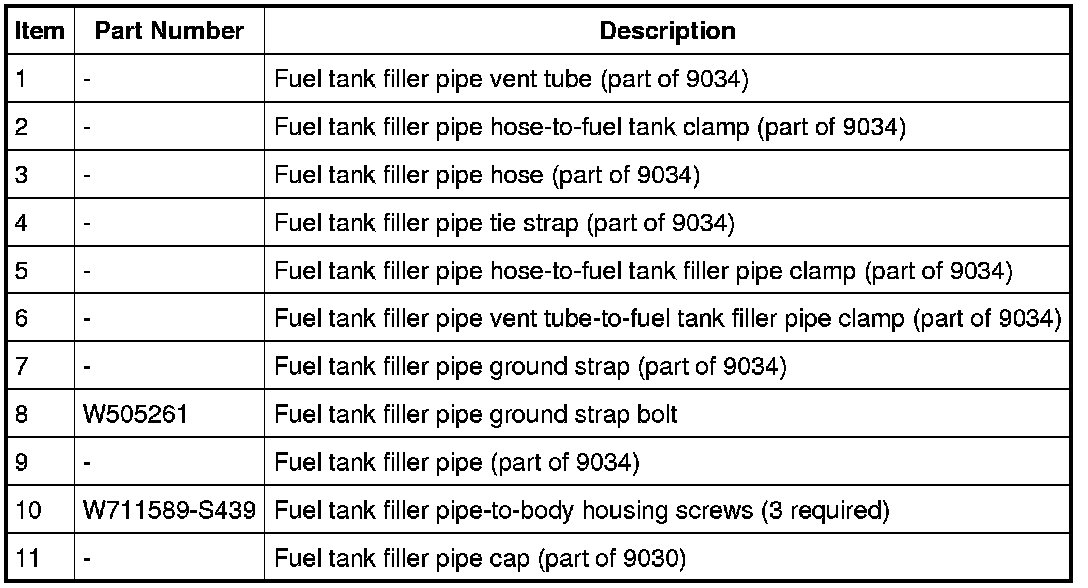

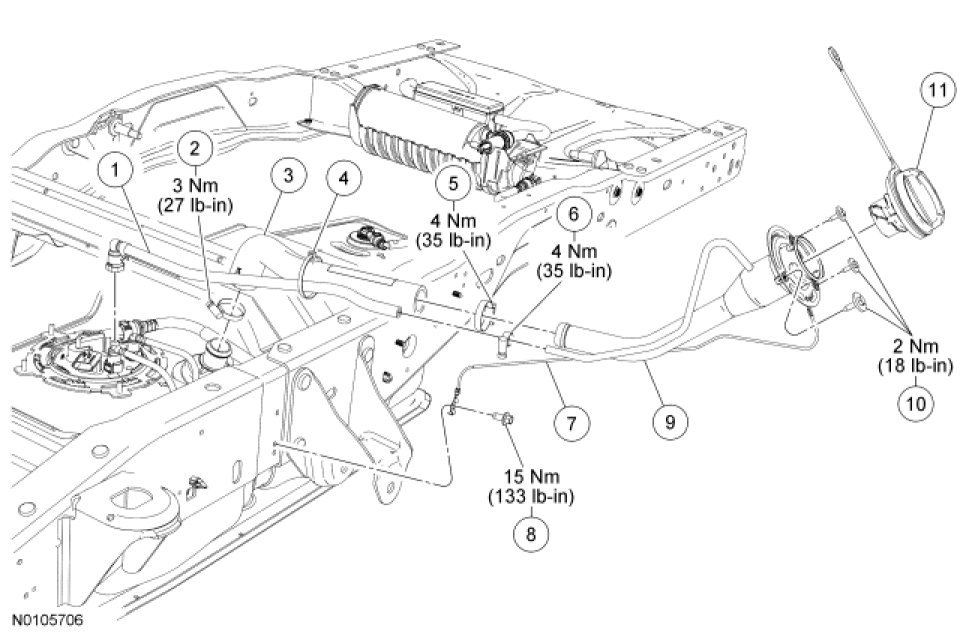

Fuel Tank Filler Pipe

NOTE: Vehicle body removed from art for clarity.
