Seat Temperature Control Module

Seat - Exploded View, Front

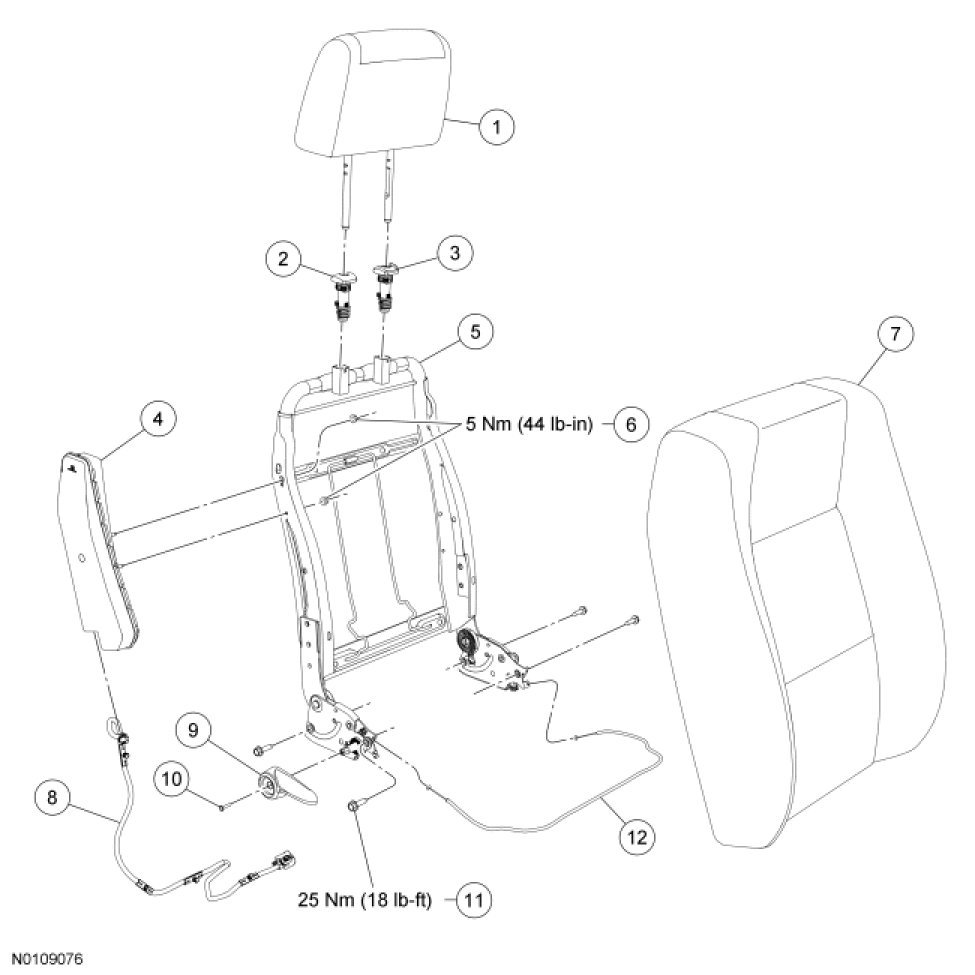

Seat Backrest, 40 and 60 Percent

NOTE: RH shown, LH similar.

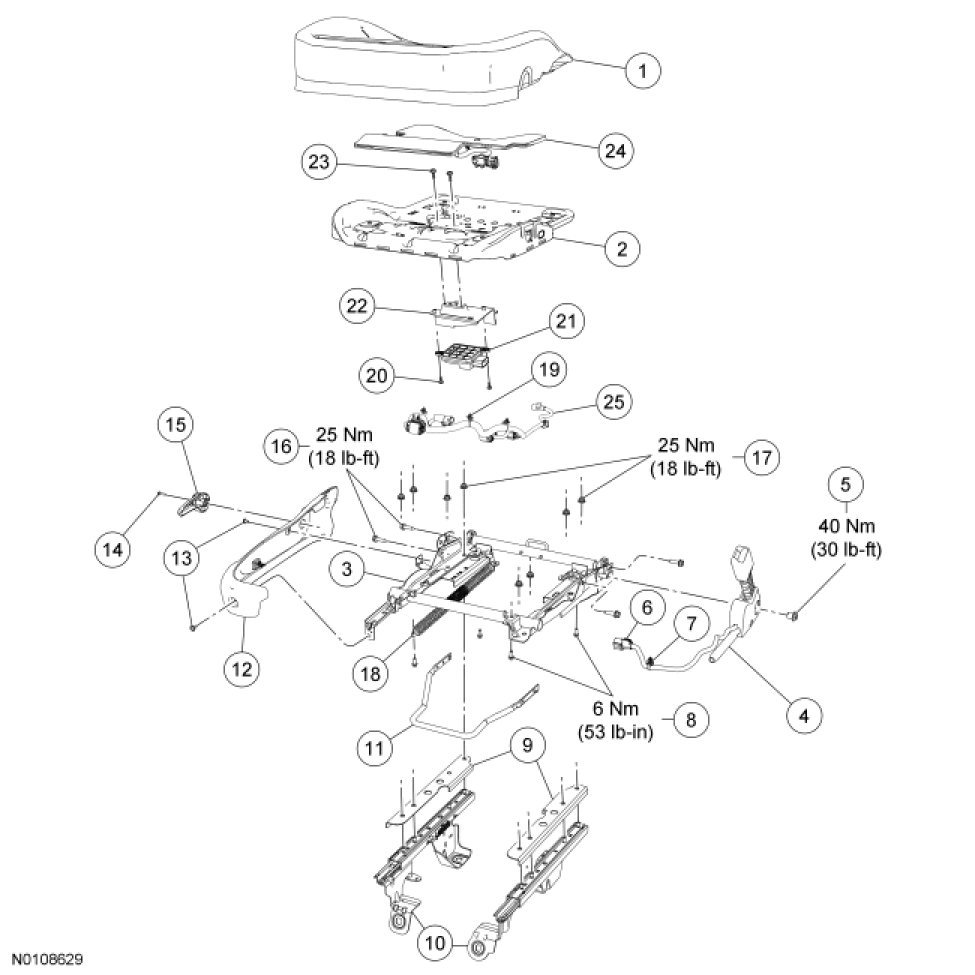

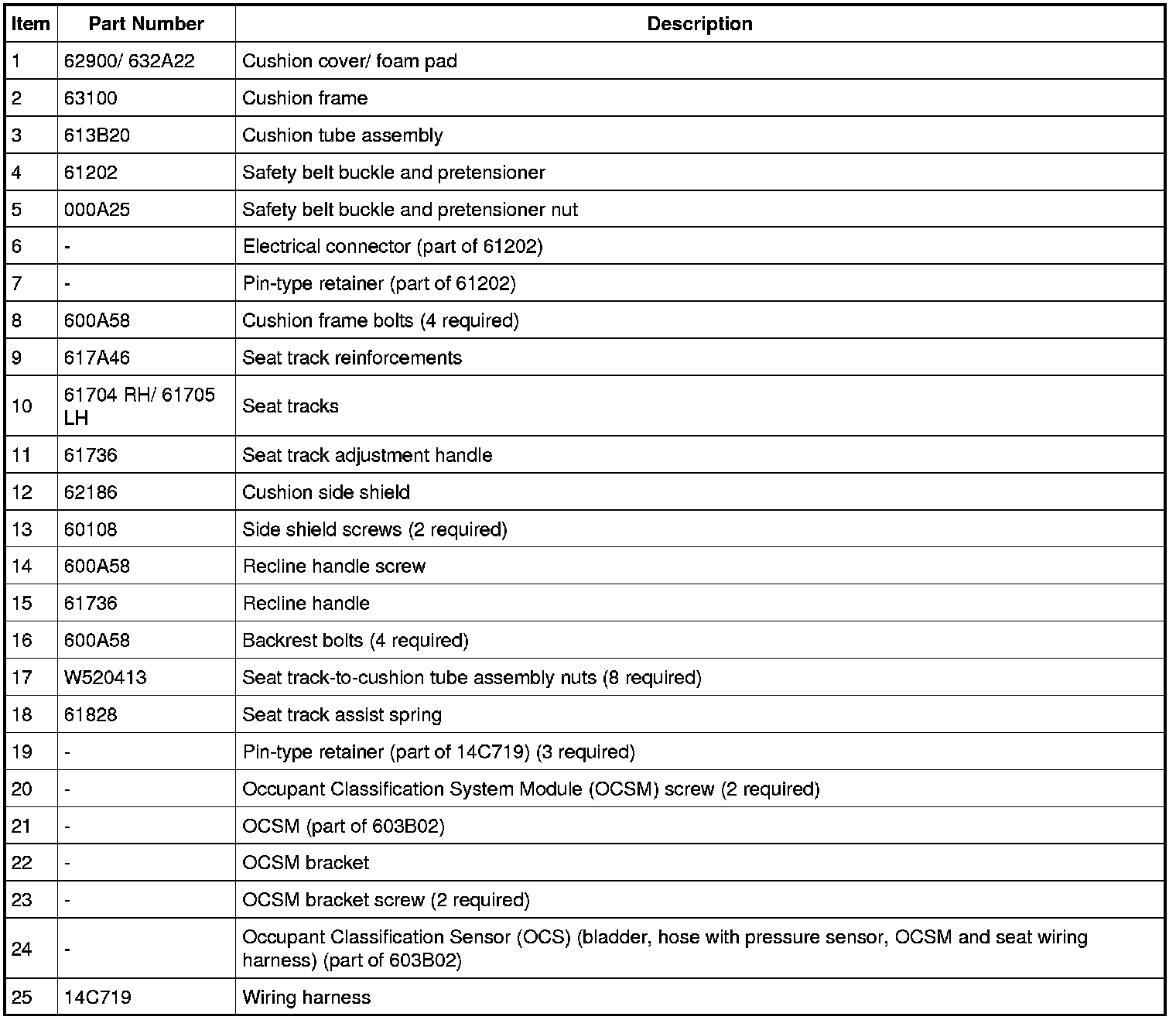

Seat Cushion, Driver, 40 Percent

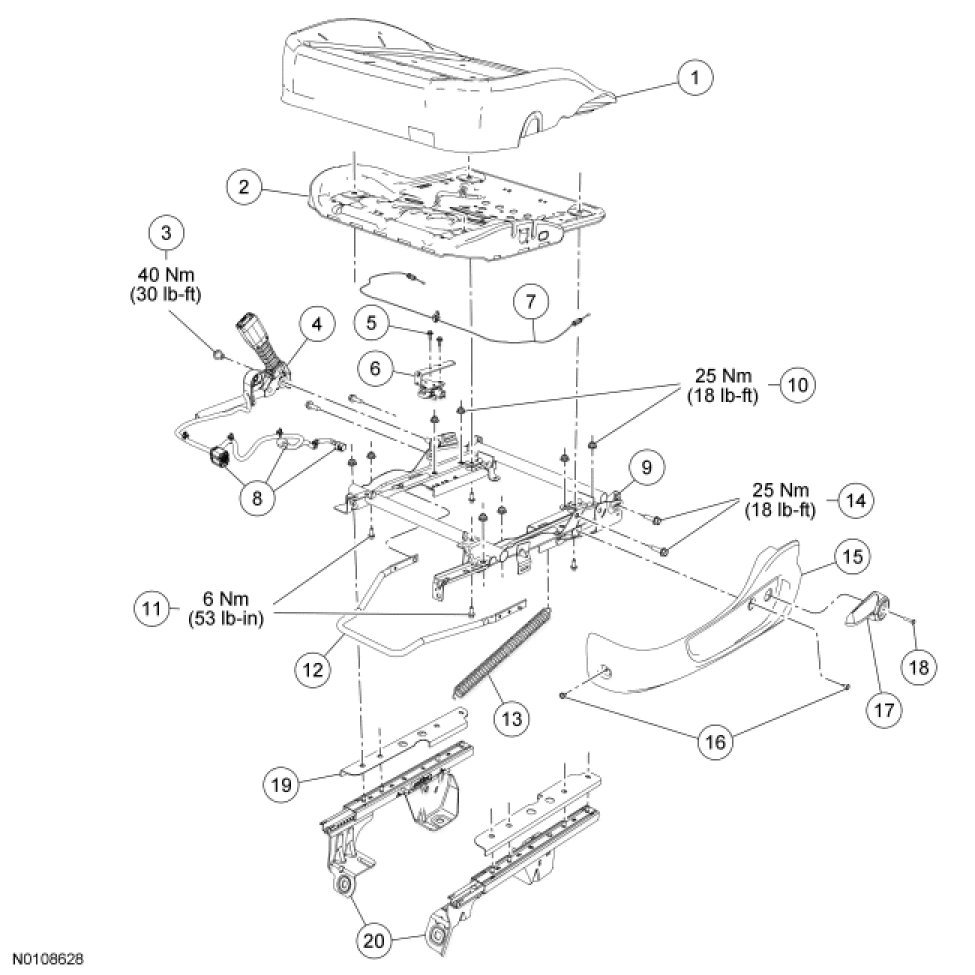

Seat Cushion, Driver, 60 Percent

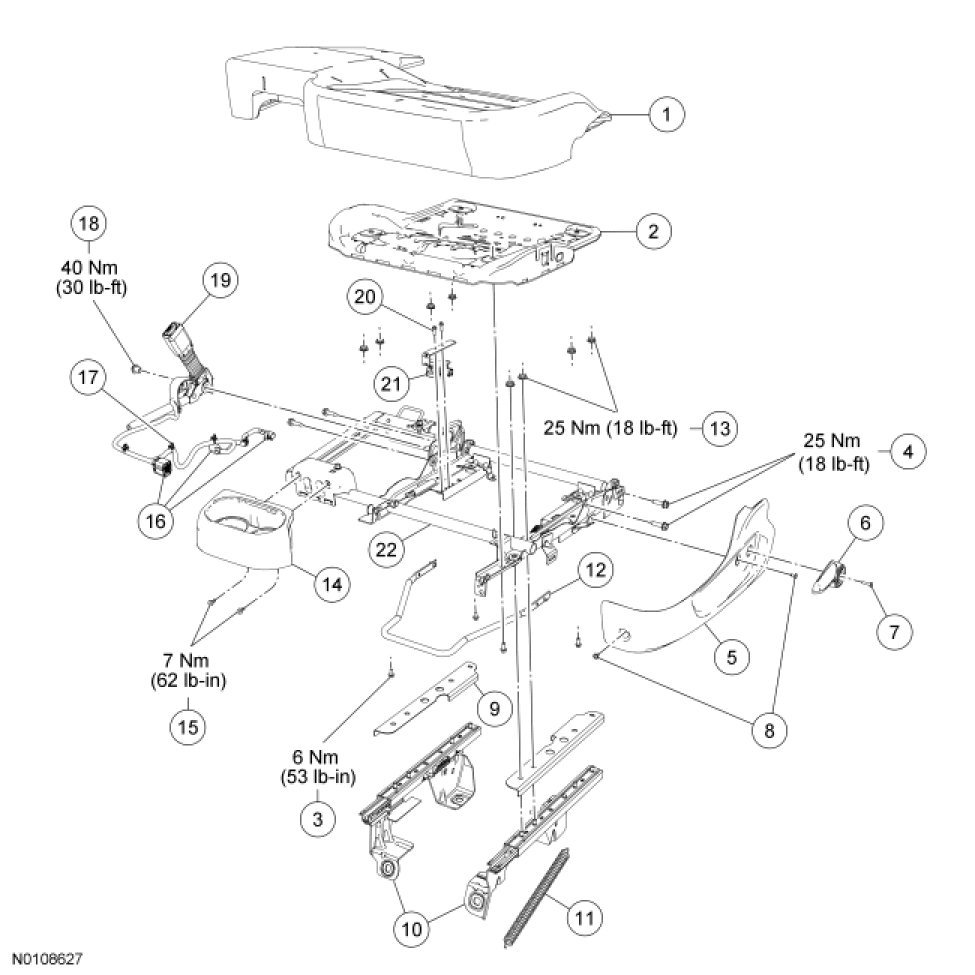

Seat Cushion, Passenger

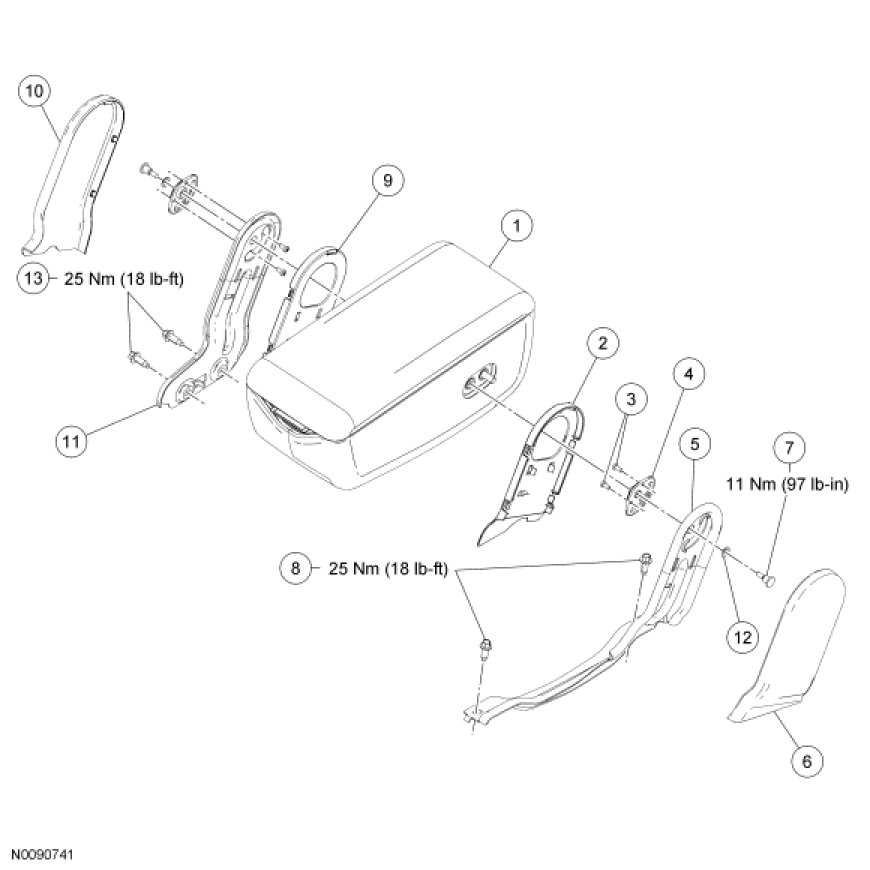

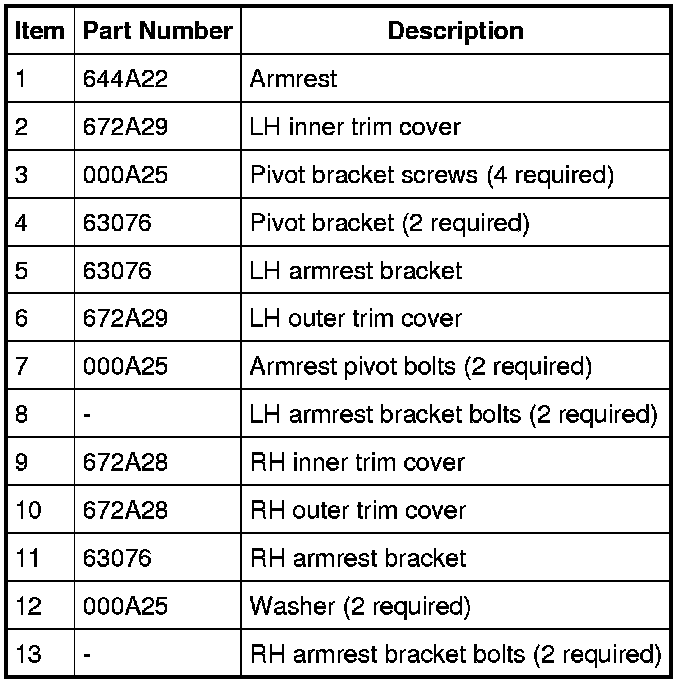

Seat Armrest, 60 Percent
