Function Selector Switch

Function Selector Switch









Removal and Installation

1. Remove the climate control assembly. For additional information, refer to Climate Control Assembly Climate Control Assembly.

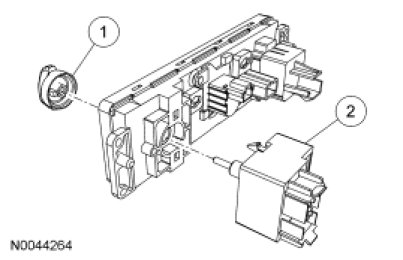

2. Gently pull and remove the function selector switch knob.

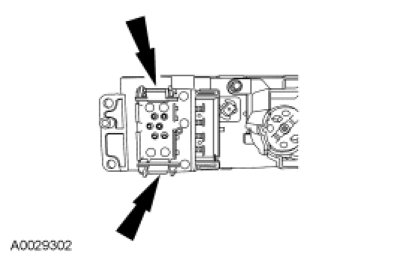

3. Release the clips and remove the function selector switch.





4. To install, reverse the removal procedure.
