Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor









Removal and Installation

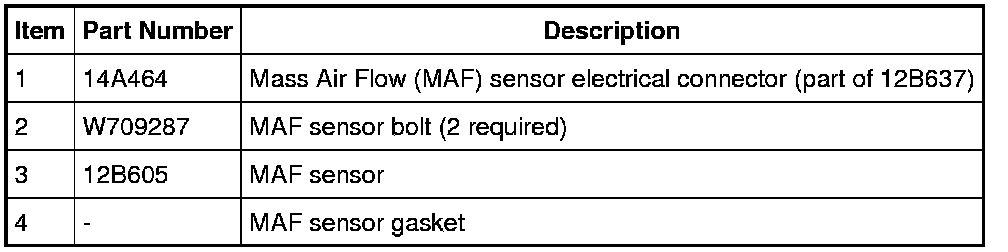

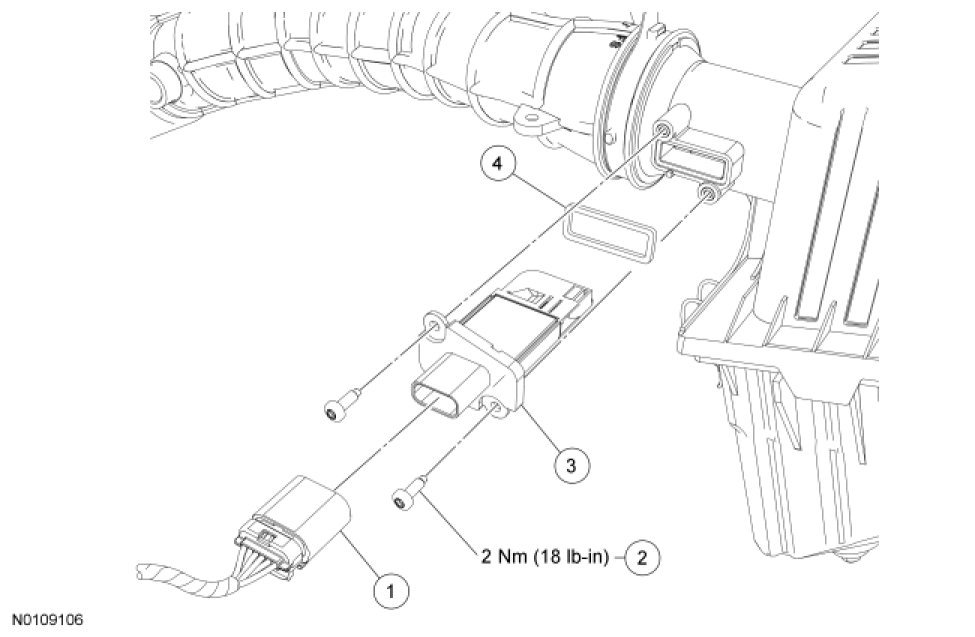

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the 2 bolts, the MAF sensor and discard the gasket.
- To install, tighten to 2 Nm (18 lb-in).

3. NOTICE: Do not tamper with the Mass Air Flow (MAF) sensing elements located in the airflow bypass. Tampering may result in failure.

NOTE: The MAF sensor module and body are calibrated and installed as a unit.

To install, reverse the removal procedure.

- Install a new gasket.
