Engine Temperature Sensor: Service and Repair

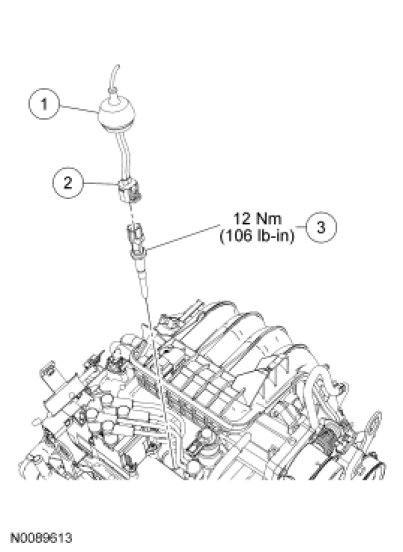

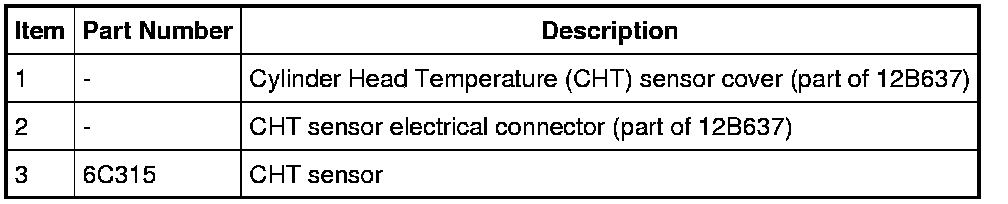

Cylinder Head Temperature (CHT) Sensor - 2.3L









Removal and Installation

1. Pull back the Cylinder Head Temperature (CHT) sensor cover and disconnect the electrical connector.

2. Remove the CHT sensor.
- To install, tighten to 12 Nm (106 lb-in).

3. To install, reverse the removal procedure.
