Knock Sensor: Service and Repair

Knock Sensor (KS) - 2.3L









Removal and Installation

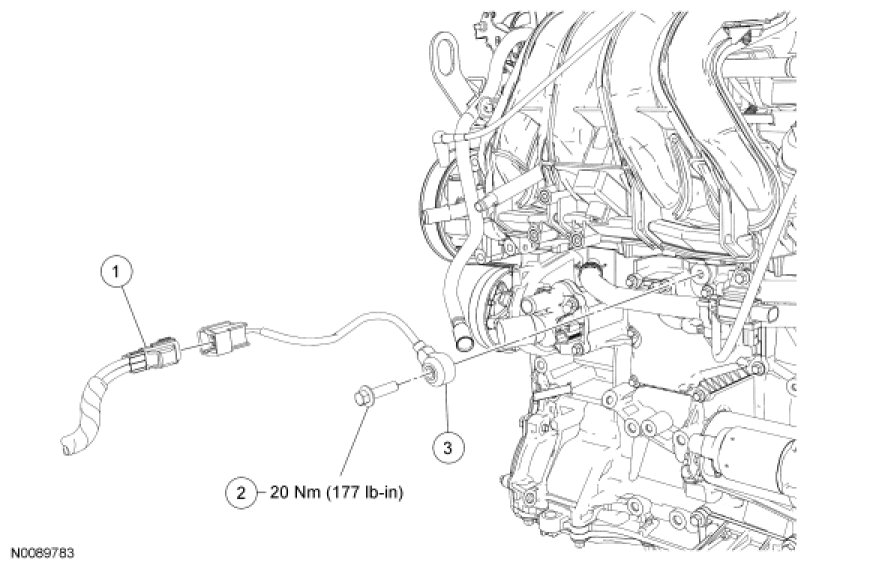

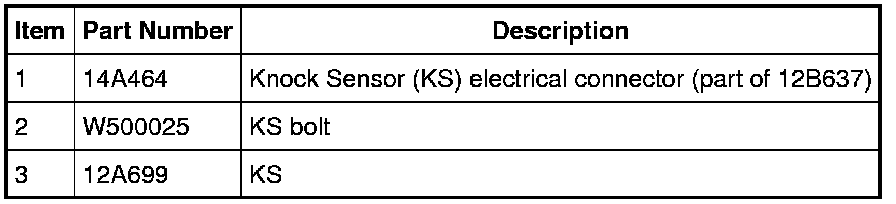

1. Disconnect the Knock Sensor (KS) electrical connector.

2. NOTE: The KS is a one-time-use item and, if serviced, a new KS must be installed.

Remove the bolt and remove and discard the KS.

- To install, tighten to 20 Nm (177 lb-in).

3. To install, reverse the removal procedure.
- Install a new KS.
