Timing Cover

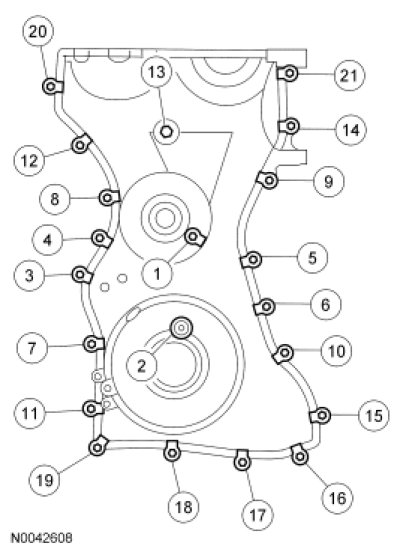

Install the front cover. Tighten the 21 bolts in the sequence shown in 3 stages.
Stage 1: Tighten the seventeen 8-mm bolts and the stud bolt to 10 Nm (89 lb-in).
Stage 2: Tighten the 10-mm bolt to 25 Nm (18 lb-ft).
Stage 3: Tighten the two 13-mm bolts to 48 Nm (35 lb-ft).
