Subframe: Service and Repair

Subframe Bushings

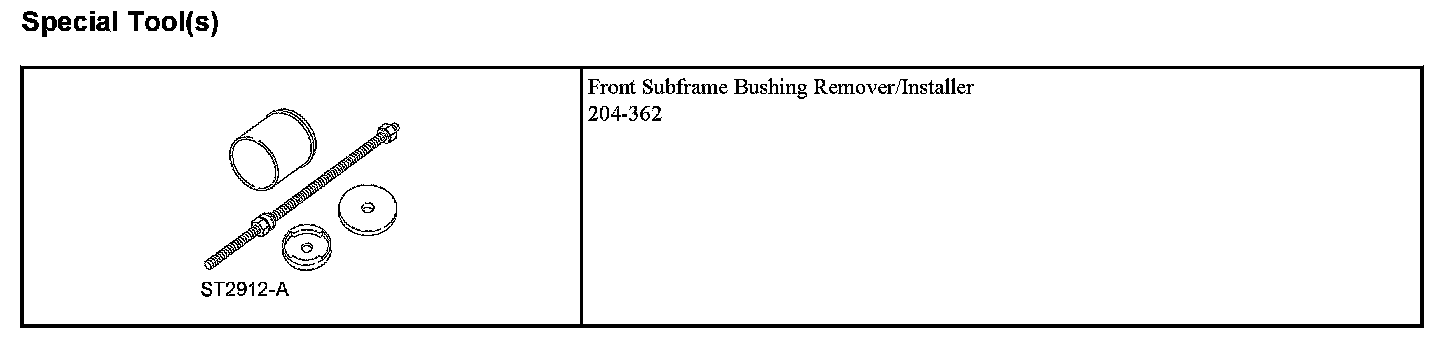

Special Tool(s):

Removal

1. Remove the front subframe. For additional information, refer to Subframe - Front.

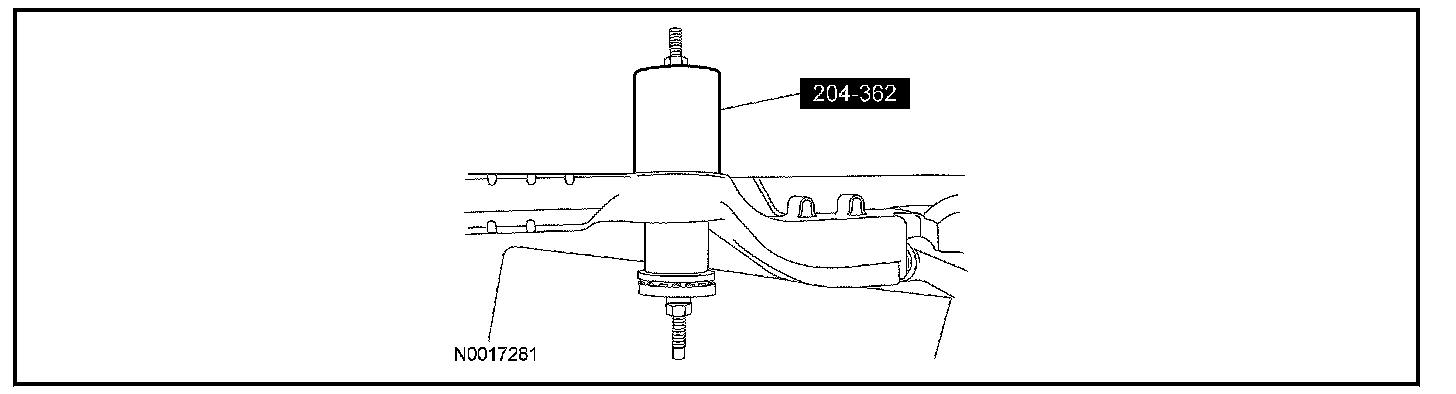

2. Assemble the Front Subframe Bushing Remover/Installer to the front subframe.







3. Press out the subframe bushing.

Installation

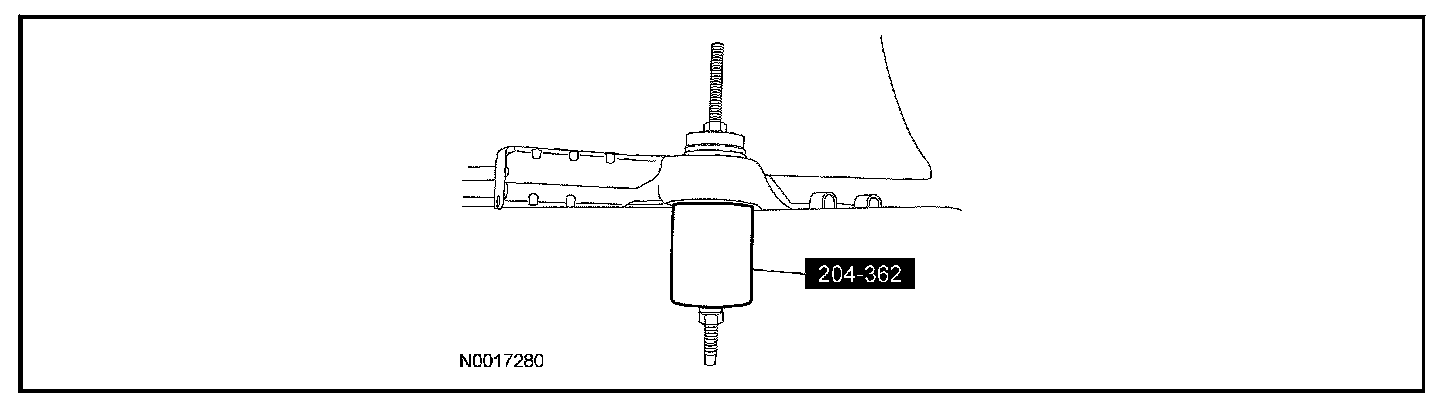

1. Assemble the Front Subframe Bushing Remover/Installer to the front subframe with the new subframe bushing.







2. Align the subframe bushing to the front subframe.

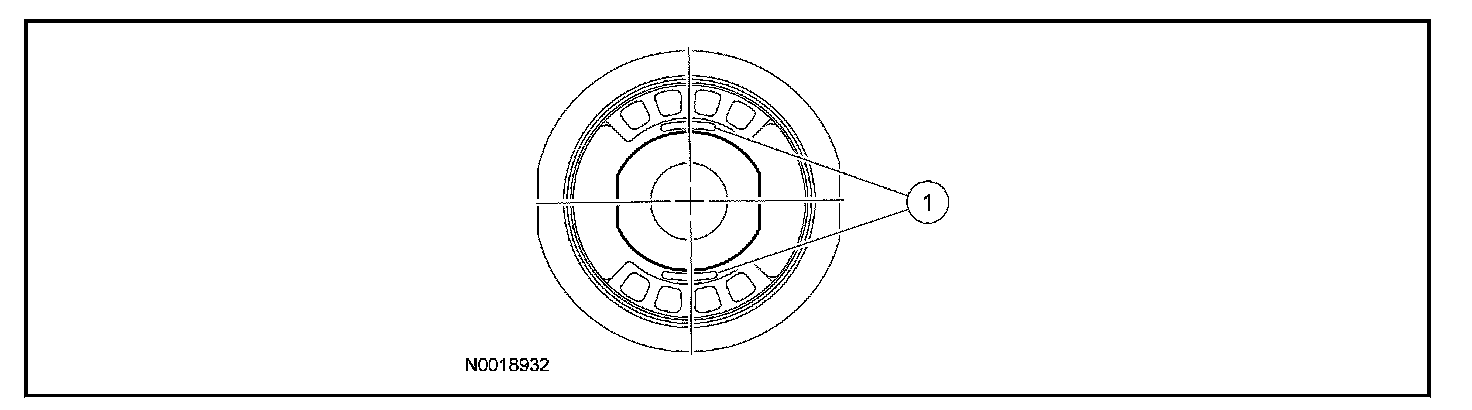

1. Align the subframe bushing so that the voids are oriented in the fore-aft position.







3. Press the new subframe bushing into the front subframe.
4. Install the front subframe. For additional information, refer to Subframe - Front.
