C228B HVAC Module, DATC
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

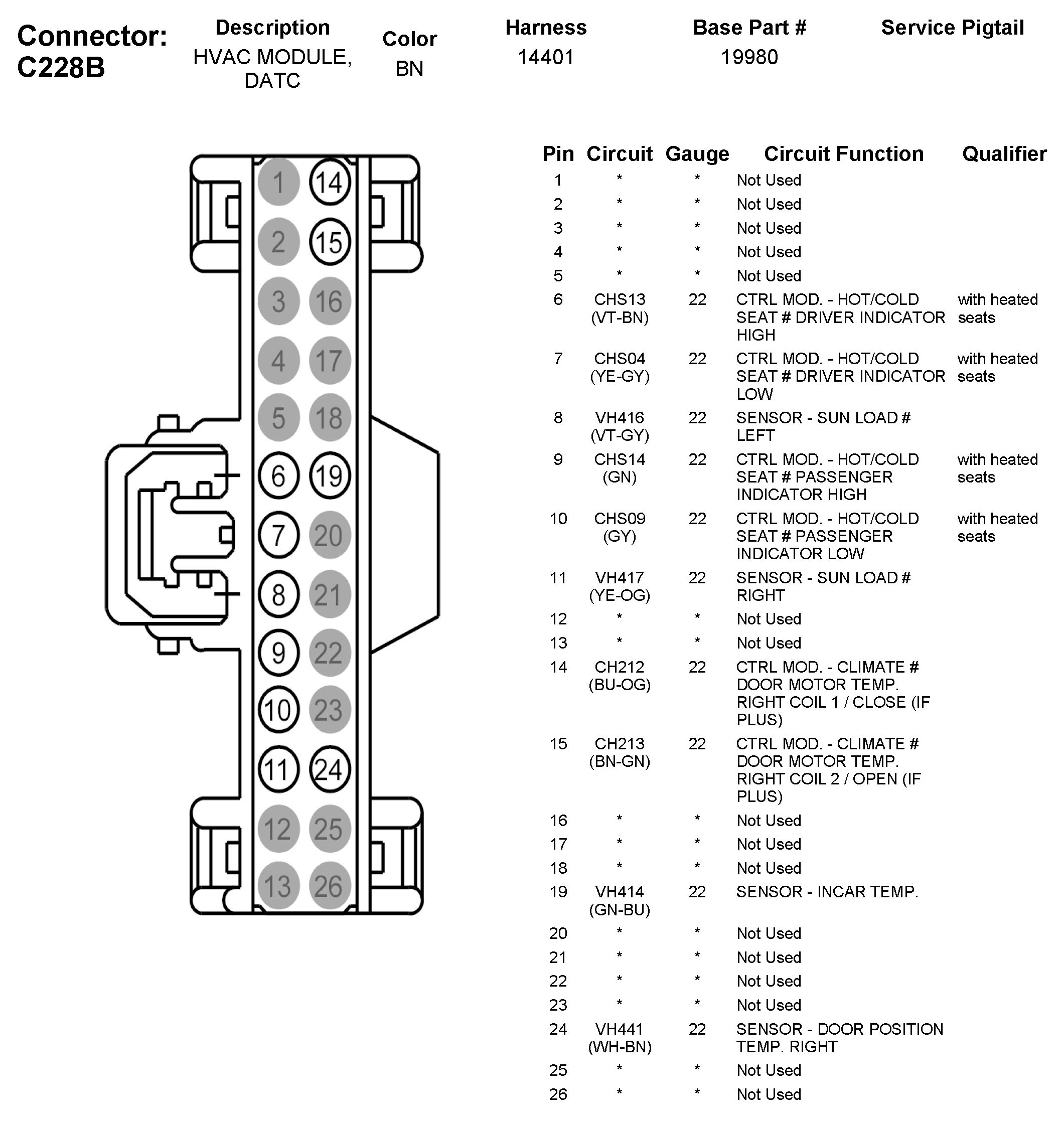

C228B HVAC Module, DATC
