Utility Storage Compartment

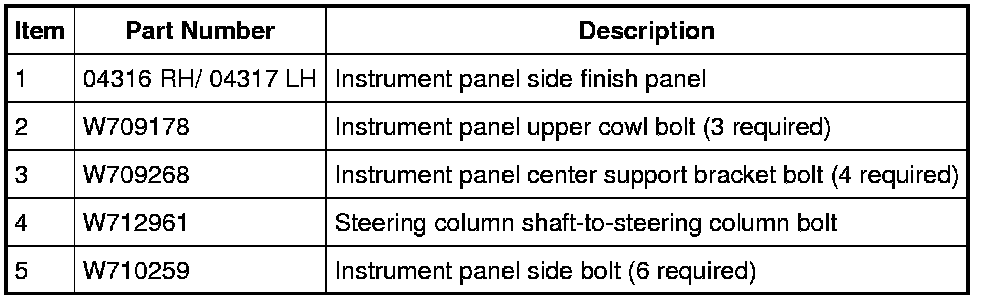

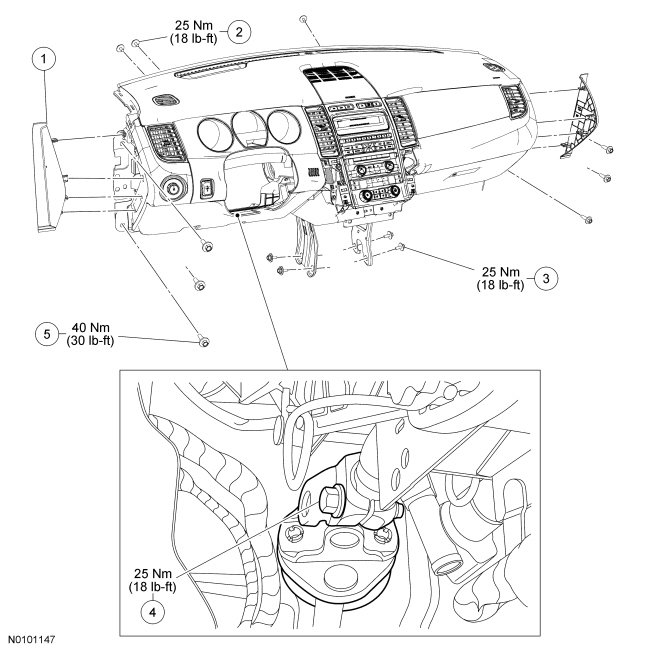

Instrument Panel - Exploded View

Instrument Panel Trim Panel and Fasteners

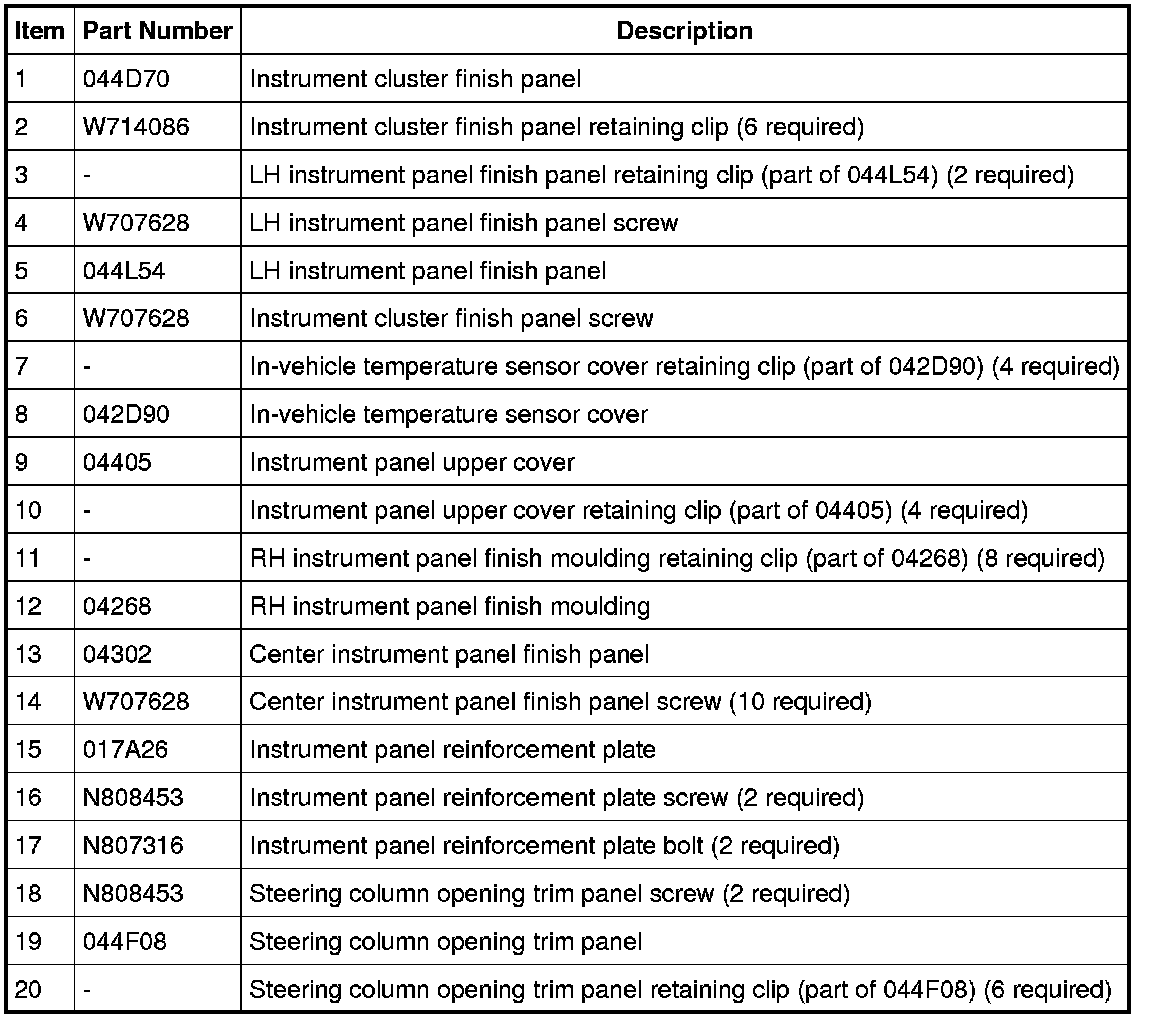

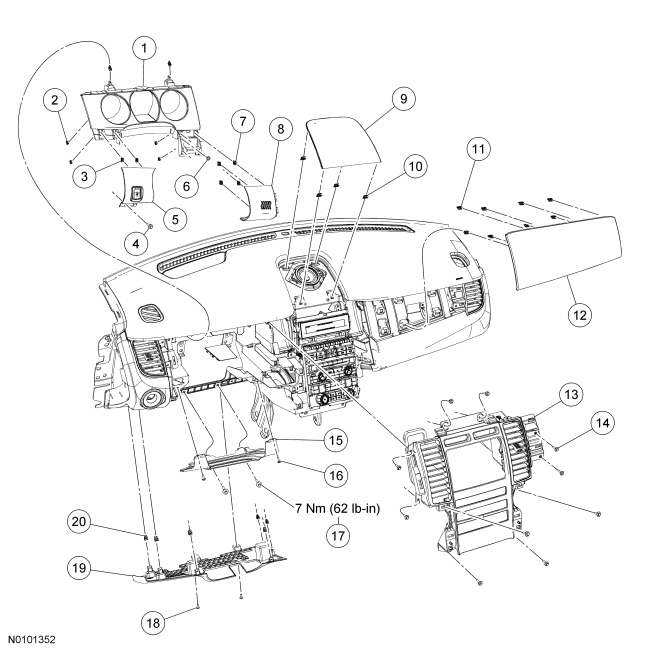

Instrument Panel Finish and Trim Panels

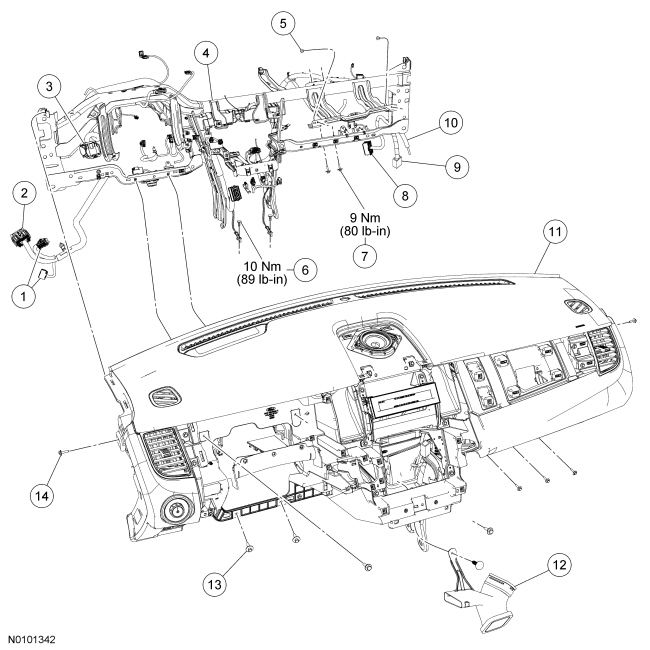

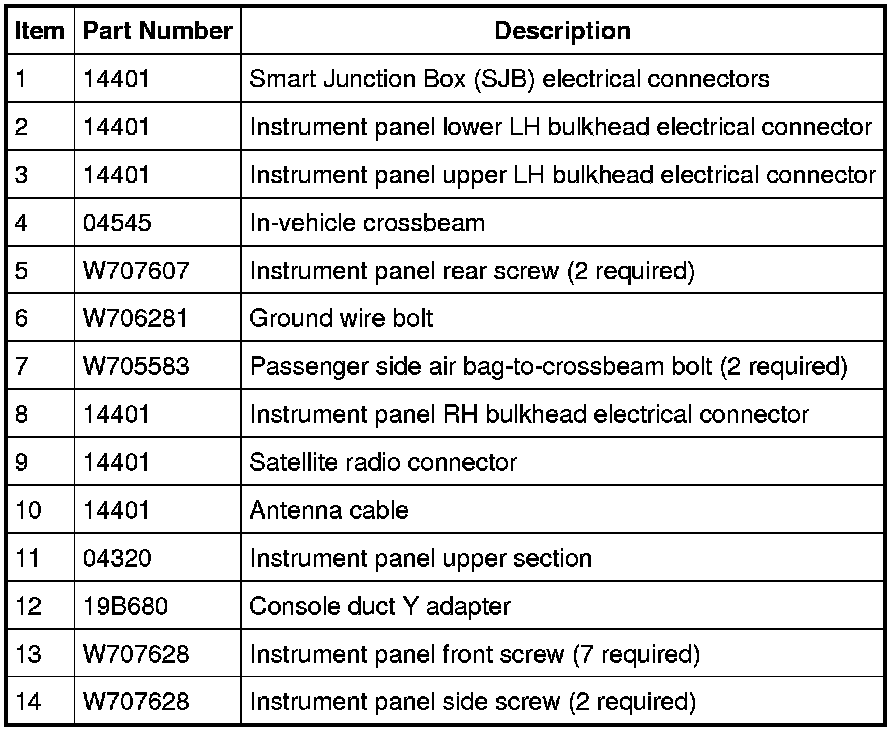

Instrument Panel Upper Section

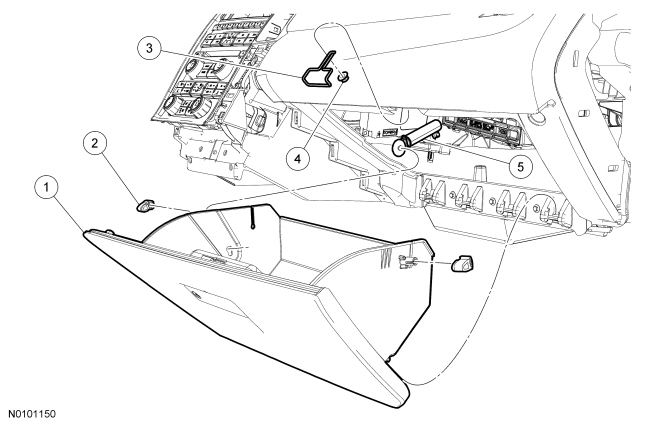

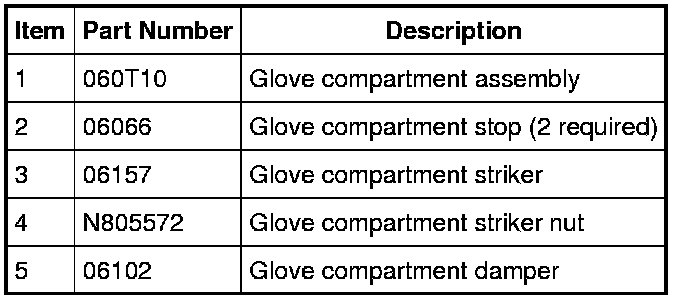

Glove Compartment
