Ignition switch: Schematic

WARNING: This page is about a different car, the 2011 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

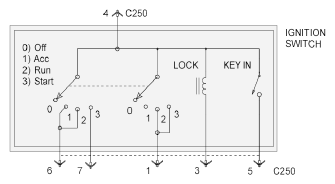

Fig 1: Ignition Switch - Schematic
G07335216Courtesy of FORD MOTOR CO.
