Master window control switch: Schematic

WARNING: This page is about a different car, the 2011 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

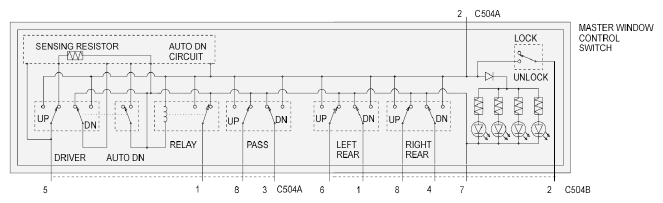

Fig 1: Master Window Control Switch - Schematic
G07335224Courtesy of FORD MOTOR CO.
