Exterior Mirror

Exterior Mirror

Removal and Installation

NOTE: Do not remove the exterior mirror assembly when repairing an individual part. Individual components can be installed without removing the exterior mirror.

1. Remove the front door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

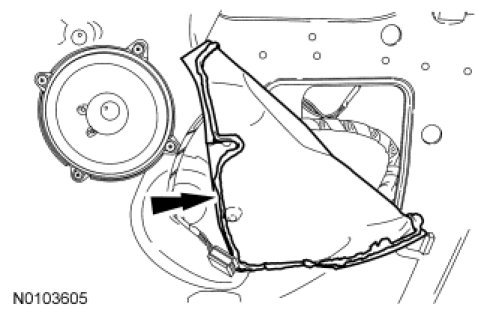

2. Pull back the water shield to gain access to the exterior mirror electrical connector.





3. NOTE: The exterior mirror electrical connector is located inside the door.

Disconnect the exterior mirror electrical connector.

4. Remove the 3 exterior mirror bolts.
- To install, tighten to 6 Nm (53 lb-in).

5. Pull the mirror straight outward to disconnect pushpin retainer and remove the exterior mirror.

6. To install, reverse the removal procedure.
